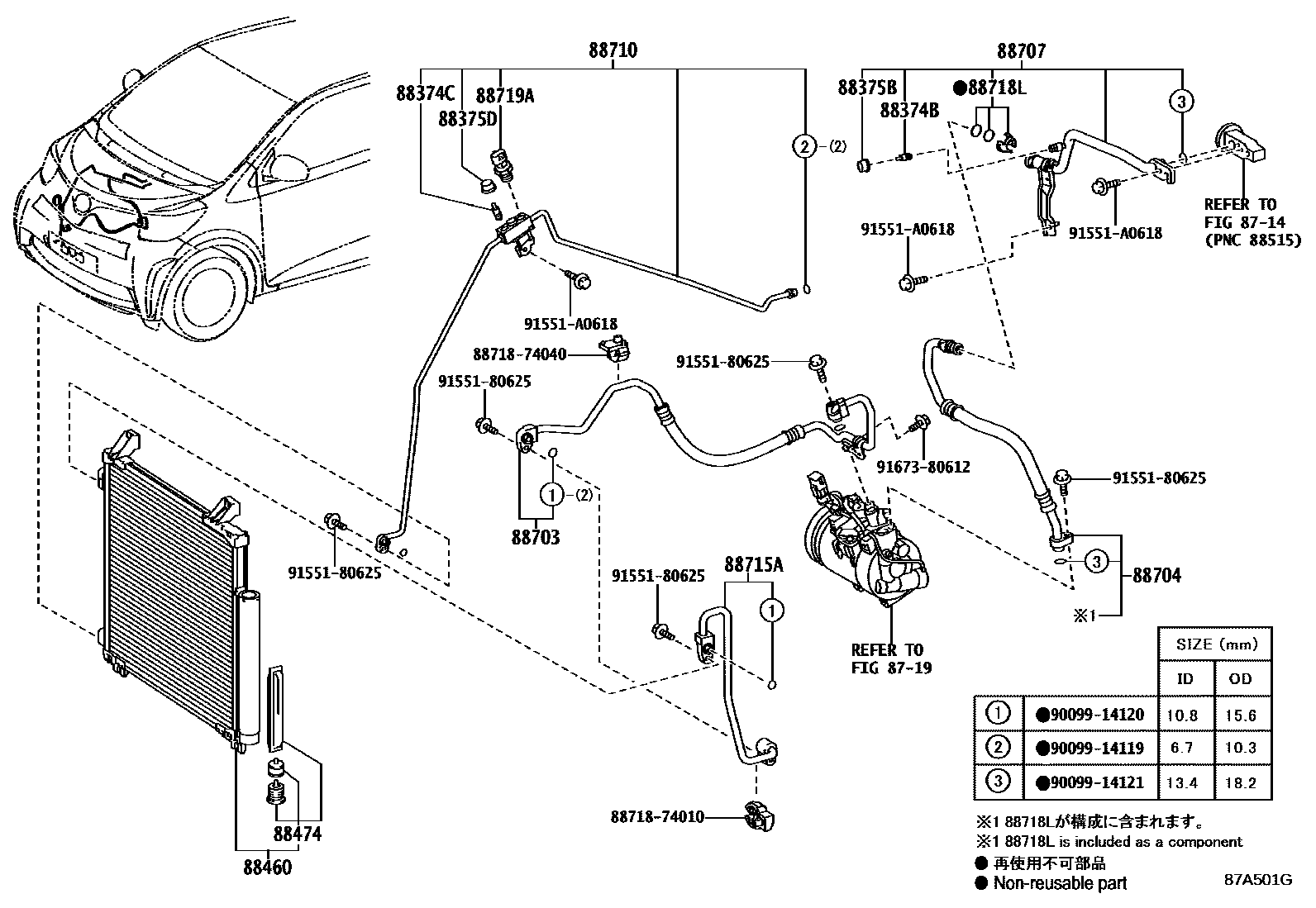

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iKGJ10,NGJ10,NUJ10200811-201405

FRONT AIR CONDITIONER-WITHOUT

88374CVALVE, SERVICE, NO.2

main88374-30010iKGJ10,NGJ10,NUJ10200811-201405

FRONT AIR CONDITIONER-WITHOUT

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iKGJ10,NGJ10,NUJ10200811-201405

FRONT AIR CONDITIONER-WITHOUT

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iKGJ10,NGJ10,NUJ10200811-201405

FRONT AIR CONDITIONER-WITHOUT

88460CONDENSER ASSY, COOLER

main88460-74010iKGJ10,NGJ10,NUJ10¥48,600200811-201405

FRONT AIR CONDITIONER-WITHOUT

88474DRYER, COOLER

main88474-17010iKGJ10,NGJ10,NUJ10200811-201405

FRONT AIR CONDITIONER-WITHOUT

88703HOSE SUB-ASSY, DISCHARGE

main88703-74010iKGJ10¥15,200200811-201405

FRONT AIR CONDITIONER-WITHOUT

main88703-74021iNUJ10200811-201205

FRONT AIR CONDITIONER-WITHOUT

main88703-74030iNGJ10¥15,300200905-201104

FRONT AIR CONDITIONER-WITHOUT

sub88703-74031¥15,300

main88703-74031iNGJ10¥15,300201105-201405

FRONT AIR CONDITIONER-WITHOUT

88704HOSE SUB-ASSY, SUCTION

main88704-74010iKGJ10¥14,300200811-201405

FRONT AIR CONDITIONER-WITHOUT

main88704-74020iNUJ10200811-201205

FRONT AIR CONDITIONER-WITHOUT

main88704-74030iNGJ10¥27,600200905-201405

FRONT AIR CONDITIONER-WITHOUT

88707PIPE SUB-ASSY, SUCTION

main88707-74010iKGJ10¥9,800200811-201405

FRONT AIR CONDITIONER-WITHOUT

main88707-74020iNUJ10200811-201102

FRONT AIR CONDITIONER-WITHOUT

sub88707-74030¥12,400

main88707-74030iNGJ10..N¥12,400200905-201405

FRONT AIR CONDITIONER-WITHOUT

88710TUBE ASSY, AIR CONDITIONER

main88710-74010iKGJ10¥21,000200811-201405

FRONT AIR CONDITIONER-WITHOUT

main88710-74020iNUJ10200811-201205

FRONT AIR CONDITIONER-WITHOUT

main88710-74030iNGJ10¥8,200200905-201405

FRONT AIR CONDITIONER-WITHOUT

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-74010iKGJ10,NGJ10,NUJ10¥6,500200811-201405

FRONT AIR CONDITIONER-WITHOUT

88718LCLAMP, PIPING

main88718-52260iKGJ10,NGJ10,NUJ10¥0200811-201405

FRONT AIR CONDITIONER-WITHOUT

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iKGJ10,NGJ10,NUJ10¥0200811-201405

FRONT AIR CONDITIONER-WITHOUT

8871874010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-74010

8871874040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-74040

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9155180625

main91551-80625¥60

91551A0618

main91551-A0618¥60

9167380612

main91673-80612¥60

23 parts on this diagram · 2 diagrams in section
