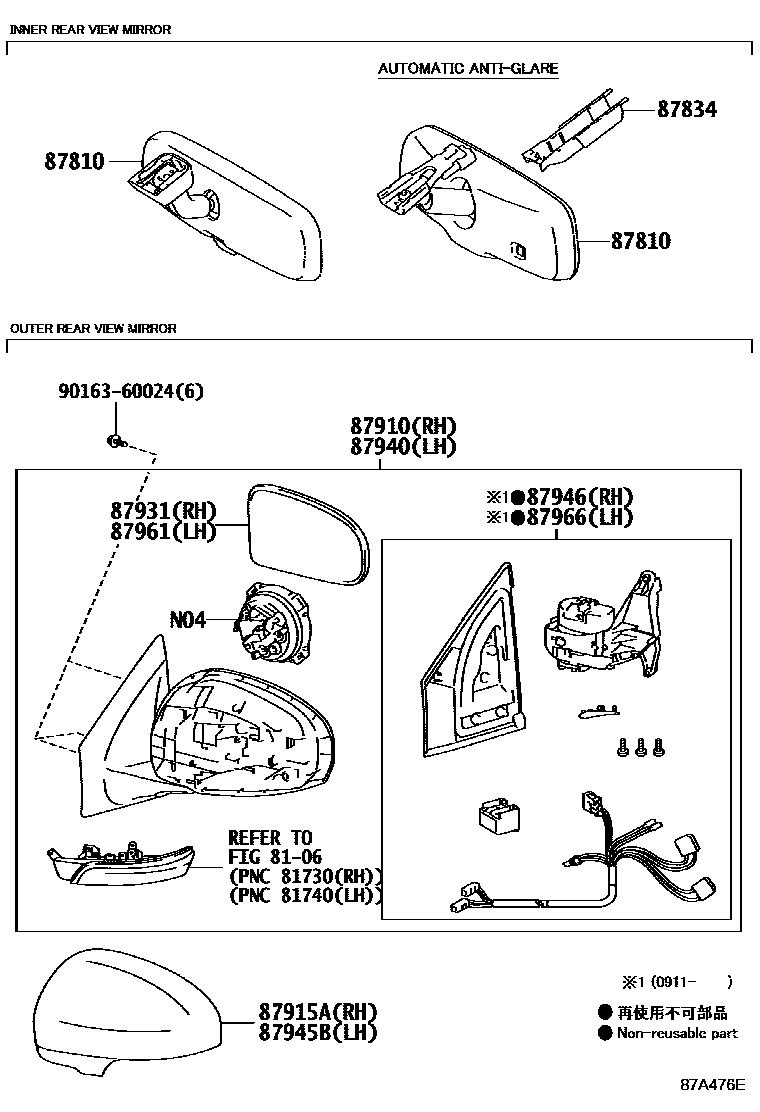

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,SIDE TURN LAMP=LED
NO PAINT REQ.,SIDE TURN LAMP=BULB
NO PAINT REQ.,SIDE TURN LAMP=BULB
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER),SIDE TURN LAMP=LED
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER),SIDE TURN LAMP=LED
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SIDE TURN LAMP=LED
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),SIDE TURN LAMP=BULB
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER),SIDE TURN LAMP=BULB
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SIDE TURN LAMP=BULB
87915ACOVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209 ,2LR
SUPER RED 5,3P0
BRONZE M.M.,4T3
ORANGE ME.,4R8
SILKY GOLD M.M.,5A7
JADE GREEN METALLIC,6V5
GRAYISH BLUE ME.,8R3
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
DK.CHROME METAL,070 ,1F7 ,1G3 ,209 ,3P0 ,4R8 ,4T3 ,8R3 ,9AH
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,SIDE TURN LAMP=LED
NO PAINT REQ.,SIDE TURN LAMP=BULB
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER),SIDE TURN LAMP=LED
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),SIDE TURN LAMP=BULB
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),SIDE TURN LAMP=BULB
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SIDE TURN LAMP=BULB
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
BRONZE M.M.,4T3
ORANGE ME.,4R8
SILKY GOLD M.M.,5A7
JADE GREEN METALLIC,6V5
GRAYISH BLUE ME.,8R3
BLUE ME.,8T7
DEEP AMETHYST M.M.,2LT ,9AH
87946RETRACTOR, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)
87966RETRACTOR, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER)
9016360024
main90163-60024
12 parts on this diagram · 1 diagram in section
