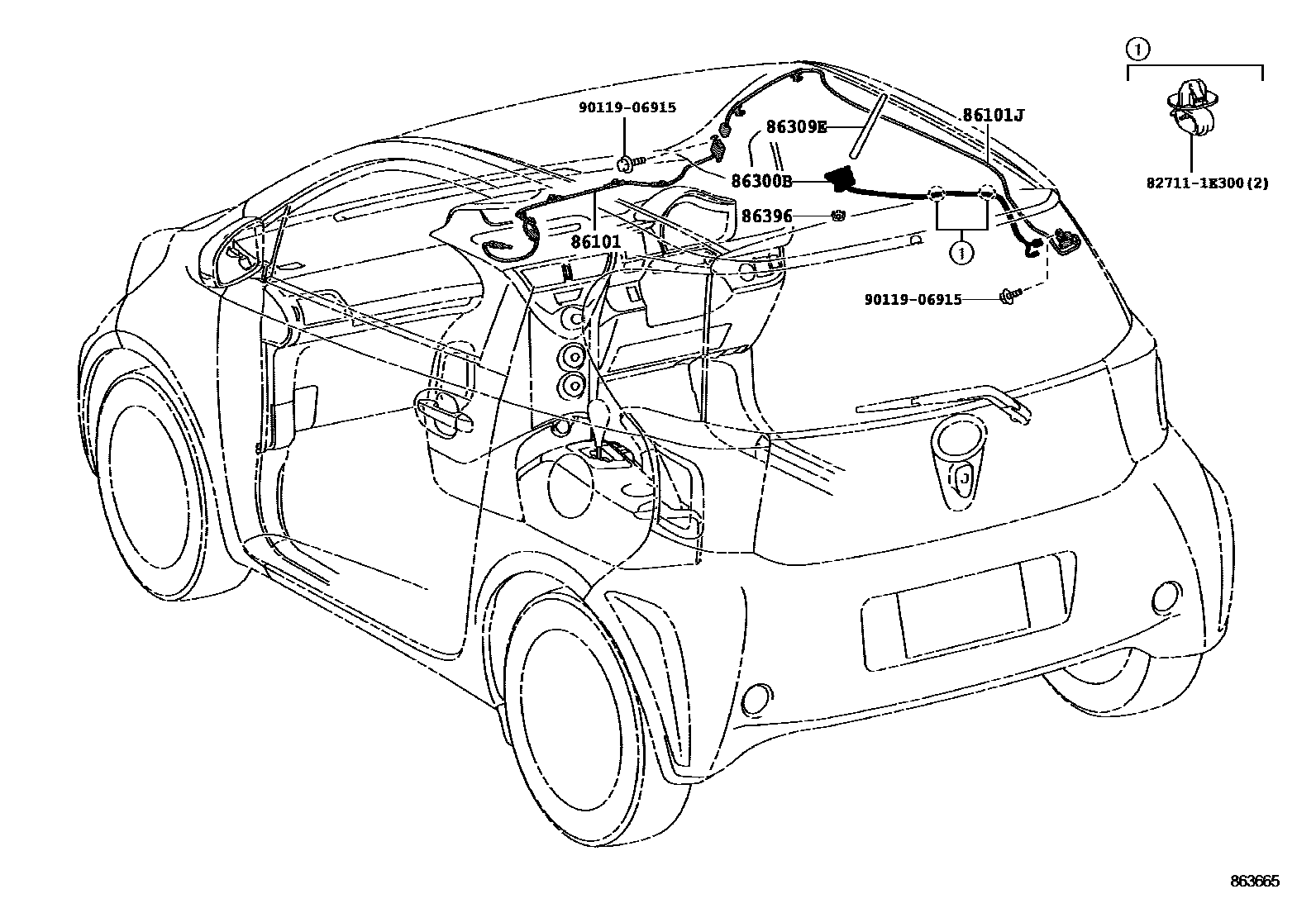

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-74020iKGJ10,NUJ10..LHD200811-200902

sub86101-74021¥4,960

main86101-74021iKGJ10,NGJ10,NUJ10..LHD¥4,960200903-201201

main86101-74022iKGJ10,NGJ10,NUJ10..LHD201201-201405

main86101-74030iKGJ10,NGJ10,NUJ10..RHD¥5,800200811-200907

sub86101-74031¥5,800

main86101-74031iKGJ10,NGJ10,NUJ10..RHD¥5,800200908-201201

main86101-74032iKGJ10,NGJ10..RHD¥5,800201201-201405

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-74010iKGJ10,NGJ10,NUJ10¥5,800200811-201001

sub86101-74011¥5,800

main86101-74011iKGJ10,NGJ10,NUJ10¥5,800201002-201007

sub86101-74012¥5,800

main86101-74012iKGJ10,NGJ10,NUJ10¥5,800201008-201201

main86101-74013iKGJ10,NGJ10,NUJ10¥1,040201201-201405

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-74010iKGJ10,NGJ10,NUJ10200811-201111

main86300-74011iKGJ10,NGJ10,NUJ10201111-201405

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080iKGJ10,NGJ10,NUJ10¥2,060200811-201405

86396NUT, ANTENNA

main86396-20040iKGJ10,NGJ10,NUJ10¥470200811-201111

main86396-47010iKGJ10,NGJ10,NUJ10¥430201111-201405

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300¥70

9011906915

main90119-06915¥60

7 parts on this diagram · 1 diagram in section
