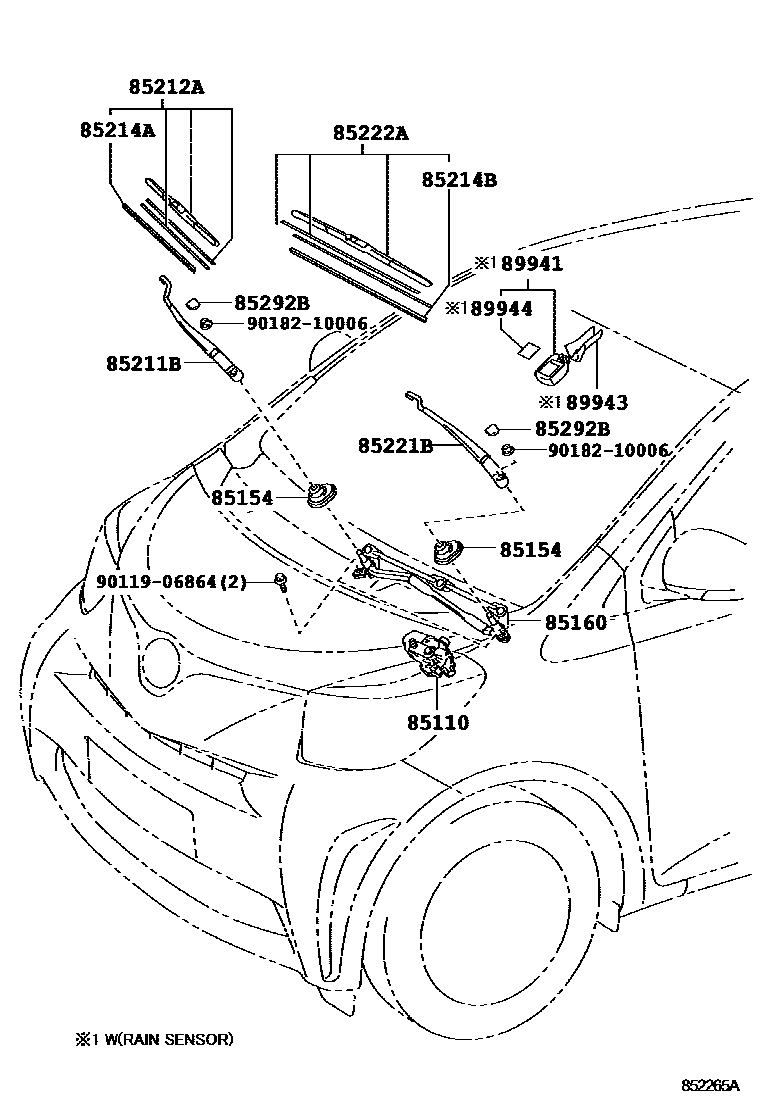

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-74020iKGJ10,NGJ10,NUJ10..LHD200811-201405

main85110-74040iKGJ10,NGJ10,NUJ10..RHD200811-201405

85154PACKING, FRONT WIPER SHAFT

main85154-74010×2iKGJ10,NGJ10,NUJ10200811-201405

85160LINK ASSY, WINDSHIELD WIPER

main85150-74020iKGJ10,NGJ10,NUJ10..LHD200811-201405

main85150-74030iKGJ10,NGJ10,NUJ10..RHD200811-201405

85211BARM, FRONT WIPER, RH

main85211-74020iKGJ10,NGJ10,NUJ10..RHD200811-201405

main85211-74030iKGJ10,NGJ10,NUJ10..LHD200811-201405

85212ABLADE, FR WIPER, RH

main85212-74010iKGJ10,NGJ10,NUJ10..LHD200811-201405

main85222-48140iKGJ10,NGJ10,NUJ10..RHD200811-201405

85214ARUBBER, WIPER, RH

main85214-33180iKGJ10,NGJ10,NUJ10..LHD200811-201405

main85214-53080iKGJ10,NGJ10,NUJ10..RHD200811-201405

85214BRUBBER, WIPER, LH

main85214-33180iKGJ10,NGJ10,NUJ10..RHD200811-201405

main85214-53080iKGJ10,NGJ10,NUJ10..LHD200811-201405

85221BARM, FRONT WIPER, LH

main85221-74010iKGJ10,NGJ10,NUJ10..RHD200811-201405

main85221-74020iKGJ10,NGJ10,NUJ10..LHD200811-201405

85222ABLADE, FR WIPER, LH

main85212-48130iKGJ10,NGJ10,NUJ10..LHD200811-201405

main85222-30590iKGJ10,NGJ10,NUJ10..RHD200811-201405

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iKGJ10,NGJ10,NUJ10200811-201405

89941SENSOR, RAIN

main89941-42010iNGJ10..RHD201205-201405

89943COVER, RAIN SENSOR

main89943-28010iNGJ10..RHD201205-201405

89944TAPE, RAIN SENSOR

main89944-42010iNGJ10..RHD201205-201405

9011906864

main90119-06864

9018210006

main90182-10006

15 parts on this diagram · 2 diagrams in section
