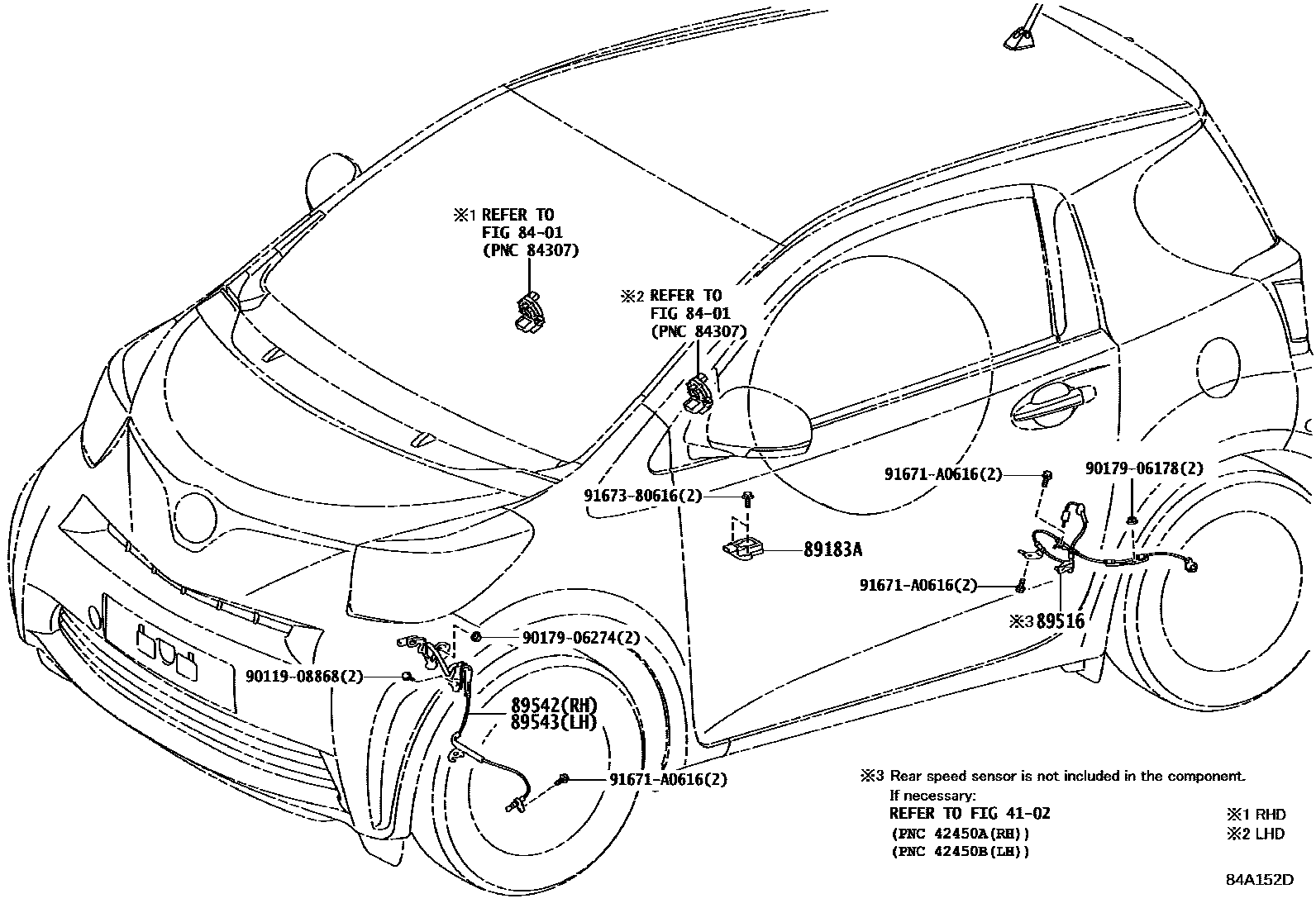

ABS & VSC

4102

8401

89183ASENSOR, YAWRATE

main89183-48030iKGJ10,NGJ10,NUJ10200811-201405

89516WIRE, SKID CONTROL SENSOR

main89516-74010iKGJ10,NGJ10,NUJ10200811-201405

RH

main89516-74020iKGJ10,NGJ10,NUJ10200811-201405

LH

89542SENSOR, SPEED, FRONT RH

main89542-74010iKGJ10,NGJ10,NUJ10200811-201405

89543SENSOR, SPEED, FRONT LH

main89543-74010iKGJ10,NGJ10,NUJ10200811-201405

9011908868

main90119-08868

9017906178

main90179-06178

9017906274

main90179-06274

91671A0616

main91671-A0616

9167380616

main91673-80616

11 parts on this diagram · 1 diagram in section
