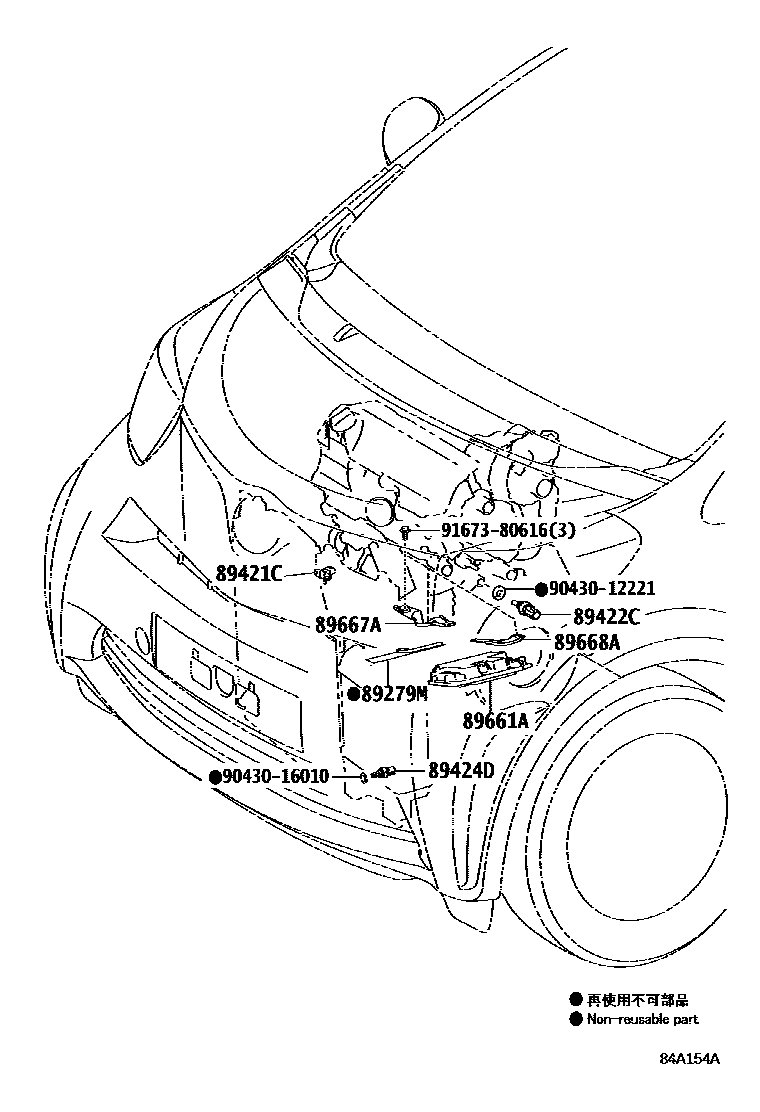

ELECTRONIC CONTROLED DIESEL (ECD)

89279MCOVER

main89279-74010iNUJ10..LHD200811-201205

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200iNUJ10..RHD200811-201205

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iNUJ10200811-201205

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iNUJ10..RHD200811-201205

89661ACOMPUTER, ENGINE CONTROL

main89661-74010iNUJ10..LHD200811-200909

sub89661-74011

main89661-74011iNUJ10..LHD200910-201008

main89661-74020iNUJ10..RHD200811-200909

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)

sub89661-74021

main89661-74021iNUJ10..RHD200910-201003

main89661-74150iNUJ10201008-201205

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-74020iNUJ10..RHD200811-201205

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-74010iNUJ10..RHD200811-201205

9043012221

main90430-12221

9043016010

main90430-16010

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section
