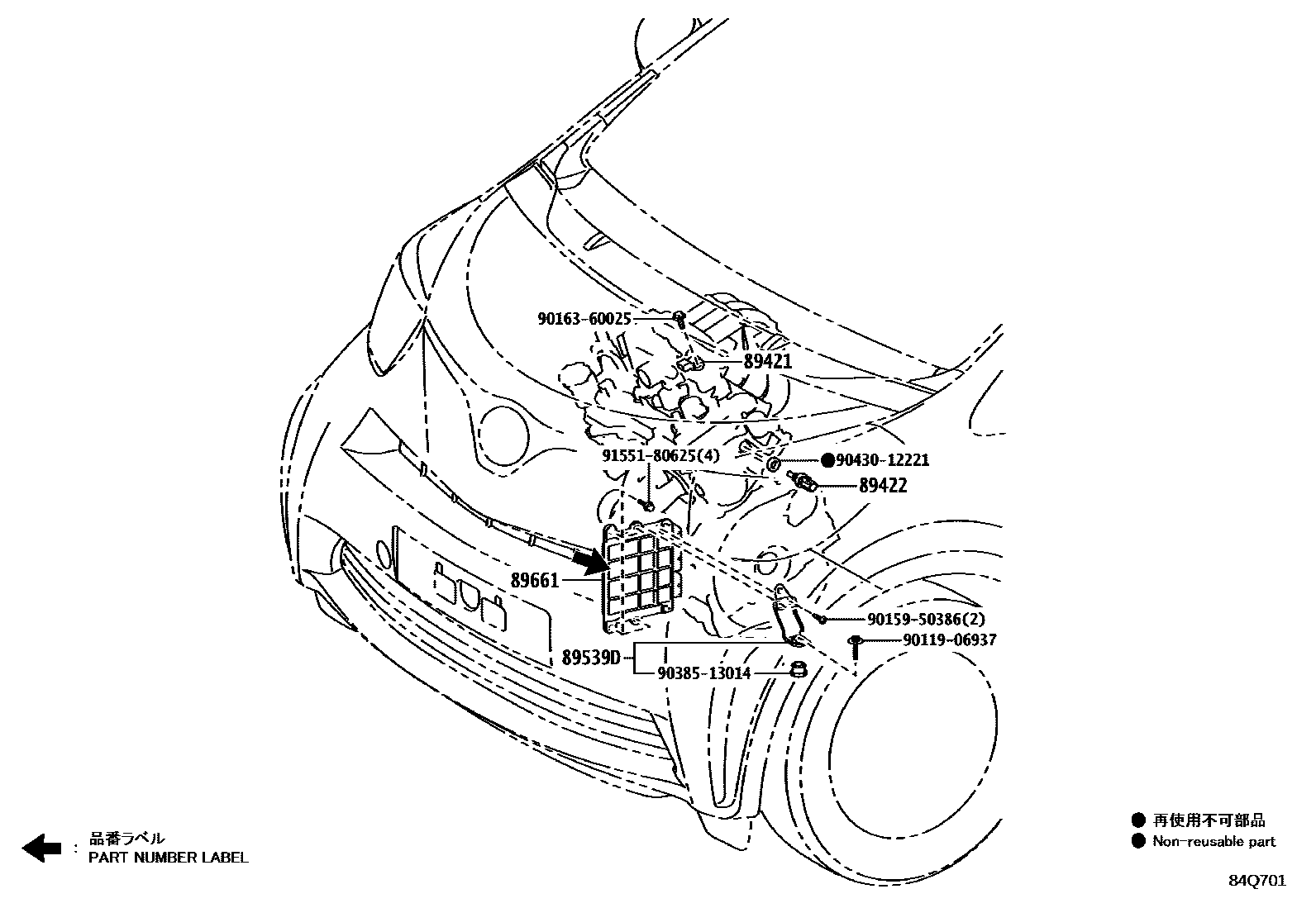

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-52010iKGJ10,NGJ10200811-201405

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iKGJ10,NGJ10200811-201405

89539DBRACKET, COMPUTER

main89539-74010iKGJ10,NGJ10200811-201405

89661COMPUTER, ENGINE CONTROL

main89661-74040iKGJ10..CVFC200811-200908

sub89661-74041

main89661-74041iKGJ10..CVFC200908-201005

main89661-74050iKGJ10..5F..N200811-201005

main89661-74060iKGJ10..R200811-201005

main89661-74070iNGJ10..6F200905-201005

main89661-74080iNGJ10..CVFC200905-201005

main89661-74110iNGJ10..6F201005-201011

sub89661-74111

main89661-74111iNGJ10..6F201012-201205

main89661-74120iNGJ10..CVFC201005-201011

sub89661-74121

main89661-74121iNGJ10..CVFC201012-201205

main89661-74160iKGJ10..CVFC201005-201011

sub89661-74161

main89661-74161iKGJ10..CVFC201012-201101

P/N LABEL=8966174161

main89661-74170iKGJ10..5F..N201005-201011

sub89661-74171

main89661-74171iKGJ10..5F..N201012-201205

main89661-74180iKGJ10..R201005-201011

sub89661-74181

main89661-74181iKGJ10..R201012-201305

main89661-74240iNGJ10..R201205-201305

main89661-74260iKGJ10..CVFC201101-201305

P/N LABEL=8966174260

main89661-74340iNGJ10..R201305-201405

main89661-74360iNGJ10..N201305-201405

main89661-74370iKGJ10..R201305-201405

main89661-74390iKGJ10..N201305-201405

main89661-74440iNGJ10..N201205-201305

9011906937

main90119-06937

9015950386

main90159-50386

9016360025

main90163-60025

9038513014

main90385-13014

9043012221

main90430-12221

9155180625

main91551-80625

10 parts on this diagram · 2 diagrams in section
