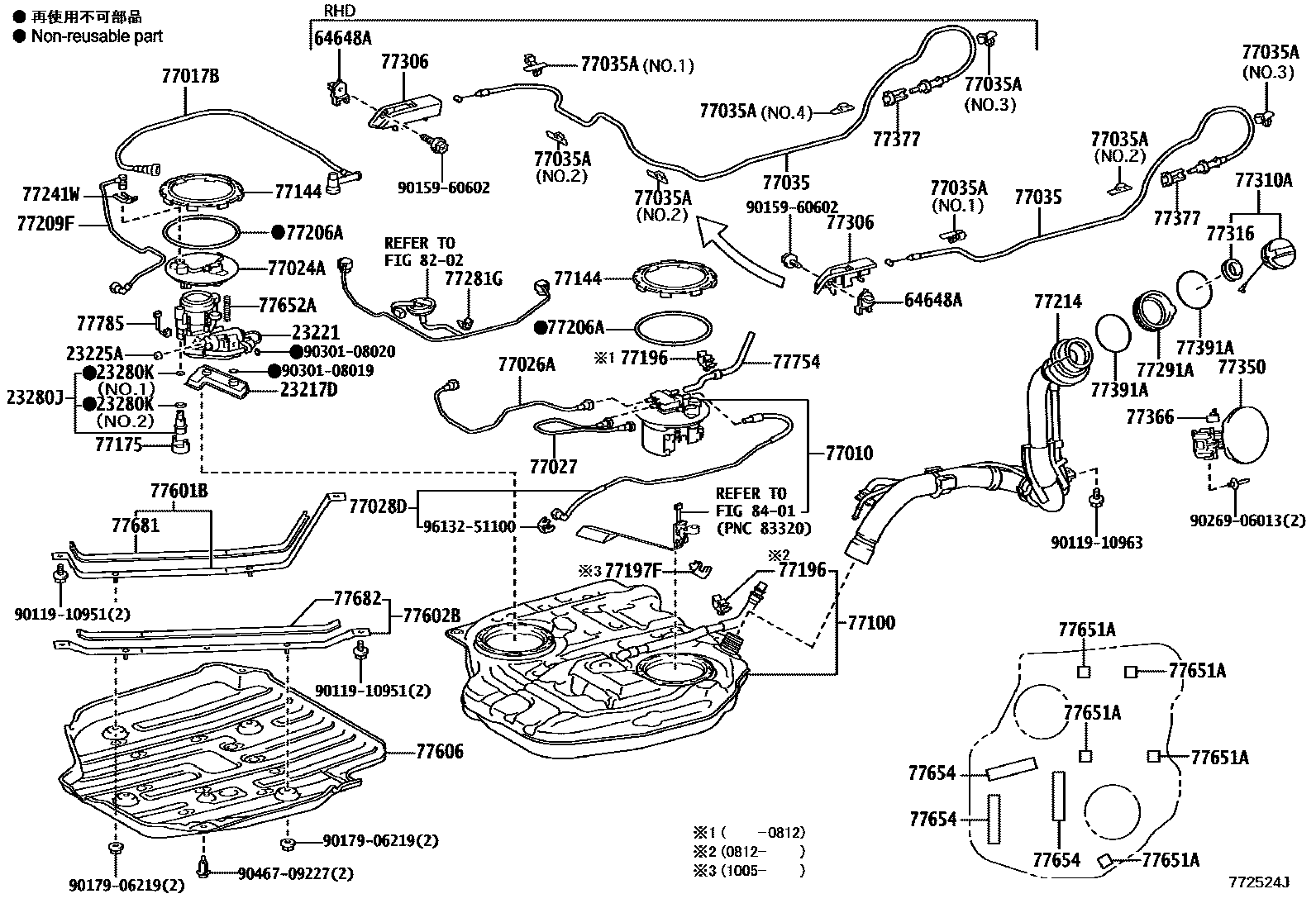

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE

23217DFILTER, FUEL PUMP

main23217-40010i1KRFE..KGJ10¥1,460200811-200903

sub23217-40011¥1,460

main23217-40011i1KRFE,1NRFE..KGJ10,NGJ10¥1,460200904-201405

23221PUMP, FUEL

main23221-40010i1KRFE,1NRFE..KGJ10,NGJ10¥37,200200811-201201

sub23221-40011¥37,200

sub77785-74011¥1,390

main23221-40011i1KRFE,1NRFE..KGJ10,NGJ10¥37,200201201-201405

23225ASPACER, FUEL PUMP

main23225-21020i1KRFE,1NRFE..KGJ10,NGJ10¥120200811-201405

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1KRFE,1NRFE..KGJ10,NGJ10¥6,000200811-201405

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1KRFE,1NRFE..KGJ10,NGJ10¥140200811-201405

NO.1

main90301-15024i1KRFE,1NRFE..KGJ10,NGJ10¥140200811-201405

NO.2

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iKGJ10,NGJ10,NUJ10¥210200811-201405

77010TUBE ASSY, FUEL TANK VENT

main77010-74010iKGJ10,NGJ10¥15,300200811-200911

sub77010-74011¥15,300

main77010-74011iKGJ10,NGJ10¥15,300200912-201106

main77010-74012iKGJ10,NGJ10¥15,300201107-201301

sub77010-74013¥15,300

main77010-74013iKGJ10,NGJ10¥15,300201302-201405

sub77010-74014¥15,300

main77010-74020iNUJ10200811-200911

sub77010-74021

main77010-74021iNUJ10200912-201106

main77010-74022iNUJ10201107-201205

sub77010-74023

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-74010iKGJ10,NGJ10,NUJ10¥2,100200811-201405

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-74010iKGJ10,NGJ10¥10,700200811-201405

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-74010iKGJ10,NGJ10¥1,430200811-201405

main77026-74020iNUJ10200811-201205

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-74010iKGJ10,NGJ10¥1,410200811-201405

77028DTUBE SUB-ASSY, FUEL EMISSION, REAR

main77028-74010iKGJ10,NGJ10¥1,670200811-201405

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-74010iKGJ10,NGJ10,NUJ10..LHD200811-201405

main77035-74020iKGJ10,NGJ10,NUJ10..RHD¥1,590200811-201405

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main77333-74010iKGJ10,NGJ10,NUJ10¥320200811-201405

NO.1

main77333-74020iKGJ10,NGJ10,NUJ10..RHD¥170200811-201405

NO.2

main77333-74030iKGJ10,NGJ10,NUJ10¥230200811-201405

NO.3

main82711-2A250iKGJ10,NGJ10,NUJ10..LHD¥310200902-201405

NO.2

main82711-2A250iKGJ10,NGJ10,NUJ10..LHD¥310200902-201405

NO.4

77100TANK ASSY, FUEL

main77001-74010iKGJ10,NGJ10,NUJ10¥43,200200811-201405

77144RETAINER, FUEL PUMP GAUGE

main77144-74010iKGJ10,NGJ10,NUJ10¥2,110200811-201405

77175SUPPORT, FUEL SUCTION, NO.2

main77175-74010iKGJ10,NGJ10¥440200811-201405

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12080iKGJ10,NGJ10,NUJ10¥520200811-201405

77197FCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42020iKGJ10,NGJ10,NUJ10¥320201005-201011

main77197-74010iKGJ10,NGJ10,NUJ10¥350201012-201405

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-74010iKGJ10,NGJ10¥810200811-201405

main77169-74020iNUJ10200811-201205

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-74010iKGJ10,NGJ10,NUJ10¥1,080200811-201405

77214PIPE, FUEL TANK FILLER

main77210-74020iNUJ10200811-201205

main77210-74030iKGJ10,NGJ10200811-201405

77241WCLIP, TUBE JOINT

main77241-33011iKGJ10,NGJ10,NUJ10¥80201004-201405

main77241-60320iKGJ10,NGJ10,NUJ10¥130200811-201003

77281GCLAMP, FUEL HOSE

main77281-74010iKGJ10,NGJ10,NUJ10¥320200811-201405

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52010iKGJ10,NGJ10,NUJ10¥1,020200811-201104

main77291-52150iKGJ10,NGJ10,NUJ10¥1,670201105-201405

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iKGJ10,NGJ10,NUJ10..RHD¥2,640200811-201009

main77306-52040iKGJ10,NGJ10,NUJ10..LHD¥2,640200811-201009

main77306-52050iKGJ10,NGJ10..RHD¥1,850201009-201405

main77306-52060iKGJ10,NGJ10,NUJ10..LHD¥2,050201009-201405

77310ACAP ASSY, FUEL TANK

main77300-20020iNUJ10¥2,200200811-201205

main77300-52030iKGJ10,NGJ10¥1,560200811-201405

77316GASKET, FUEL TANK CAP

main77316-52040iKGJ10,NGJ10,NUJ10¥230200811-201405

77350LID ASSY, FUEL FILLER OPENING

main77350-74010iKGJ10,NGJ10,NUJ10¥4,520200811-201004

sub77350-74011¥4,520

main77350-74011iKGJ10,NGJ10,NUJ10¥4,520201005-201405

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iKGJ10,NGJ10,NUJ10¥60200811-201405

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-52020iKGJ10,NGJ10,NUJ10¥360200811-201007

main77377-75010iKGJ10,NGJ10,NUJ10¥200201008-201405

77391ARING, FUEL INLET BOX

main77391-12020iKGJ10,NGJ10,NUJ10¥180200811-201405

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-74010iKGJ10,NGJ10,NUJ10¥2,010200811-201405

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-74010iKGJ10,NGJ10,NUJ10¥2,010200811-201405

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-74010iKGJ10,NUJ10¥13,500200811-200902

sub77606-74011¥13,000

main77606-74011iKGJ10,NGJ10,NUJ10¥13,000200902-201405

77651ACUSHION, FUEL TANK, NO.1

main77651-74010iKGJ10,NGJ10,NUJ10¥280200811-201405

77652ACUSHION, FUEL TANK, NO.2

main77652-74010iNUJ10¥520200811-201205

main77652-74020iKGJ10,NGJ10¥520200811-201405

77654CUSHION, FUEL TANK, NO.2

main77652-74010iKGJ10,NGJ10¥520200811-201405

77681SEAT, FUEL TANK BAND, RH

main77681-21020iKGJ10,NGJ10,NUJ10¥660200811-201405

77682SEAT, FUEL TANK BAND, LH

main77681-21020iKGJ10,NGJ10,NUJ10¥660200811-201405

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-74010iKGJ10,NGJ10¥1,390200811-201405

L=487

main77754-74020iNUJ10200811-201205

L=83

77785HARNESS, FUEL PUMP

main77785-74010iKGJ10,NGJ10¥240200811-201201

main77785-74011iKGJ10,NGJ10¥1,390201201-201405

8202

8401

9011910951

main90119-10951¥160

9011910963

main90119-10963¥120

9015960602

main90159-60602¥60

9017906219

main90179-06219¥70

9026906013

main90269-06013¥60

9030108019

main90301-08019¥200

9030108020

main90301-08020¥250

9046709227

main90467-09227¥120

9613251100

main96132-51100¥120

53 parts on this diagram · 4 diagrams in section
