SIDE MOULDING

5302

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-74010iKGJ10,NGJ10,NUJ10¥1,070200811-201405

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-74010iKGJ10,NGJ10,NUJ10¥1,070200811-201405

65631APLATE, REAR WHEEL HOUSE, FRONT RH

main65631-74010iKGJ10,NGJ10,NUJ10¥2,010200811-201405

65632APLATE, REAR WHEEL HOUSE, FRONT LH

main65632-74010iKGJ10,NGJ10,NUJ10¥2,010200811-201405

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-74010iKGJ10,NGJ10,NUJ10¥3,690200811-201405

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-74010iKGJ10,NGJ10,NUJ10¥3,690200811-201405

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040iKGJ10,NGJ10,NUJ10¥100200811-201405

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-74010iKGJ10,NGJ10,NUJ10¥3,060200811-201405

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-74010iKGJ10,NGJ10,NUJ10¥3,060200811-201405

75867ACLIP, ROCKER PANEL MOULDING

main71769-32011iKGJ10,NGJ10,NUJ10¥260200811-201405

75921TAPE, BLACK OUT, NO.1 RH

main75921-74010iKGJ10,NGJ10,NUJ10¥1,780200811-201405

75922BTAPE, BLACK OUT, NO.1 LH

main75922-74010iKGJ10,NGJ10,NUJ10¥1,780200811-201405

76924GRETAINER, ROCKER PANEL MOULDING

main76924-12030iKGJ10,NGJ10,NUJ10¥240200811-201405

6777132080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32080¥240

7539233010RETAINER, OUTSIDE MOULDING

main75392-33010¥140

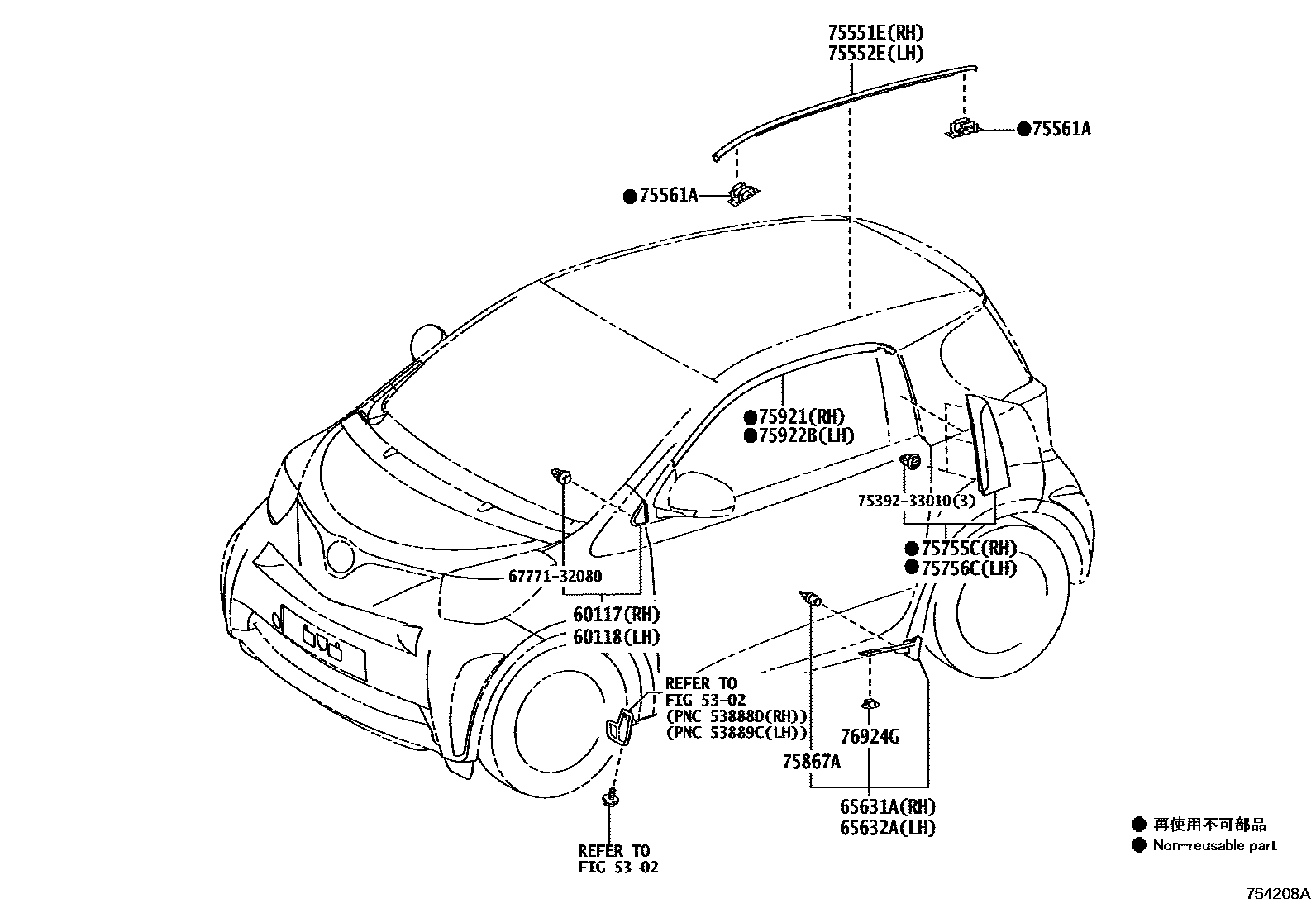

16 parts on this diagram · 1 diagram in section
