FRONT MOULDING

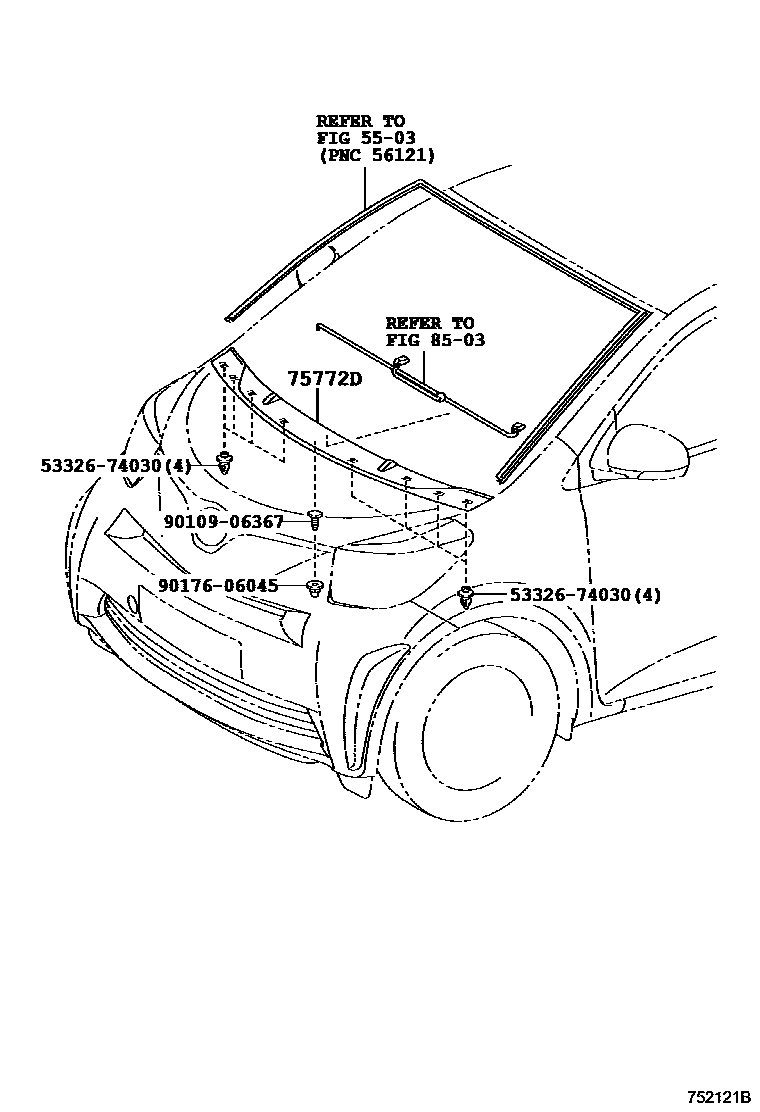

Parts diagram

5503

75772DMOULDING, HOOD, REAR

main75772-74010i200811-201007

main75772-74011i201008-201405

8503

5332674030CLIP, HOOD PROTECTOR

main53326-74030

9010906367

main90109-06367

9017606045

main90176-06045

6 parts on this diagram · 1 diagram in section
