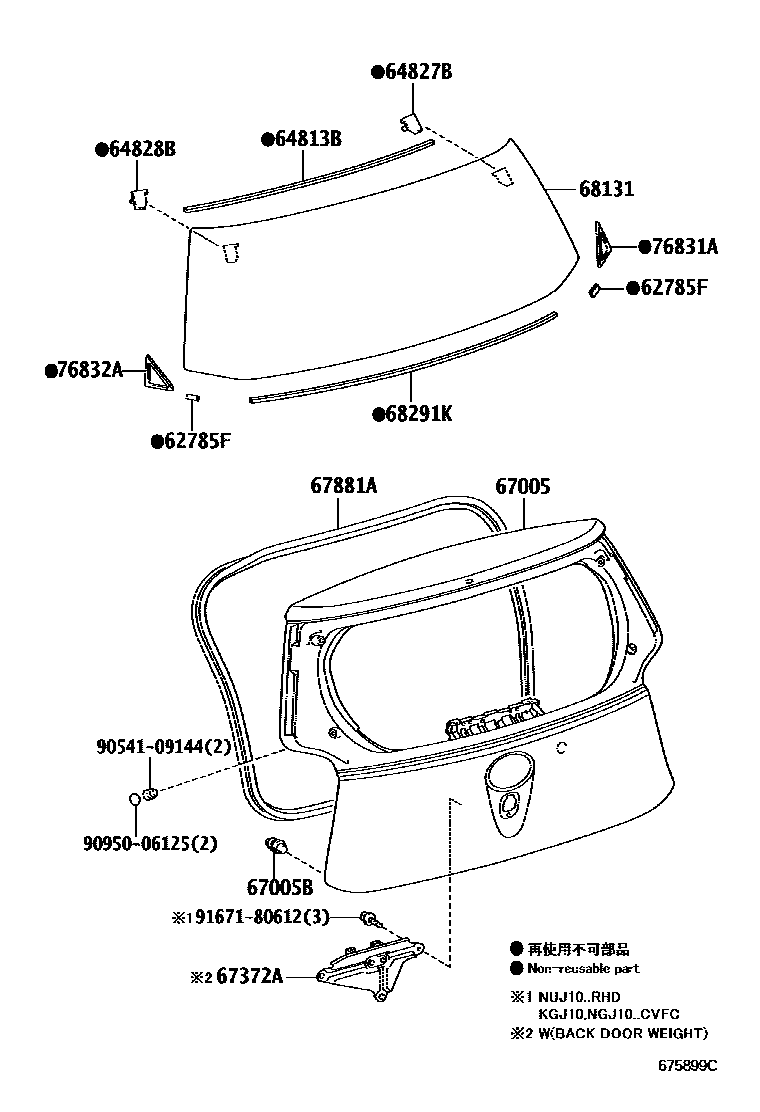

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-12050iKGJ10,NGJ10,NUJ10¥190201007-201405

main62785-60030iKGJ10,NGJ10,NUJ10¥200200811-201006

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-74010iKGJ10,NGJ10,NUJ10¥670200811-201405

sub56117-74010¥750

64827BCLIP, BACK WINDOW GLASS, RH

main64827-74010iKGJ10,NGJ10,NUJ10¥320200811-201405

64828BCLIP, BACK WINDOW GLASS, LH

main64828-74010iKGJ10,NGJ10,NUJ10¥320200811-201405

67005PANEL SUB-ASSY, BACK DOOR

main67005-74010iKGJ10,NGJ10,NUJ10¥49,600200811-201405

sub67005-74020¥49,600

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iKGJ10,NGJ10,NUJ10¥100200811-201405

67372AWEIGHT, BACK DOOR

main67372-74010iNUJ10..LHD¥5,700200811-201405

main67372-74020iNGJ10..CVFC¥5,700200905-201405

67881AWEATHERSTRIP, BACK DOOR

main67881-74010iKGJ10,NGJ10,NUJ10¥10,000200811-201405

68131GLASS, BACK DOOR

main68131-74010iKGJ10,NGJ10,NUJ10¥45,900200811-201405

*TEM,T=2.8,C.GREEN

68291KDAM KIT, BACK WINDOW GLASS

main64814-74010iKGJ10,NGJ10,NUJ10¥670200811-201405

sub56117-74010¥750

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-74010iKGJ10,NGJ10,NUJ10¥110200811-201405

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76831-74010iKGJ10,NGJ10,NUJ10¥110200811-201405

9054109144

main90541-09144¥260

9095006125

main90950-06125¥130

9167180612

main91671-80612¥60

15 parts on this diagram · 2 diagrams in section
