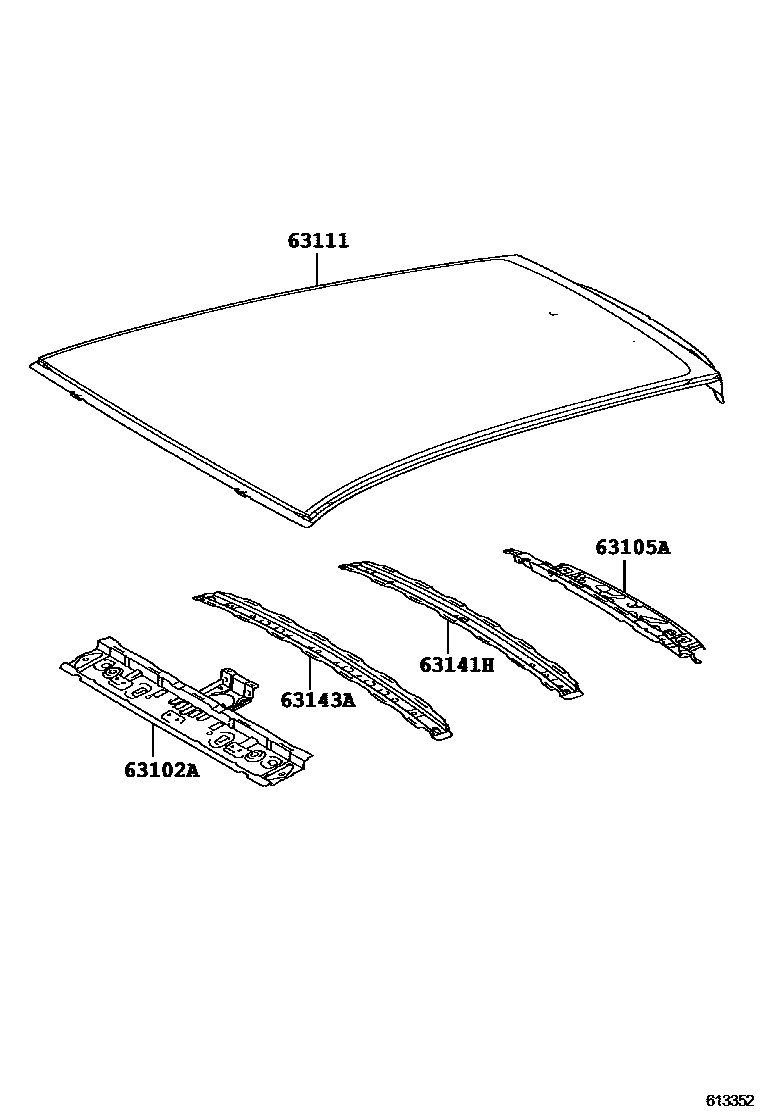

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-74900iKGJ10,NGJ10,NUJ10200811-201405

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-74010iKGJ10,NGJ10,NUJ10200811-201006

main63105-74011iKGJ10,NGJ10,NUJ10201006-201405

63111PANEL, ROOF

main63111-74010iKGJ10,NGJ10,NUJ10200811-200912

sub63111-74011

main63111-74011iKGJ10,NGJ10,NUJ10201001-201006

sub63111-74012

main63111-74012iKGJ10,NGJ10,NUJ10201006-201111

main63111-74013iKGJ10,NGJ10,NUJ10201111-201405

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-74010iKGJ10,NGJ10,NUJ10200811-201405

63143AREINFORCEMENT, ROOF PANEL

main63143-74010iKGJ10,NGJ10,NUJ10200811-201405

5 parts on this diagram · 1 diagram in section
