FLOOR INSULATOR

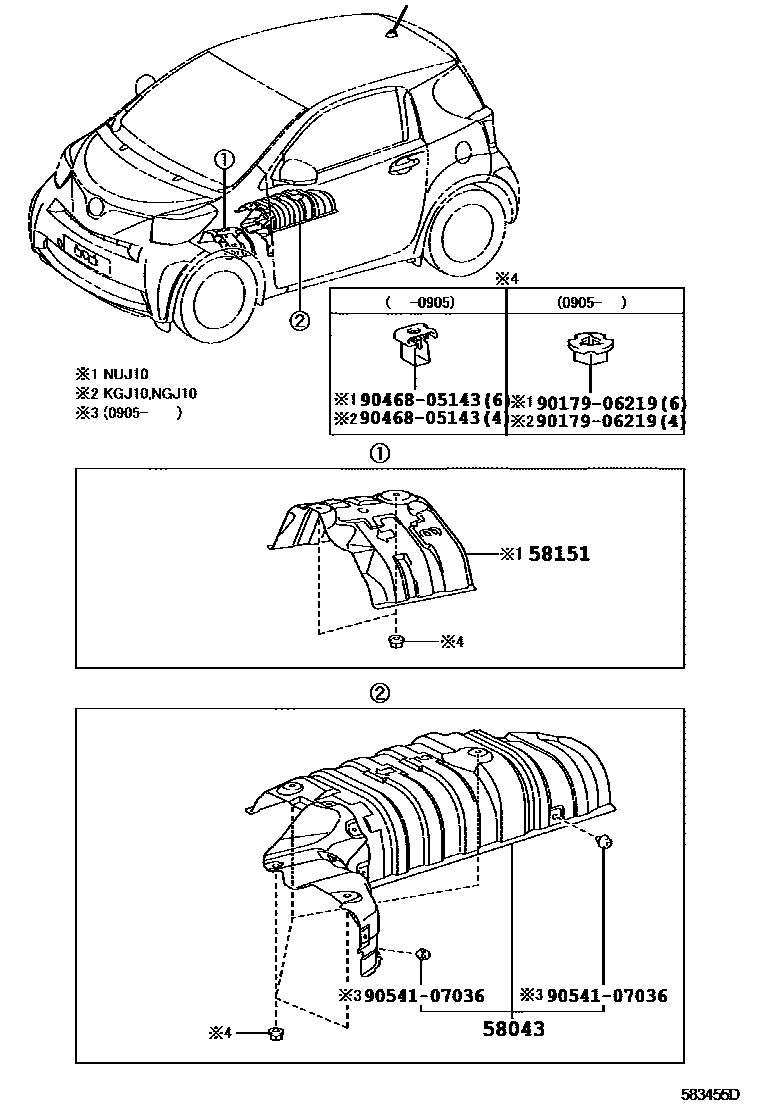

Parts diagram

58043INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, REAR

main58043-74010i200811-200904

main58043-74011i200905-201405

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-74010i200811-201205

main58151-74010i200811-201009

EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF)

9017906219

main90179-06219

9046805143

main90468-05143

9054107036

main90541-07036

5 parts on this diagram · 1 diagram in section
