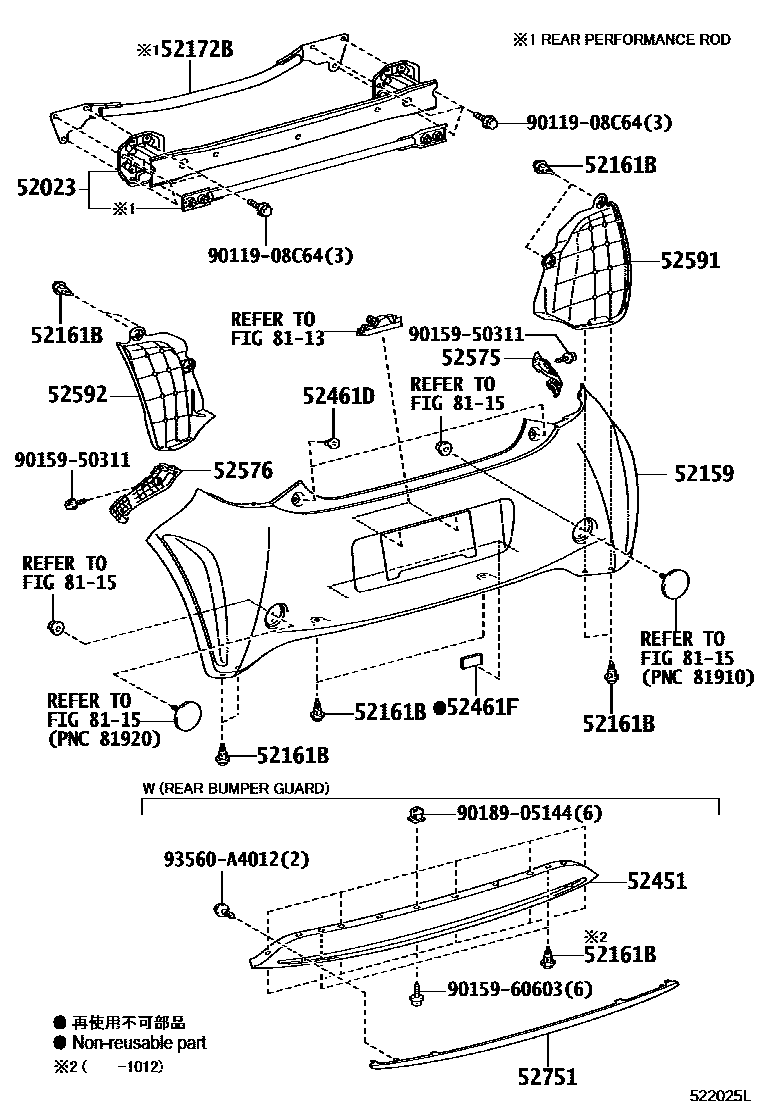

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-74010iKGJ10200811-201405

main58303-74010iNGJ10,NUJ10200811-201405

52159COVER, REAR BUMPER

main52159-74900iKGJ10,NGJ10,NUJ10200811-201405

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iKGJ10,NGJ10,NUJ10200811-201405

sub52161-0K040

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52043-74010iNGJ10,NUJ10200811-201012

main52043-74020iNGJ10,NUJ10201012-201405

REAR PERFORMANCE ROD-WITH

52451GUARD, REAR BUMPER

main52453-74010

52461DCUSHION, REAR BUMPER

main52461-52020iKGJ10,NGJ10,NUJ10200811-201405

52461FPAD, REAR BUMPER

main52461-74010iKGJ10,NGJ10,NUJ10200811-201405

52575RETAINER, REAR BUMPER SIDE, RH

main52575-74010iKGJ10,NGJ10,NUJ10200811-201009

sub52575-74011

main52575-74011iKGJ10,NGJ10,NUJ10201010-201203

sub52575-74012

main52575-74012iKGJ10,NGJ10,NUJ10201204-201405

52576RETAINER, REAR BUMPER SIDE, LH

main52576-74010iKGJ10,NGJ10,NUJ10200811-201009

sub52576-74011

main52576-74011iKGJ10,NGJ10,NUJ10201010-201203

sub52576-74012

main52576-74012iKGJ10,NGJ10,NUJ10201204-201405

52591SEAL, REAR BUMPER SIDE, RH

main52591-74010iKGJ10,NGJ10,NUJ10200811-201405

52592SEAL, REAR BUMPER SIDE, LH

main52592-74010iKGJ10,NGJ10,NUJ10200811-201405

52751MOULDING, REAR BUMPER

main52751-74010

8113

8115

9011908C64

main90119-08C64

9015950311

main90159-50311

9015960603

main90159-60603

9018905144

main90189-05144

93560A4012

main93560-A4012

19 parts on this diagram · 1 diagram in section
