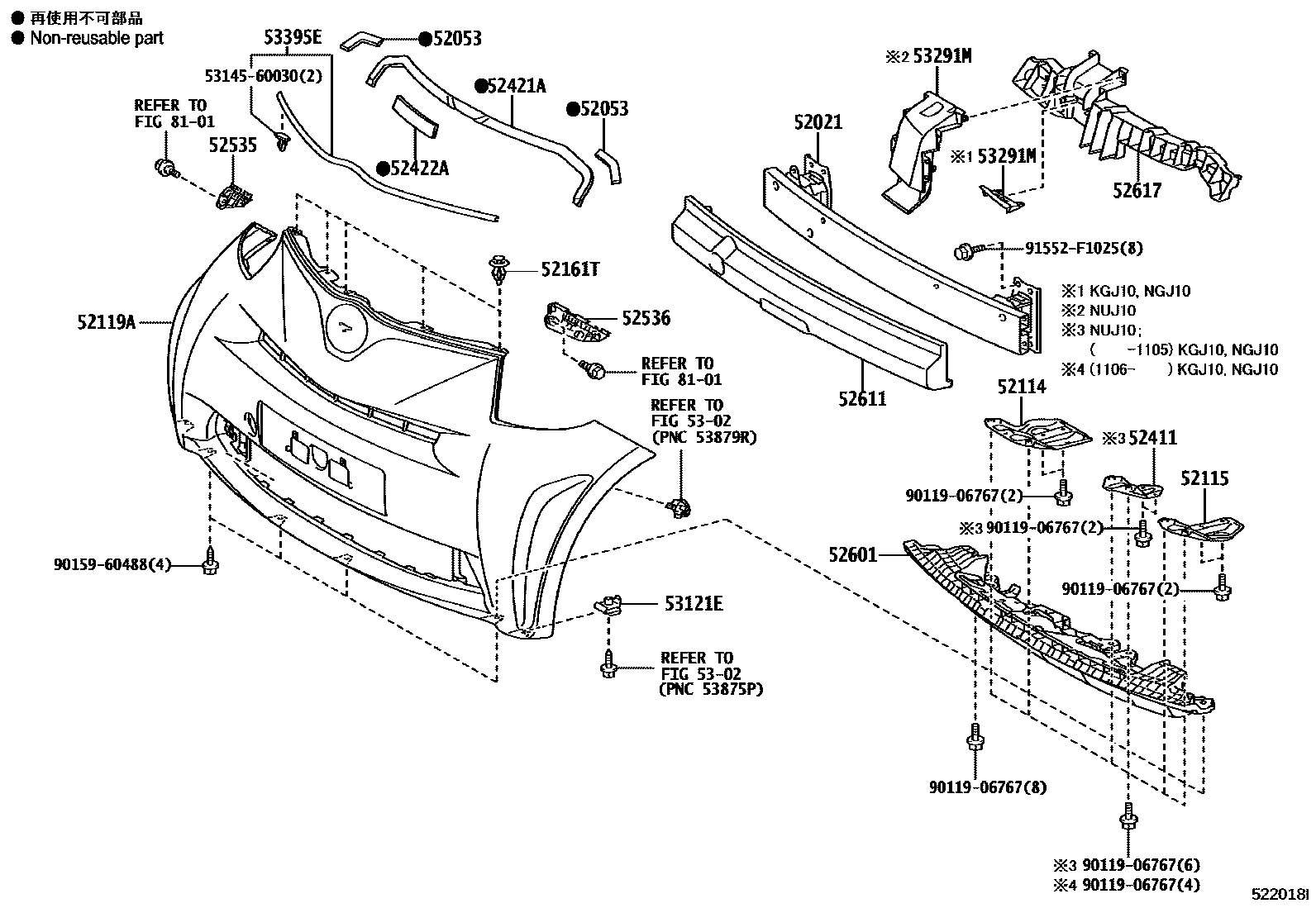

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-74010iKGJ10,NGJ10,NUJ10200811-200912

main52021-74011iKGJ10,NGJ10,NUJ10201001-201301

main52021-74012iKGJ10,NGJ10201302-201405

52053PAD SUB-ASSY, FRONT BUMPER

main52423-74010×2iKGJ10,NGJ10,NUJ10200811-201405

52114GUARD, BUMPER, FRONT RH

main52907-74010iNUJ10..LHD200811-201105

52115GUARD, BUMPER, FRONT LH

main52908-74010iNUJ10..LHD200811-201105

52119ACOVER, FRONT BUMPER

main52119-74900iKGJ10,NGJ10,NUJ10200811-201405

PAINT REQ.

52161TPIECE, FRONT BUMPER

main52161-16010×5iKGJ10,NGJ10,NUJ10200811-201405

sub52161-0K040

52411GUARD, FRONT BUMPER

main52401-74010iKGJ10,NGJ10200811-201105

52421APAD, FRONT BUMPER

main52421-74010iKGJ10,NGJ10,NUJ10200811-201405

52422APAD, FRONT BUMPER, RH

main52422-74010iKGJ10,NGJ10,NUJ10200811-201405

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-74010iKGJ10,NUJ10200811-200902

main52535-74011iKGJ10,NGJ10,NUJ10200903-201405

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-74010iKGJ10,NUJ10200811-200902

main52536-74011iKGJ10,NGJ10,NUJ10200903-201405

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-74010iKGJ10,NGJ10,NUJ10200811-201005

main52601-74011iKGJ10,NGJ10,NUJ10201006-201405

52611ABSORBER, FRONT BUMPER ENERGY

main52611-74011iKGJ10,NGJ10,NUJ10200811-201405

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-74010iKGJ10,NGJ10,NUJ10200811-201008

main52617-74011iKGJ10,NGJ10,NUJ10201009-201405

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05114×2iKGJ10,NGJ10,NUJ10200811-201405

53291MSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-74010iKGJ10,NGJ10200811-201405

main53292-74010iNUJ10200811-201205

53395ESEAL, HOOD TO FRONT END PANEL

main53395-74010iKGJ10,NGJ10,NUJ10200811-201405

8101

5314560030BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-60030

9011906767

main90119-06767

9015960488

main90159-60488

91552F1025

main91552-F1025

23 parts on this diagram · 2 diagrams in section
