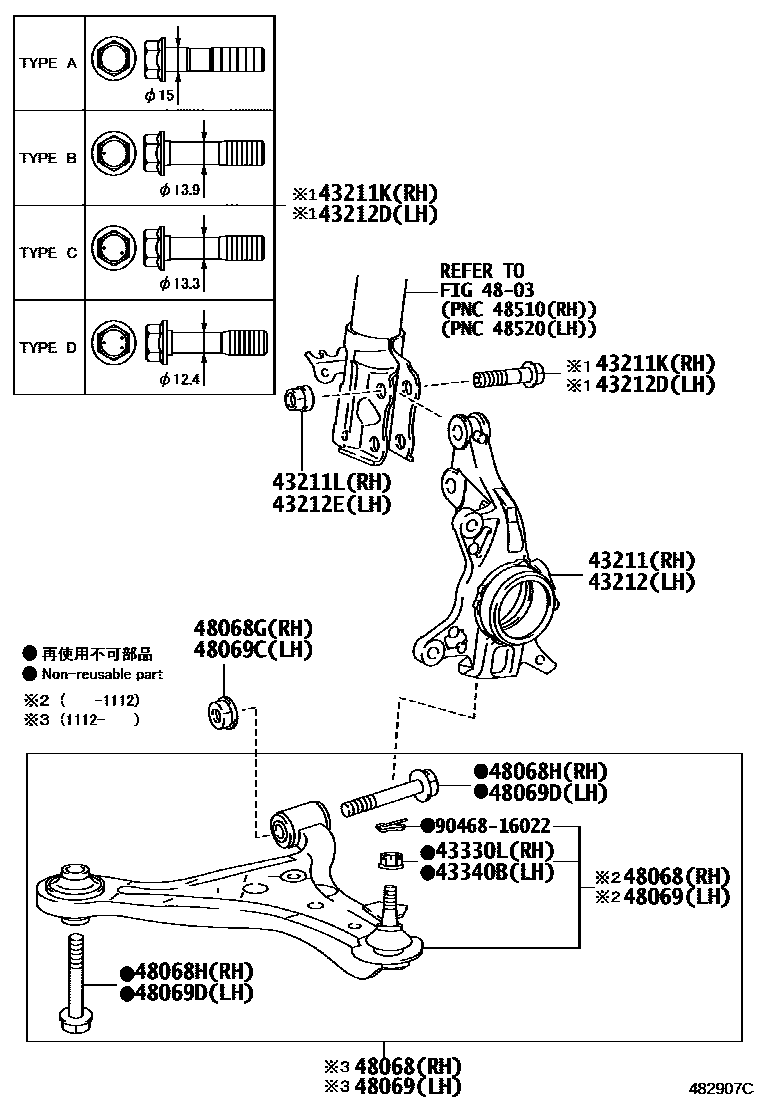

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-74010iKGJ10200811-201405

main43211-74020iNGJ10,NUJ10200811-201405

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001iKGJ10,NGJ10,NUJ10200811-201405

OD=15,TYPE A:REFER ILLUST.

main90109-15002iKGJ10,NGJ10,NUJ10200811-201405

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iKGJ10,NGJ10,NUJ10200811-201405

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iKGJ10,NGJ10,NUJ10200811-201405

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006iKGJ10,NGJ10,NUJ10200811-201405

43212KNUCKLE, STEERING, LH

main43212-74010iKGJ10200811-201405

main43212-74020iNGJ10,NUJ10200811-201405

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001iKGJ10,NGJ10,NUJ10200811-201405

OD=15,TYPE A:REFER ILLUST.

main90109-15002iKGJ10,NGJ10,NUJ10200811-201405

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iKGJ10,NGJ10,NUJ10200811-201405

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iKGJ10,NGJ10,NUJ10200811-201405

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006iKGJ10,NGJ10,NUJ10200811-201405

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iKGJ10,NGJ10,NUJ10200811-201405

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iKGJ10,NGJ10,NUJ10200811-201405

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-79015iKGJ10,NGJ10,NUJ10200811-201012

sub48068-79017

main48068-79016iKGJ10,NGJ10,NUJ10201012-201112

sub48068-79017

main48068-79017iKGJ10,NGJ10,NUJ10201112-201206

sub48068-79018

main48068-79018iKGJ10,NGJ10201207-201405

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14068iKGJ10,NGJ10,NUJ10200811-201405

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14143iKGJ10,NGJ10,NUJ10200910-201112

sub90119-14150

main90119-14150iKGJ10,NGJ10,NUJ10201112

main91674-L1485iKGJ10,NGJ10,NUJ10200811-200909

sub90119-14150

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-79015iKGJ10,NGJ10,NUJ10200811-201012

sub48069-79017

main48069-79016iKGJ10,NGJ10,NUJ10201012-201112

sub48069-79017

main48069-79017iKGJ10,NGJ10,NUJ10201112-201206

sub48069-79018

main48069-79018iKGJ10,NGJ10201207-201405

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14068iKGJ10,NGJ10,NUJ10200811-201405

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14143iKGJ10,NGJ10,NUJ10200910-201112

sub90119-14150

main90119-14150iKGJ10,NGJ10,NUJ10201112

main91674-L1485iKGJ10,NGJ10,NUJ10200811-200909

sub90119-14150

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
