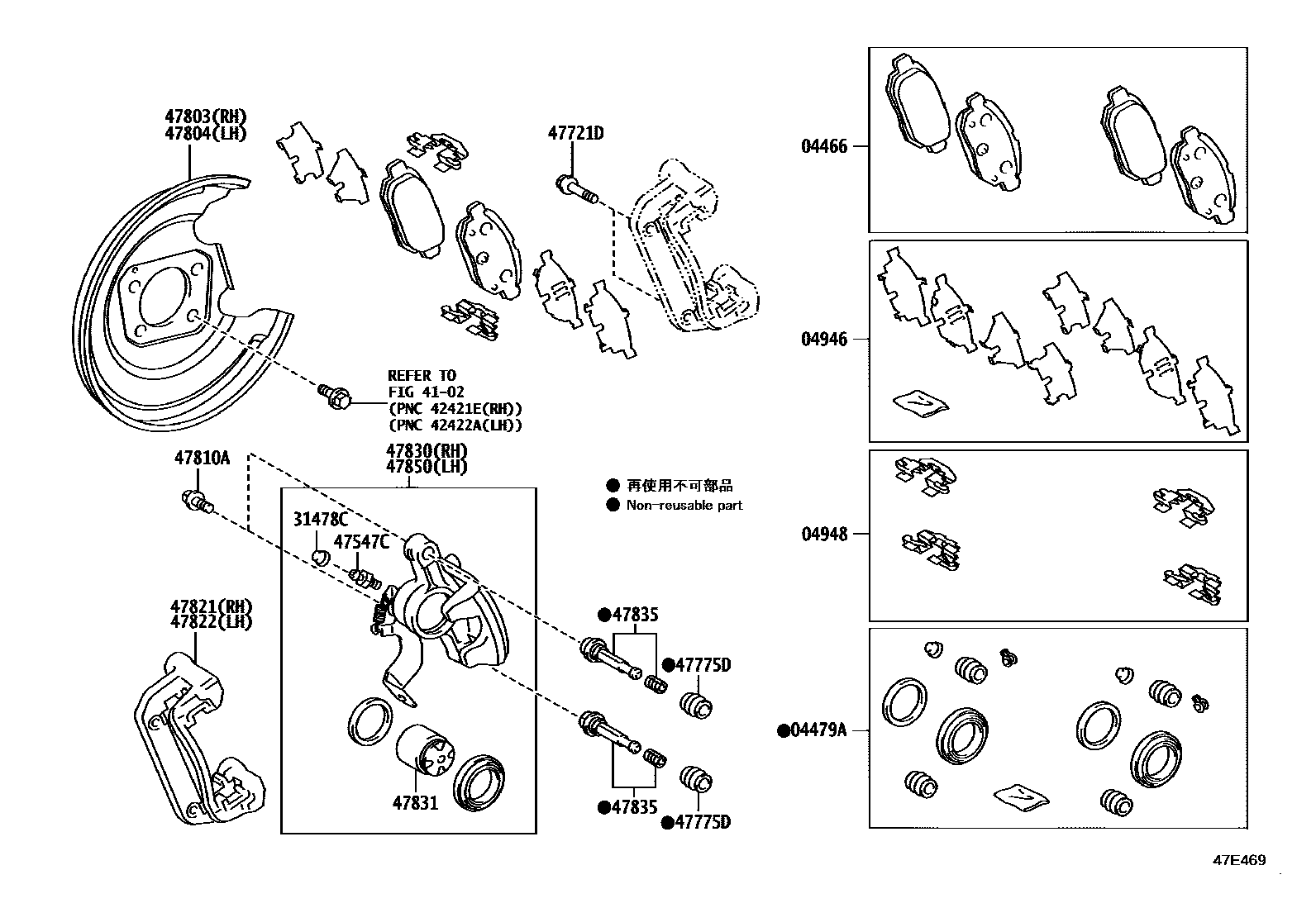

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK NBK D6234,WITH(REAR DISC BRAKE)
MARK NBK D6247
MARK NBK D6247,WITH(REAR DISC BRAKE)
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
WITH(REAR DISC BRAKE)
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4102
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*10-1.25PX24-21.5
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
WITH(REAR DRUM BRAKE)
47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
WITH(REAR DRUM BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47821MOUNTING, REAR DISC BRAKE CYLINDER, RH
47822MOUNTING, REAR DISC BRAKE CYLINDER, LH
47830CYLINDER ASSY, DISC BRAKE, REAR RH
47831PISTON, REAR DISC BRAKE
47835PIN, REAR DISC BRAKE PAD GUIDE
47850CYLINDER ASSY, DISC BRAKE, REAR LH
18 parts on this diagram · 1 diagram in section
