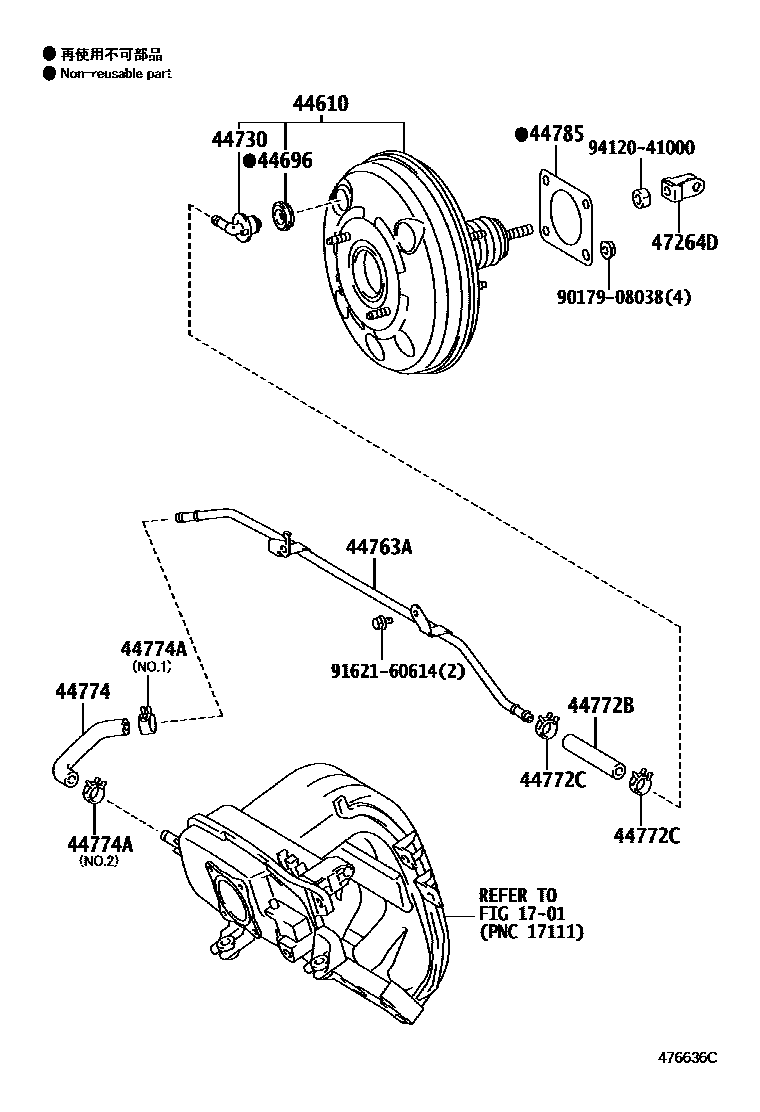

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701

44610BOOSTER ASSY, BRAKE

main44610-74010iNGJ10..RHD..R;KGJ10,NGJ10..RHD..(5F,CVFC)¥46,600200811-201405

main44610-74020iNUJ10..RHD200811-201003

main44610-74030iNGJ10..LHD..R;KGJ10,NGJ10..LHD..(5F,CVFC)200811-201405

main44610-74040iNUJ10..LHD200811-201205

main44610-74050iNGJ10..RHD..6F¥46,600200905-201205

main44610-74060iNGJ10..LHD..6F200905-201205

44696GROMMET, CHECK VALVE

main90480-24439iKGJ10,NGJ10,NUJ10¥390200811-201405

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iKGJ10,NGJ10..LHD¥1,720200811-201205

main44730-20170iKGJ10,NGJ10..LHD¥1,310201106-201405

main44730-22150iKGJ10,NGJ10,NUJ10..RHD¥1,300200811-201405

44763ATUBE, HOSE TO HOSE, NO.1

main44763-74010iKGJ10,NGJ10..LHD200811-201007

sub44763-74011

main44763-74011iKGJ10,NGJ10..LHD201008-201405

main44763-74020iNUJ10..LHD200811-201205

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-74020iKGJ10,NGJ10..LHD200811-201405

main44772-74030iNUJ10..LHD200811-201205

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iNGJ10..LHD¥230201403-201405

main96133-41500iNGJ10..LHD..R;NGJ10..LHD..CVFC¥140200811-201405

44774HOSE, UNION TO CONNECTOR TUBE

main44774-74010iKGJ10..LHD200811-201405

main44774-74020iNUJ10..LHD200811-201205

main44774-74030iNGJ10..LHD200905-201405

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iNGJ10..LHD..R;NGJ10..LHD..CVFC¥230200812-201405

NO.2

main90467-16014iNGJ10..LHD¥230201403-201405

NO.1 & NO.2

main96133-41500iNGJ10..LHD..R;NGJ10..LHD..CVFC¥140200812-201405

NO.1

main96133-41500iNUJ10..LHD¥140200811-201205

main96133-41500iKGJ10..LHD¥140200811-200812

NO.1 & NO.2

44785GASKET, BRAKE BOOSTER

main44785-16020iKGJ10,NGJ10,NUJ10¥220200811-201405

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iKGJ10,NGJ10,NUJ10¥260200811-201011

main47264-68010iKGJ10,NGJ10,NUJ10¥300201012-201405

9017908038

main90179-08038¥130

9162160614

main91621-60614¥120

9412041000

main94120-41000¥80

14 parts on this diagram · 6 diagrams in section
