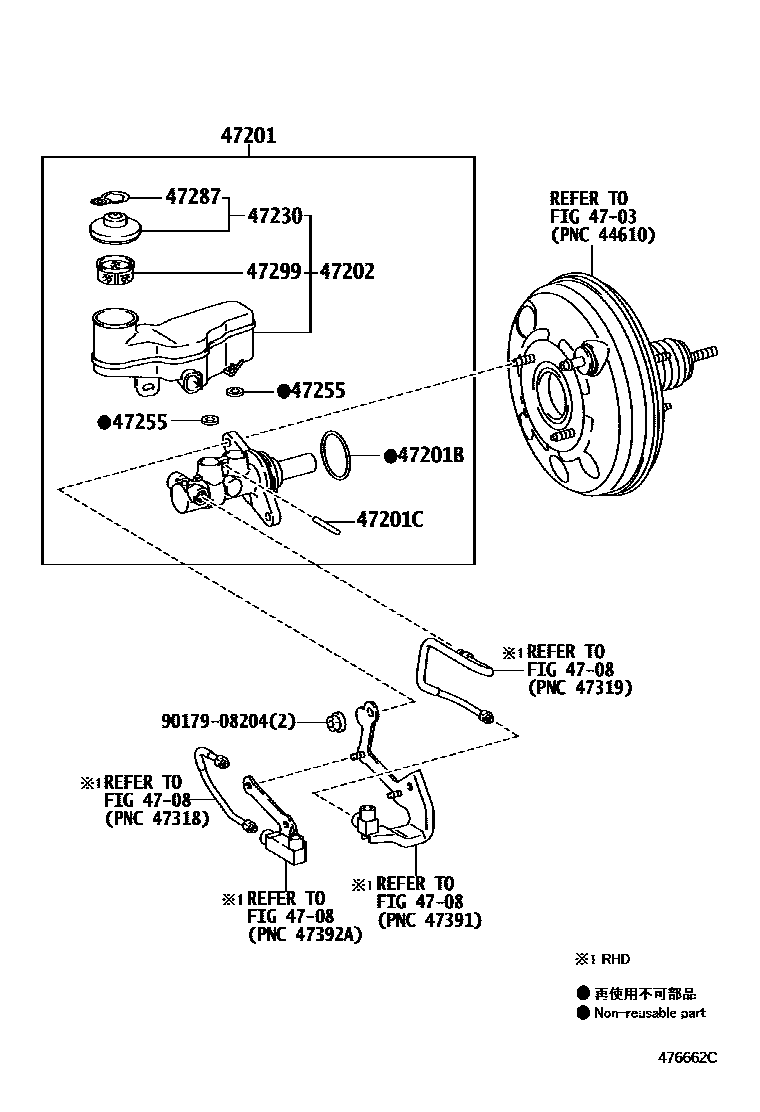

BRAKE MASTER CYLINDER

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-74010iKGJ10,NGJ10..RHD..CVFC200811-201405

main47201-74020iKGJ10,NGJ10,NUJ10..RHD..MTM200811-201405

main47201-74030iKGJ10,NGJ10..LHD..CVFC200811-201003

main47201-74031iKGJ10,NGJ10..LHD..CVFC201003-201405

main47201-74040iKGJ10,NUJ10..LHD..MTM200811-201003

main47201-74041iNGJ10..LHD..R;KGJ10,NUJ10..LHD..MTM201003-201405

main47201-74050iNGJ10..LHD..6F200905-201003

main47201-74051iNGJ10..LHD..6F201003-201205

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iKGJ10,NGJ10,NUJ10200811-201405

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iKGJ10,NGJ10,NUJ10200811-201405

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-74010iKGJ10,NGJ10..RHD..CVFC200811-201405

main47220-74020iKGJ10,NGJ10,NUJ10..RHD..MTM200811-201405

main47220-74030iKGJ10,NGJ10..LHD..CVFC200811-201405

main47220-74040iNGJ10..LHD..R;KGJ10,NUJ10..LHD..MTM200811-201405

main47220-74050iNGJ10..LHD..6F200905-201205

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iKGJ10,NGJ10,NUJ10200811-201405

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iKGJ10,NGJ10,NUJ10200811-201405

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iKGJ10,NGJ10,NUJ10200811-201405

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iKGJ10,NGJ10,NUJ10200811-201405

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
