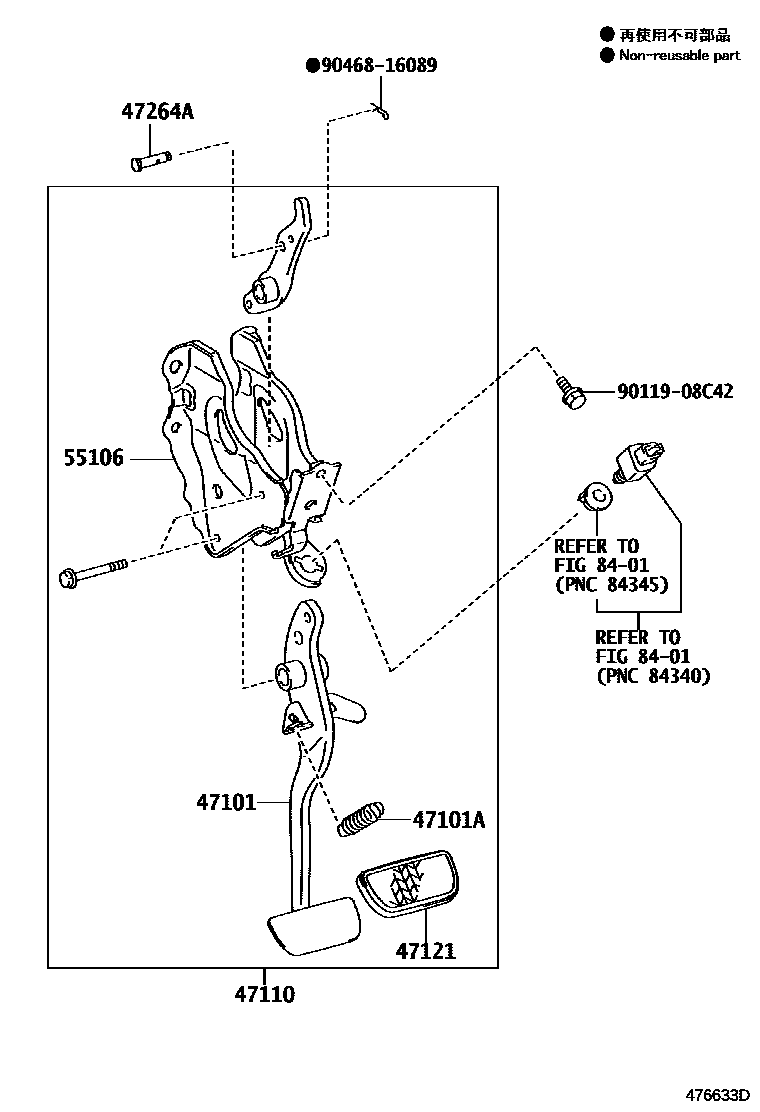

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-74010iKGJ10,NGJ10,NUJ10..LHD..MTM200811-200909

main47101-74020iKGJ10,NGJ10..LHD..CVFC200811-200909

main47101-74030iKGJ10,NGJ10,NUJ10..RHD..MTM200811-200909

main47101-74040iKGJ10,NGJ10..RHD..CVFC200811-200909

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20033iKGJ10,NGJ10,NUJ10200811-200908

47110SUPPORT ASSY, BRAKE PEDAL

main47110-74010iKGJ10,NGJ10,NUJ10..LHD..MTM200811-200909

main47110-74011iKGJ10,NGJ10,NUJ10..LHD..MTM200909-201105

sub47110-74012

main47110-74012iKGJ10,NGJ10,NUJ10..LHD..MTM201106-201405

main47110-74020iKGJ10,NGJ10..LHD..CVFC200811-200909

main47110-74021iKGJ10,NGJ10..LHD..CVFC200909-201105

sub47110-74022

main47110-74022iKGJ10,NGJ10..LHD..CVFC201106-201405

main47110-74030iKGJ10,NGJ10,NUJ10..RHD..MTM200811-200909

main47110-74031iKGJ10,NGJ10,NUJ10..RHD..MTM200909-201112

sub47110-74032

main47110-74032iKGJ10,NGJ10..RHD..MTM201201-201405

main47110-74040iKGJ10,NGJ10..RHD..CVFC200811-200909

sub47110-74041

main47110-74041iKGJ10,NGJ10..RHD..CVFC200909-201112

sub47110-74042

main47110-74042iKGJ10,NGJ10..RHD..CVFC201201-201405

47121PAD, BRAKE PEDAL

main31321-52010iKGJ10,NGJ10,NUJ10..MTM200811-201405

main47121-52010iKGJ10,NGJ10..CVFC200811-201405

47264APIN(FOR PUSH ROD)

main90249-08256iKGJ10,NGJ10,NUJ10200811-201405

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-74010iKGJ10,NGJ10,NUJ10200811-200909

8401

9011908C42

main90119-08C42

9046816089

main90468-16089

9 parts on this diagram · 2 diagrams in section
