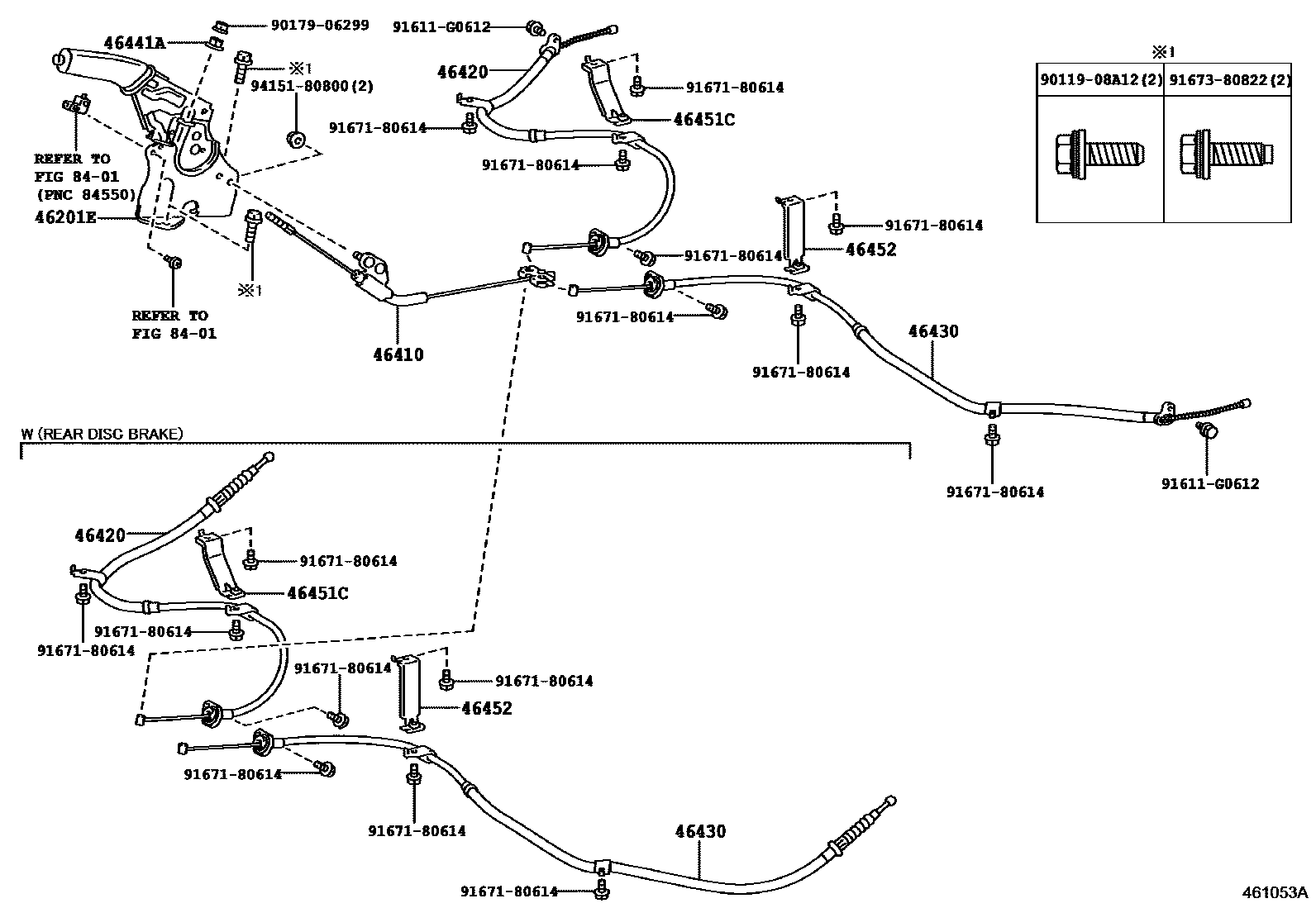

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-74020-C0iNGJ10..LHD..R201205-201405

BLACK,TRIM1#,7#,9#

main46201-74020-C0iKGJ10..RHD;NGJ10..RHD..N201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main46201-74020-C0iKGJ10..RHD;NGJ10..RHD..N201005-201405

WITH(REAR DISC BRAKE),BLACK,TRIM1#,4#,5#,7#,9#

main46201-74020-C0iNGJ10..LHD..R201205-201405

WITH(REAR DISC BRAKE),BLACK,TRIM1#,7#,9#

main46201-74030-B0iKGJ10,NGJ10,NUJ10200811-201005

DK.GRAY,TRIM1#,4#,5#,7#

main46201-74030-C0iNGJ10..LHD..N;KGJ10,NUJ10..LHD201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main46201-74030-C0iNGJ10..LHD..R201205-201405

BLACK,TRIM1#,7#,9#

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-74010iKGJ10,NGJ10,NUJ10200811-201405

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-74010iKGJ10,NGJ10..RHD200811-201405

main46420-74020iKGJ10,NGJ10..RHD201005-201203

sub46420-74021

main46420-74021iKGJ10,NGJ10..RHD201203-201405

WITH(REAR DISC BRAKE)

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-74010iNUJ10;KGJ10,NGJ10..LHD200811-201405

main46430-74020iKGJ10,NGJ10..RHD201005-201203

sub46430-74021

main46430-74021iKGJ10,NGJ10..RHD201203-201405

WITH(REAR DISC BRAKE)

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iKGJ10,NGJ10,NUJ10200811-201405

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-74010iKGJ10,NGJ10,NUJ10200811-201405

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-74010iKGJ10,NGJ10,NUJ10200811-201405

8401

9011908A12

main90119-08A12

9017906299

main90179-06299

91611G0612

main91611-G0612

9167180614

main91671-80614

9167380822

main91673-80822

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
