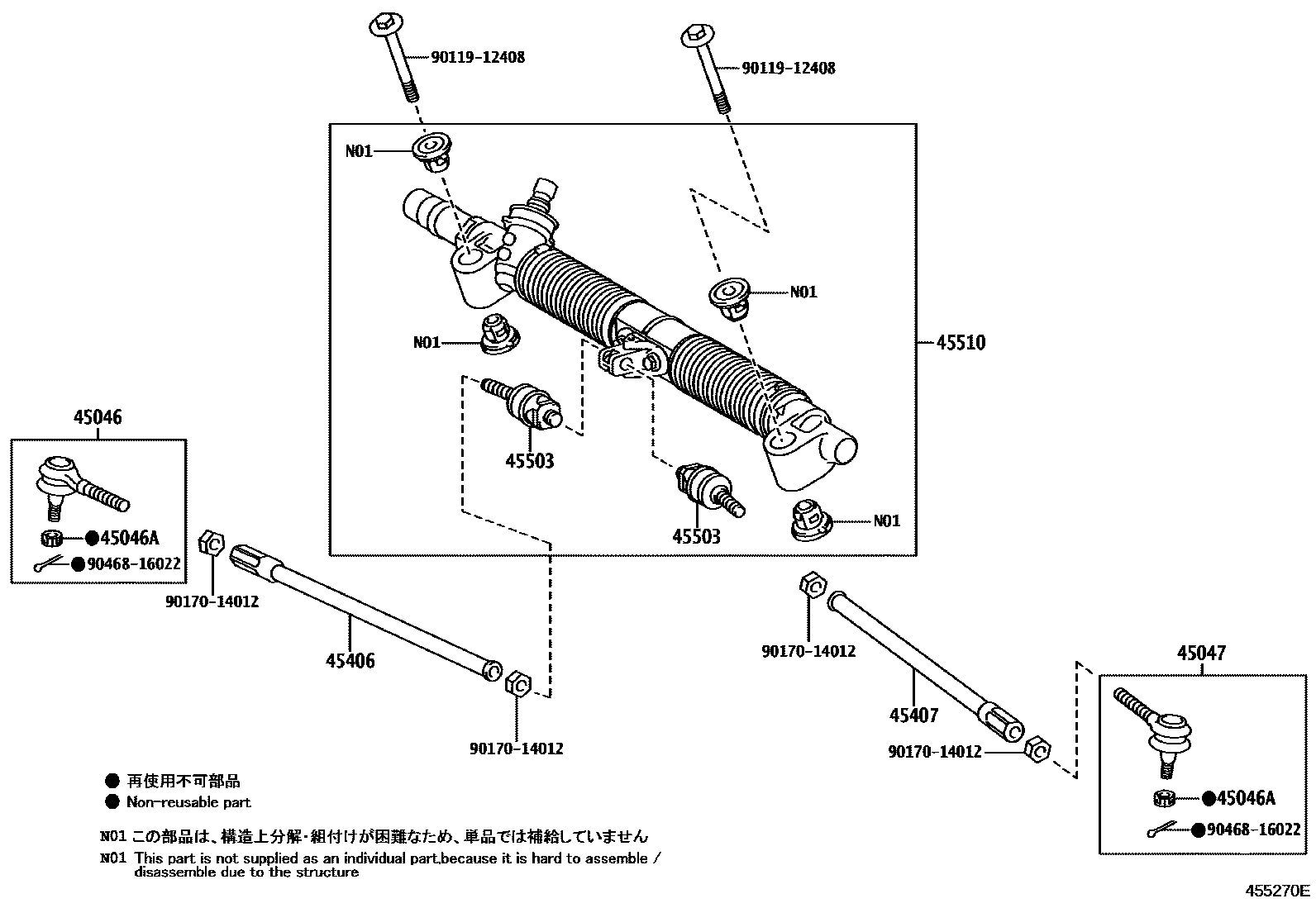

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45046END SUB-ASSY, TIE ROD, RH

main45046-79025iKGJ10,NGJ10,NUJ10200811-201405

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iKGJ10,NGJ10,NUJ10200811-201405

45047END SUB-ASSY, TIE ROD, LH

main45046-79025iKGJ10,NGJ10,NUJ10200811-201405

45406ROD SUB-ASSY, TIE, RH

main45406-74010iNUJ10..LHD;KGJ10,NGJ10200811-201108

sub45406-74011

main45406-74011iKGJ10,NGJ10,NUJ10201108-201405

45407ROD SUB-ASSY, TIE, LH

main45406-74010iNUJ10..LHD;KGJ10,NGJ10200811-201108

sub45406-74011

main45406-74011iKGJ10,NGJ10,NUJ10201108-201405

45503END SUB-ASSY, STEERING RACK

main45503-74010iKGJ10,NGJ10,NUJ10200811-201405

45510GEAR ASSY, STEERING

main45510-74010iKGJ10,NGJ10..RHD200811-201405

main45510-74020iKGJ10,NGJ10..LHD200811-201405

main45510-74030iNUJ10..RHD200811-201003

main45510-74040iNUJ10..LHD200811-201205

9011912408

main90119-12408

9017014012

main90170-14012

9046816022

main90468-16022

10 parts on this diagram · 4 diagrams in section
