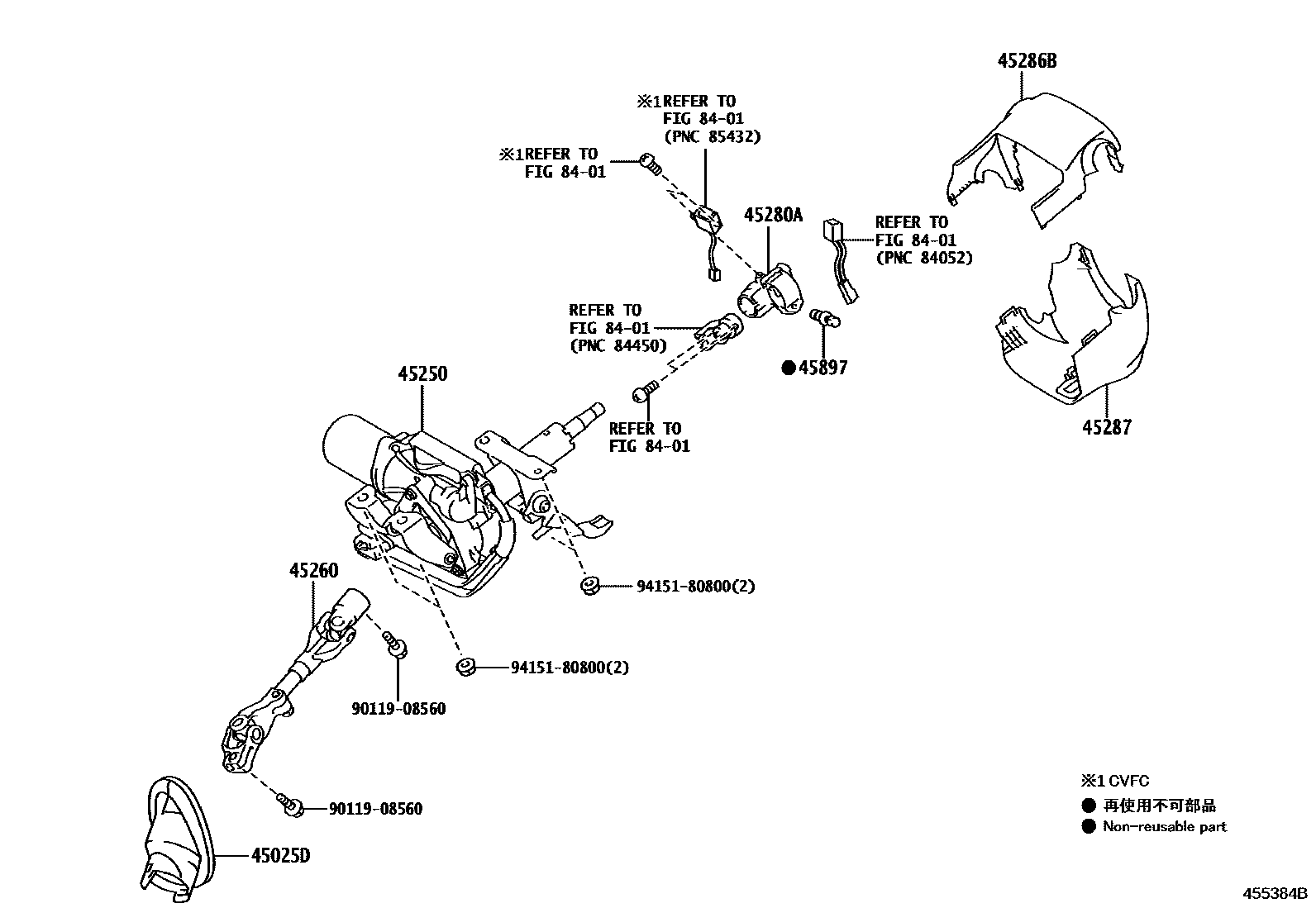

STEERING COLUMN & SHAFT

0001 1 0002 1STARTING SYSTEM-PUSH BUTTON

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-74010iKGJ10,NGJ10,NUJ10..RHD200811-201405

main45025-74020iKGJ10,NGJ10,NUJ10..LHD200811-201405

45250COLUMN ASSY, STEERING

main45250-74010iKGJ10,NUJ10..RHD200811-201009

sub45250-74100

main45250-74030iKGJ10,NUJ10..LHD200811-201009

sub45250-74120

main45250-74050iNGJ10..RHD200905-201009

sub45250-74140

main45250-74070iNGJ10..LHD200905-201009

sub45250-74160

main45250-74100iKGJ10..RHD201010-201107

sub45250-74101

main45250-74101iKGJ10..RHD;NGJ10..RHD..6F..N201108-201305

main45250-74102iKGJ10..RHD201305-201405

main45250-74111iNGJ10..RHD201205-201305

main45250-74112iNGJ10..RHD201305-201405

WIRELESS DOOR LOCK-SMART KEY

main45250-74120iKGJ10,NUJ10..LHD201010-201107

sub45250-74121

main45250-74121iKGJ10,NGJ10,NUJ10..LHD201108-201305

main45250-74122iKGJ10,NGJ10..LHD201305-201405

main45250-74140iNGJ10..RHD201010-201108

sub45250-74101

main45250-74160iNGJ10..LHD201010-201108

sub45250-74121

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-74010iKGJ10,NGJ10,NUJ10..RHD200811-201405

main45260-74020iKGJ10,NGJ10,NUJ10..LHD200811-201405

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-74030iKGJ10,NGJ10..LHD..CVFC200811-201405

main45280-74040iKGJ10,NGJ10,NUJ10..LHD..MTM200811-201405

main45280-74050iNGJ10..RHD..CVFC200811-201405

main45280-74060iNGJ10..RHD..6F..N;KGJ10,NUJ10..RHD..MTM200811-201405

45286BCOVER, STEERING COLUMN, UPR

main45286-74010-C0iKGJ10..R;NUJ10..RHD200811-201405

BLACK,TRIM1#,4#,5#,7#

main45286-74010-C0iNUJ10..LHD;KGJ10,NGJ10..N200811-201405

BLACK,TRIM1#,4#,5#,7#,9#

main45286-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

45287COVER, STEERING COLUMN, LWR

main45287-74020-C0iNUJ10..LHD;KGJ10,NGJ10..N200811-201405

BLACK,TRIM1#,4#,5#,7#

main45287-74020-C0iKGJ10..R;NUJ10..RHD200811-201405

BLACK,TRIM1#,4#,5#,7#,9#

main45287-74020-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

45897BOLT, STEERING LOCK SET

main45897-12020iNGJ10..R;NGJ10..LHD..N;KGJ10,NUJ10..LHD200811-201405

WIRELESS DOOR LOCK-SMART KEY

main45897-12020iNGJ10..RHD..N201205-201405

main45897-12050iNGJ10..RHD..CVFC200811-201405

8401

9011908560

main90119-08560

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
