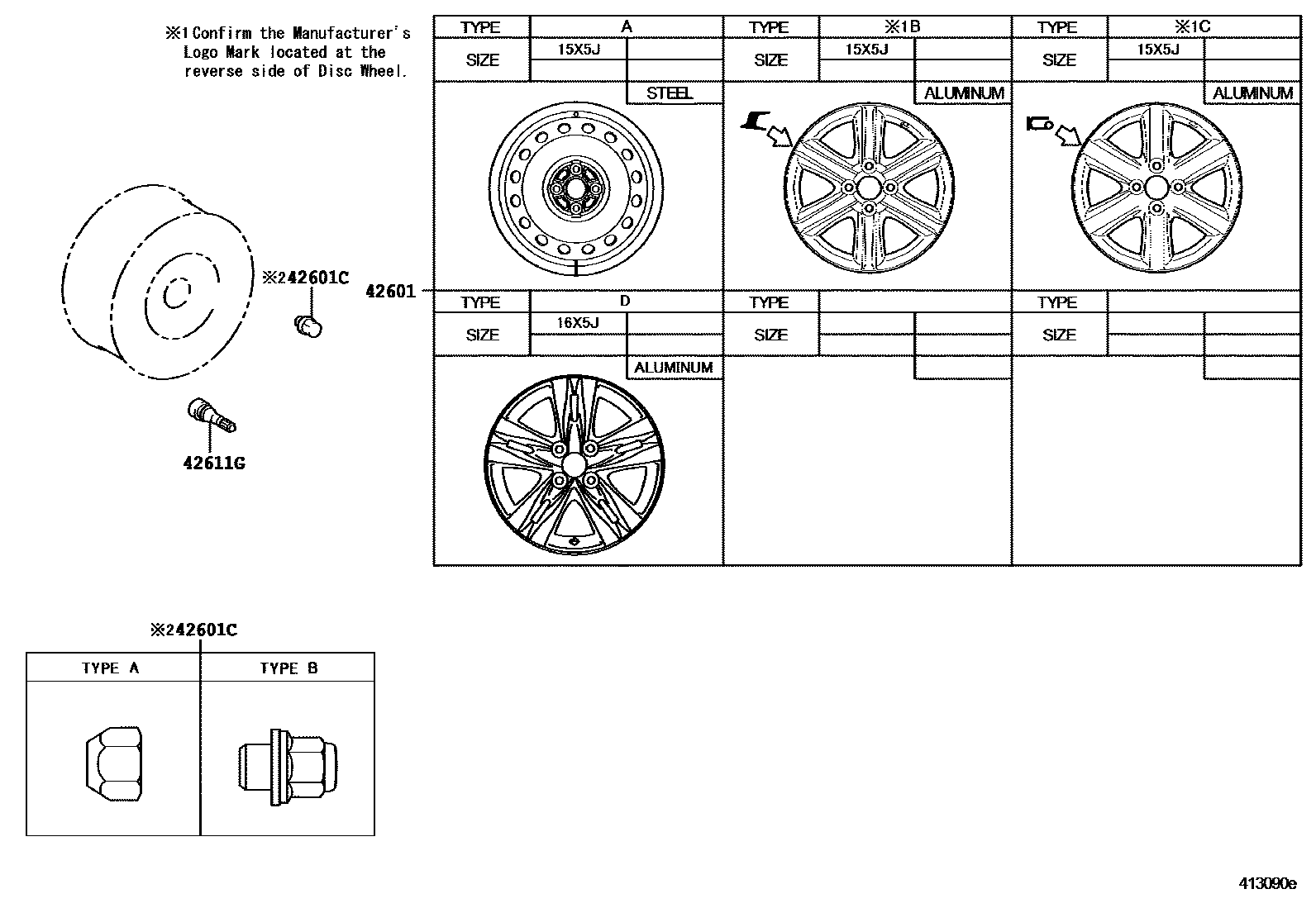

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-74020iKGJ10,NUJ10200811-201405

15X5J, NO PAINT REQ.,TYPE B:REFER ILLUST.

main42611-74030iKGJ10,NUJ10200811-201405

15X5J, NO PAINT REQ.,TYPE C:REFER ILLUST.

main42611-74040iNGJ10200905-201405

16X5J, NO PAINT REQ.,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iKGJ10,NGJ10,NUJ10200811-201405

TYPE B:REFER ILLUST.

main90942-01033iKGJ10,NGJ10,NUJ10200811-201405

TIRE & DISC WHEEL-175/65R15 5J,TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iKGJ10,NGJ10,NUJ10200811-201405

3 parts on this diagram · 3 diagrams in section
