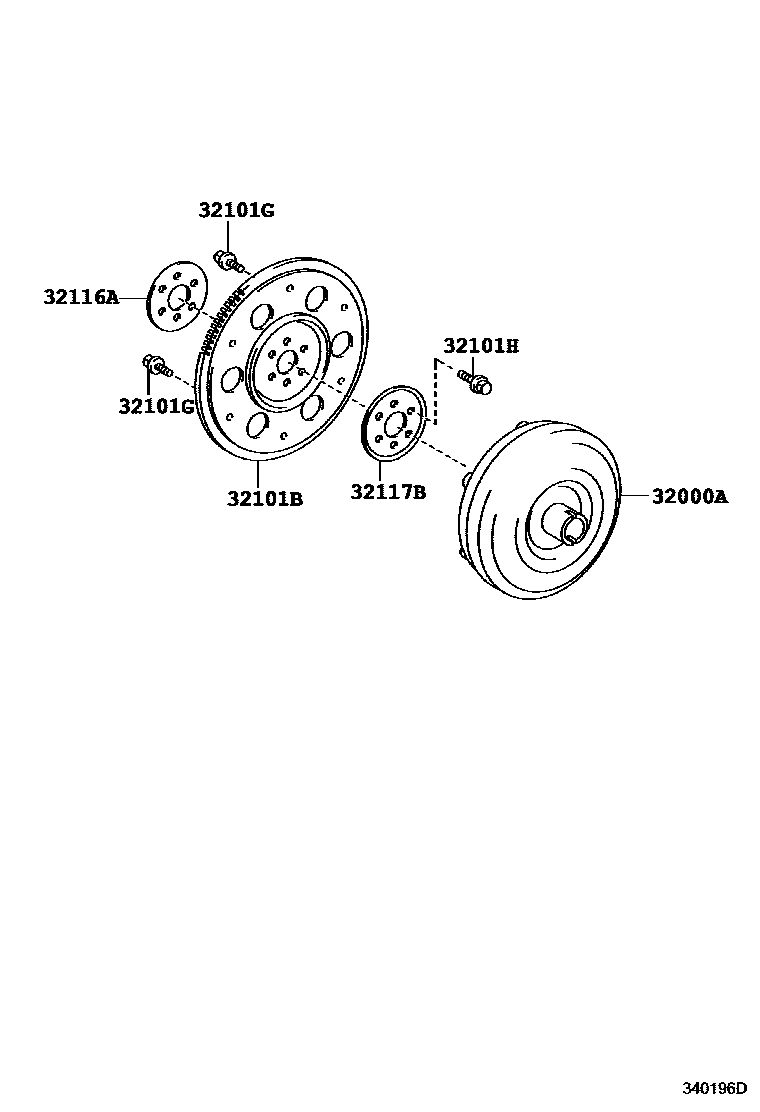

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K41A 0002 1K41B

32000ACONVERTER ASSY, TORQUE

main32000-74010iKGJ10..CVFC¥106,000200811-201007

sub32000-74011¥106,000

main32000-74011iKGJ10..CVFC¥106,000201007-201405

main32000-74020iNGJ10..CVFC¥106,000200905-201007

sub32000-74030¥106,000

main32000-74030iNGJ10..CVFC¥106,000201007-201405

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-74010iNGJ10..CVFC¥18,500200905-201009

sub32111-52110¥12,800

main32101-74010iNGJ10..CVFC¥18,500201009-201405

TYPE A:REFER ILLUST.

sub32111-52110¥12,800

main32111-52120iNGJ10..N¥15,400201303-201405

TYPE B:REFER ILLUST.

sub32111-52110¥12,800

main32111-74010iKGJ10..CVFC¥6,100200811-201405

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iKGJ10,NGJ10..CVFC¥80200811-201405

*8-1.25PX12-8.4,BLACK

main90119-08498iKGJ10,NGJ10..CVFC¥80200811-201405

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNGJ10..CVFC¥130200811-201405

(J)

main90105-10048iNGJ10..CVFC¥130201003-201405

(L)

main90105-A0022iNGJ10..CVFC200811-201003

(L)

sub90105-10048¥130

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNGJ10..CVFC¥610200905-201405

main32116-52010iKGJ10..CVFC¥470200811-201405

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNGJ10..CVFC¥800200905-201405

main32117-52010iKGJ10..CVFC¥930200811-201405

6 parts on this diagram · 2 diagrams in section
