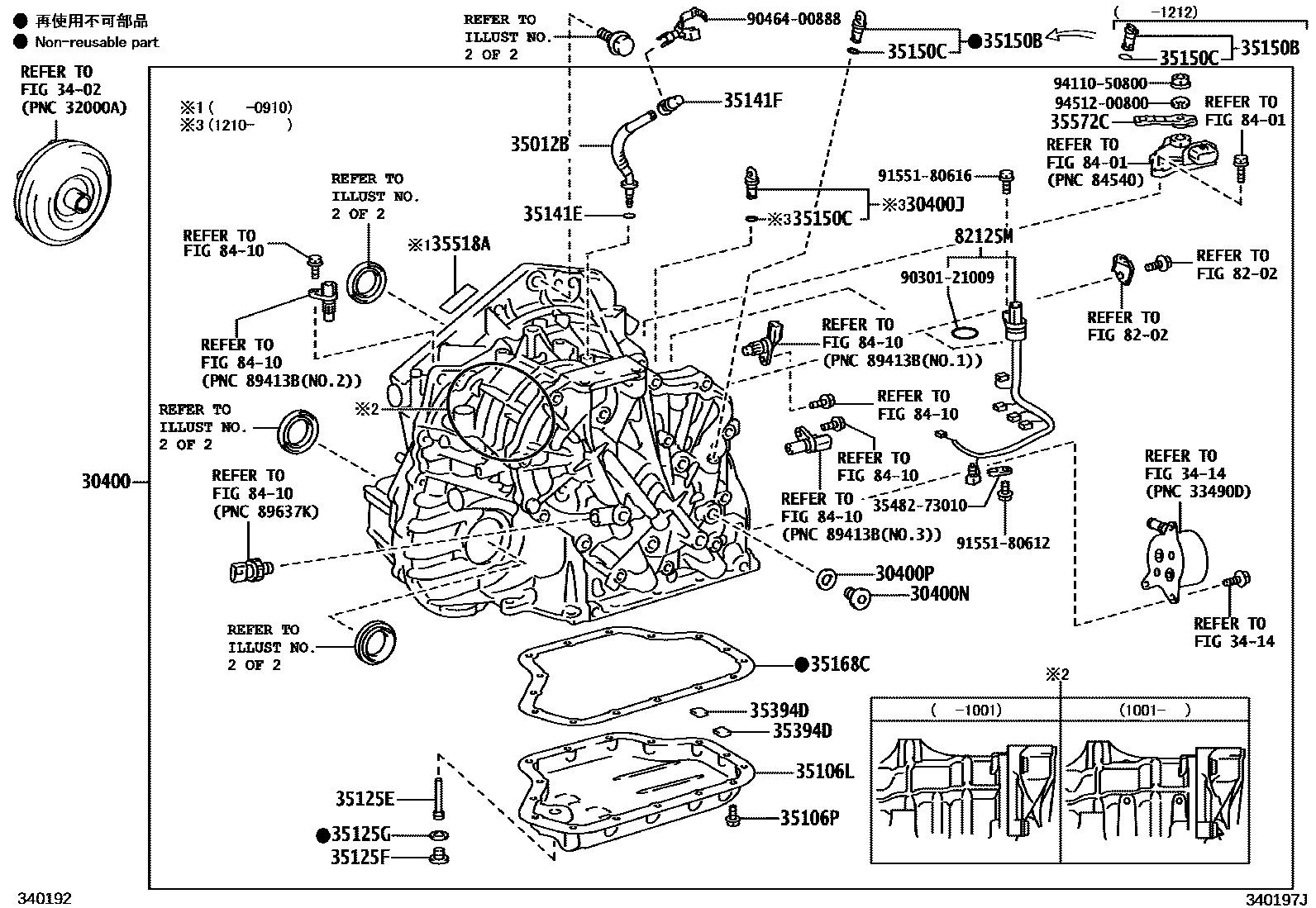

TRANSAXLE ASSY(CVT)

0001 1K41A,K41B 0002 1K41A,K41B

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-74030iNGJ10..CVFC200905-201001

K41B

sub30400-74080

main30400-74031iNGJ10..CVFC201001-201011

K41B

sub30400-74032

main30400-74032iNGJ10..CVFC201011-201209

K41B

sub30400-74150

main30400-74040iKGJ10..CVFC200811-201001

K41A

sub30400-74090

main30400-74041iKGJ10..CVFC201001-201011

K41A

sub30400-74042

main30400-74042iKGJ10..CVFC201011-201209

K41A

sub30400-74110

main30400-74110iKGJ10..N201209-201405

K41A

main30400-74150iNGJ10..N201209-201405

K41B

30400JPLUG, TRANSAXLE HOLE

main35150-48010iKGJ10,NGJ10..N¥280201210-201405

30400NPLUG, REFILL(CVT)

main90341-18061iKGJ10,NGJ10..CVFC¥310200811-201209

main90341-18077iKGJ10,NGJ10..N¥190201209-201405

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iKGJ10,NGJ10..CVFC¥110200811-201405

3402

3414

35012BHOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-74010iKGJ10,NGJ10..CVFC¥900200811-201405

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-74020iKGJ10,NGJ10..CVFC200811-201405

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iKGJ10,NGJ10..CVFC¥80200811-201405

35125ETUBE, OVERFLOW(CVT)

main35125-74010iKGJ10,NGJ10..CVFC¥300200811-201405

35125FPLUG, OVERFLOW(CVT)

main90341-12034iKGJ10,NGJ10..CVFC¥190200811-201405

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iKGJ10,NGJ10..CVFC¥90200811-201405

35141ERING, O(FOR BREATHER PLUG)

main90301-06010iKGJ10,NGJ10..CVFC¥140200811-201405

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iKGJ10,NGJ10..CVFC¥220200811-201405

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iKGJ10,NGJ10..CVFC¥340200811-201212

main35150-48010iKGJ10,NGJ10..N¥280201212-201405

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iKGJ10,NGJ10..CVFC¥140200811-201405

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-74010iKGJ10,NGJ10..CVFC¥740200811-201405

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010iKGJ10,NGJ10..CVFC¥280200811-201405

35518ALABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2

main35518-63010iKGJ10,NGJ10..CVFC¥220200811-200910

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-74010iKGJ10,NGJ10..CVFC¥940200811-201405

8202

82125MWIRE, TRANSMISSION

main82125-74010iKGJ10,NGJ10..CVFC¥1,710200811-201405

8401

8410

3548273010VALVE, GOVERNOR

main35482-73010¥170

9030121009

main90301-21009¥170

9046400888

main90464-00888¥190

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9411050800

main94110-50800¥80

9451200800

main94512-00800¥80

31 parts on this diagram · 2 diagrams in section
