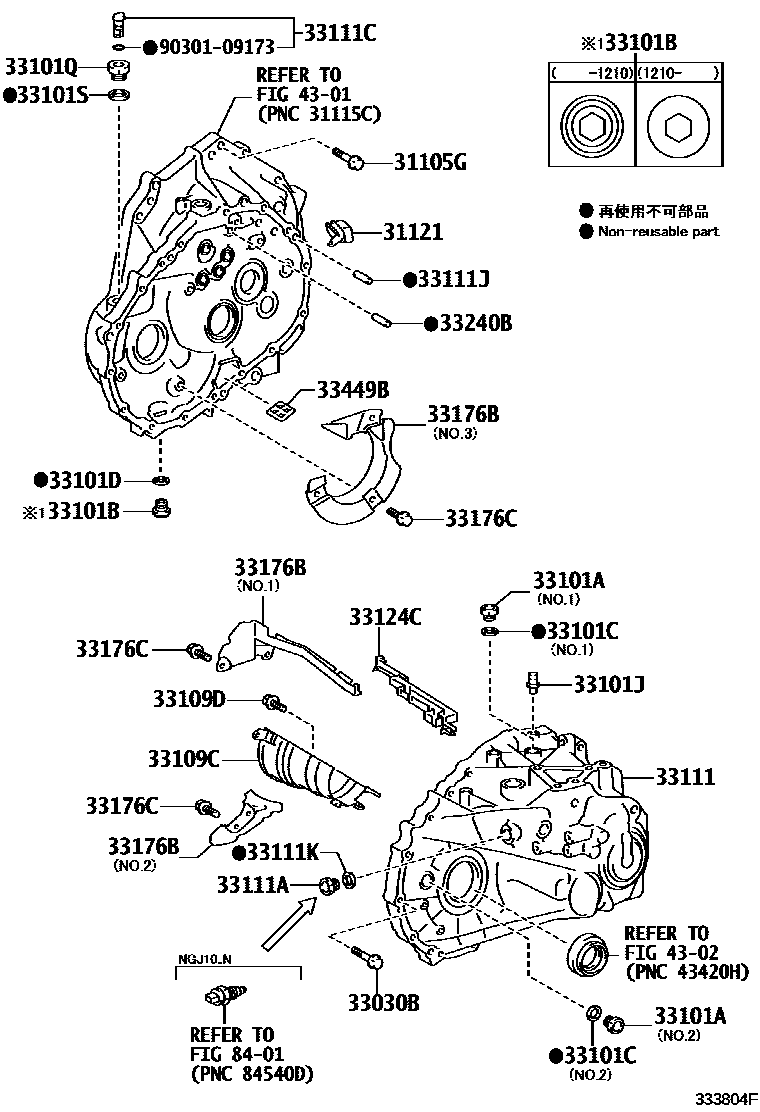

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91552-81045iNUJ10¥120200811-201205

*10-1.25PX45-26

main91552-81245iKGJ10,NGJ10..MTM¥190200811-201405

*12-1.25PX45-30

31121COVER, CLUTCH HOUSING, NO.1

main31121-74010iKGJ10,NGJ10,NUJ10..MTM200811-201405

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840iKGJ10,NGJ10,NUJ10..MTM¥80200811-201405

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iKGJ10,NGJ10,NUJ10..MTM¥210200811-201405

NO.1

main90341-18033iKGJ10,NGJ10,NUJ10..MTM¥190200811-201405

NO.2

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18016iKGJ10,NGJ10,NUJ10..MTM¥190200811-201210

main90341-18023iKGJ10,NGJ10..R¥190201210-201405

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iKGJ10,NGJ10..R¥100201210-201405

NO.2

main90430-14003iKGJ10,NGJ10,NUJ10..MTM¥160200811-201405

NO.1

main90430-18008iKGJ10,NGJ10,NUJ10..MTM¥110200811-201210

NO.2

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main12157-10010iKGJ10,NGJ10..R¥100201210-201405

main90430-18008iKGJ10,NGJ10,NUJ10..MTM¥110200811-201210

33101JPLUG, BREATHER

main90930-03133iKGJ10,NGJ10,NUJ10..MTM¥370200811-201405

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-22010iKGJ10,NGJ10,NUJ10..MTM¥390200811-201405

33101SGASKET(FOR TRANSMISSION CASE PLUG NO.1)

main90430-22002iKGJ10,NGJ10,NUJ10..MTM¥280200811-201405

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-74010iKGJ10,NGJ10,NUJ10..MTM200811-201405

33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)

main91551-80816iKGJ10,NGJ10,NUJ10..MTM¥80200811-201405

33111CASE, MANUAL TRANSMISSION

main33111-74010iKGJ10,NGJ10,NUJ10..MTM200811-201003

sub33111-74011¥43,700

main33111-74011iKGJ10,NGJ10,NUJ10..MTM¥43,700201003-201405

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iNGJ10..R;KGJ10,NUJ10..MTM¥180200811-201405

33111CPLUG(FOR TRANSMISSION CASE)

main35150-44010iKGJ10,NGJ10,NUJ10..MTM¥340200811-201211

main35150-48010iKGJ10,NGJ10..R¥280201212-201405

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iKGJ10,NGJ10,NUJ10..MTM¥120200811-201405

L=23,OD=8

33111KGASKET(FOR TRANSMISSION CASE)

main12157-10010iKGJ10,NGJ10..R¥100201210-201405

main90430-18008iNGJ10..R;KGJ10,NUJ10..MTM¥110200811-201210

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-74010iKGJ10,NGJ10,NUJ10..MTM¥620200811-201405

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-74020iKGJ10,NGJ10,NUJ10..MTM200811-201405

NO.1

main33176-74030iKGJ10,NGJ10,NUJ10..MTM200811-201405

NO.3

main33176-74040iKGJ10,NGJ10,NUJ10..MTM200811-201405

NO.2

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main91551-80816iKGJ10,NGJ10,NUJ10..MTM¥80200811-201405

33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)

main90250-08054iKGJ10,NGJ10,NUJ10..MTM¥120200811-201405

33449BMAGNET, TRANSMISSION

main33449-20010iKGJ10,NGJ10,NUJ10..MTM¥450200811-201405

4301

4302

8401

9030109173

main90301-09173¥140

26 parts on this diagram · 1 diagram in section
