TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

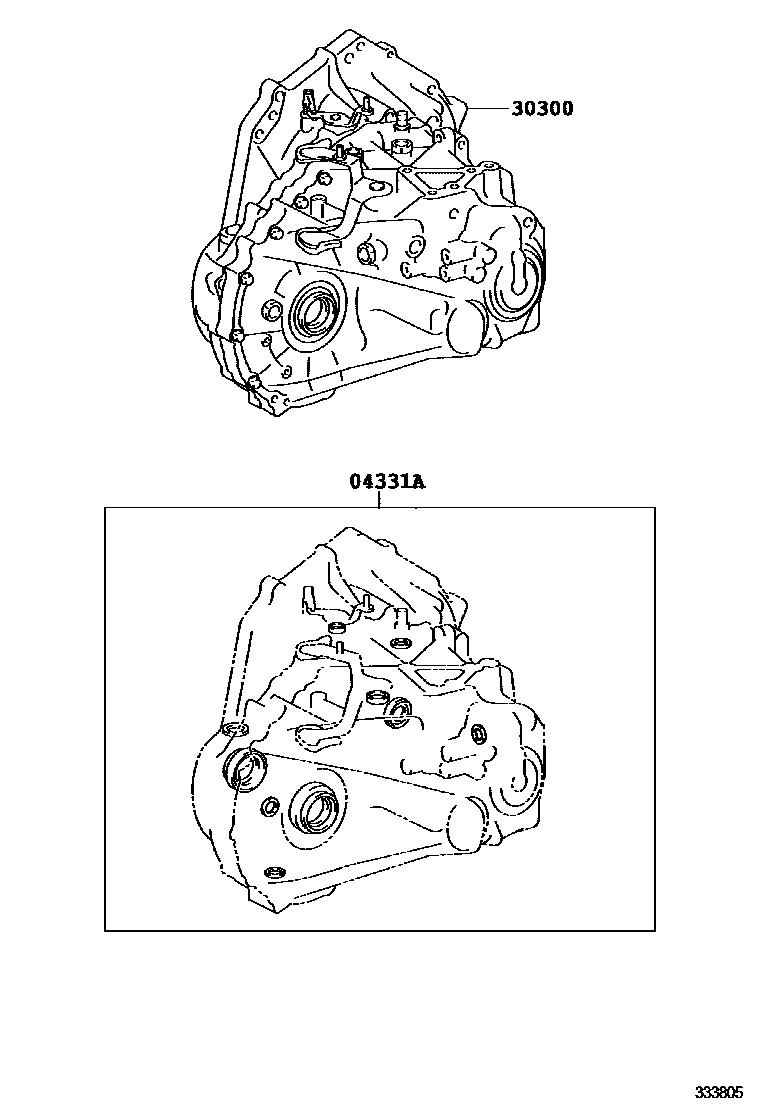

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-74010i200811-201210
sub04331-74011
main04331-74011i201210-201405
sub04331-74012
main04331-74020i200811-201205
sub04331-74021
30300TRANSAXLE ASSY, MANUAL
main30300-74010i200811-201005
EE53
sub30300-74011
main30300-74011i201005-201205
EE53
sub30300-74100
main30300-74020i200811-201005
EE65
sub30300-74021
main30300-74021i201005-201205
EE65
sub30300-74070
main30300-74030i200811-201005
EE53
sub30300-74031
main30300-74031i201005-201405
EE53
sub30300-74110
main30300-74040i200905-201005
EE63
sub30300-74041
main30300-74041i201005-201205
EE63
sub30300-74080
main30300-74050i201205-201405
EE63
sub30300-74090

2 parts on this diagram · 1 diagram in section
