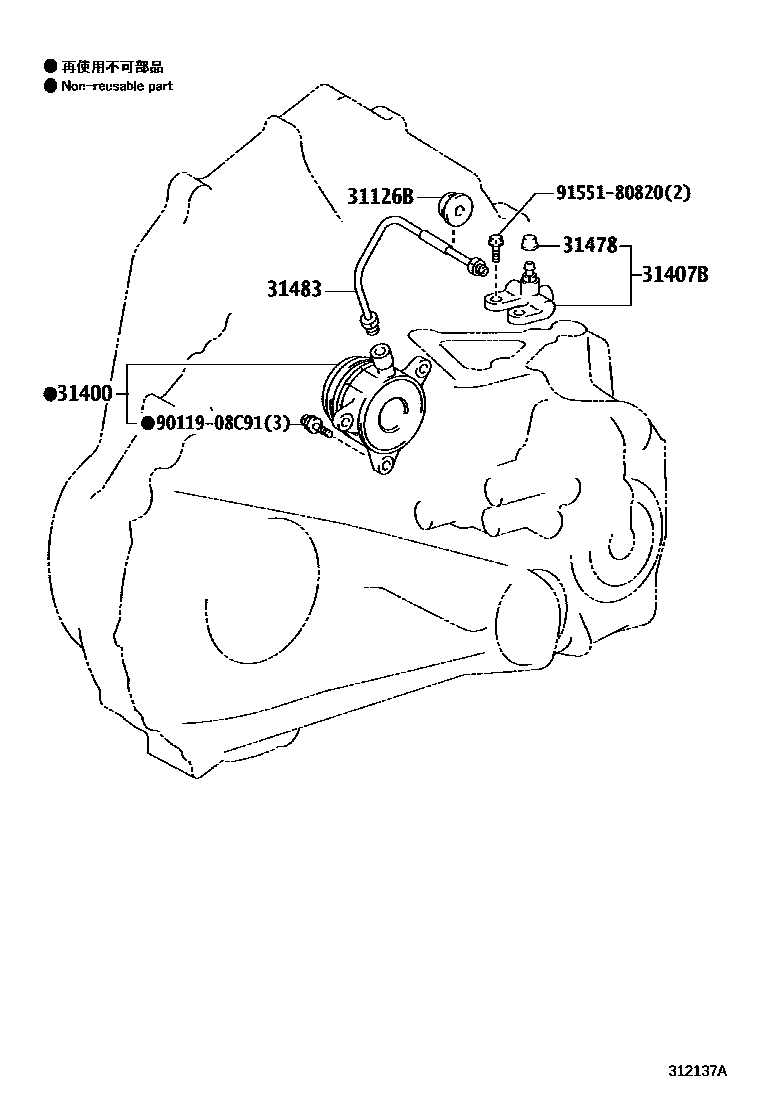

CLUTCH RELEASE CYLINDER

31126BBOOT, CLUTCH TUBE

main31126-20090iKGJ10,NGJ10,NUJ10..MTM200811-201405

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-79005iKGJ10,NGJ10,NUJ10..MTM200811-201005

sub31400-79015

sub31482-74040

main31400-79015iKGJ10,NGJ10,NUJ10..MTM201005-201405

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-74010iKGJ10,NGJ10,NUJ10..MTM200811-201405

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKGJ10,NGJ10,NUJ10..MTM200811-201405

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-74030iKGJ10,NGJ10,NUJ10..MTM200811-201005

main31482-74040iKGJ10,NGJ10,NUJ10..MTM201005-201405

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 1 diagram in section
