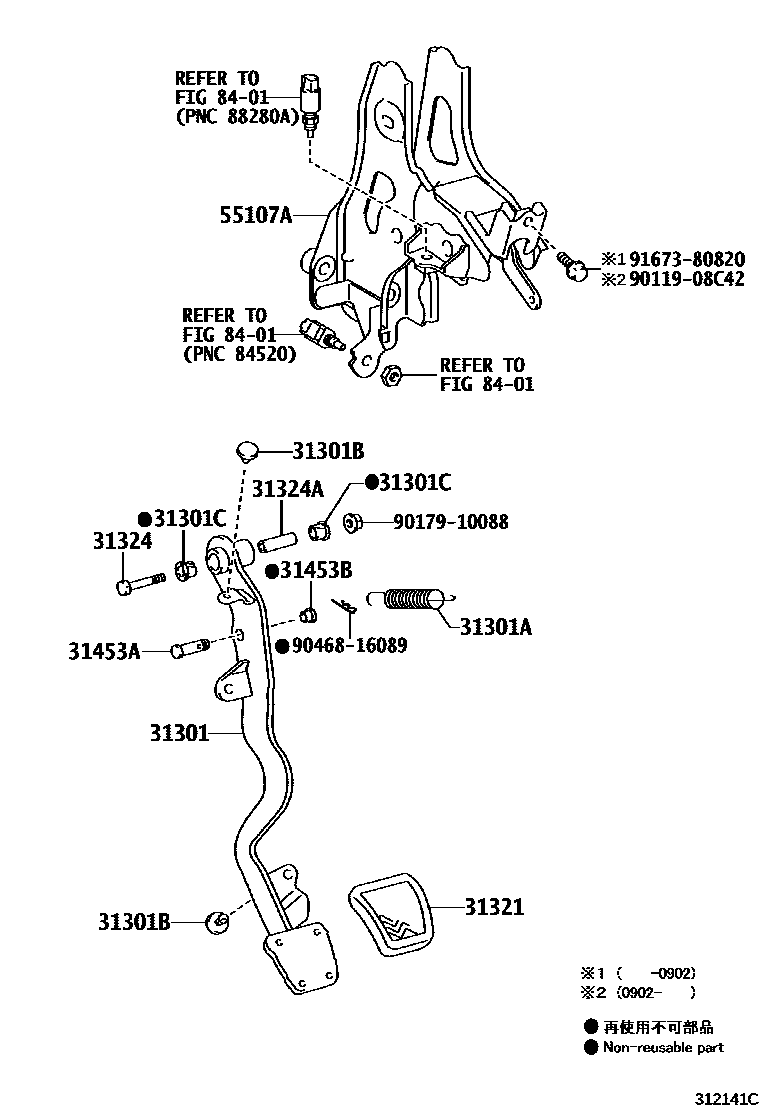

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-74010iKGJ10..LHD..5F;NGJ10..LHD..6F..N200811-201302

sub31301-74011

main31301-74011iKGJ10..LHD..R201303-201306

sub31301-74012

main31301-74012iKGJ10..LHD..R201307-201405

main31301-74020iNUJ10..LHD200811-201205

main31301-74030iKGJ10..RHD..5F;NGJ10..RHD..6F..N200811-201302

sub31301-74031

main31301-74031iKGJ10..RHD..R201303-201405

main31301-74040iNUJ10..RHD200811-201003

main31301-74050iNGJ10..LHD..R201205-201302

sub31301-74051

main31301-74051iNGJ10..LHD..R201303-201306

sub31301-74052

main31301-74052iNGJ10..LHD..R201307-201405

main31301-74060iNGJ10..RHD..R201205-201302

sub31301-74061

main31301-74061iNGJ10..RHD..R201303-201405

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14051iKGJ10..5F;NGJ10..6F..N200811-201405

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKGJ10,NGJ10,NUJ10..MTM200811-201405

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKGJ10,NGJ10,NUJ10..MTM200811-201405

31321PAD, CLUTCH PEDAL

main31321-52010iKGJ10,NGJ10,NUJ10..MTM200811-201405

31324SHAFT, CLUTCH PEDAL

main90101-10039iKGJ10,NGJ10,NUJ10..MTM200811-201405

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKGJ10,NGJ10,NUJ10..MTM200811-201405

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iKGJ10,NGJ10,NUJ10..MTM200811-201405

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iKGJ10,NGJ10,NUJ10..MTM200811-201405

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-74010iKGJ10..LHD..5F;NGJ10..LHD..6F..N200811-201405

main55107-74020iNUJ10..LHD;NGJ10..LHD..R200811-201405

main55107-74030iKGJ10..RHD..5F;NGJ10..RHD..6F..N200811-201405

main55107-74040iNUJ10..RHD;NGJ10..RHD..R200811-201405

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9046816089

main90468-16089

9167380820

main91673-80820

15 parts on this diagram · 8 diagrams in section
