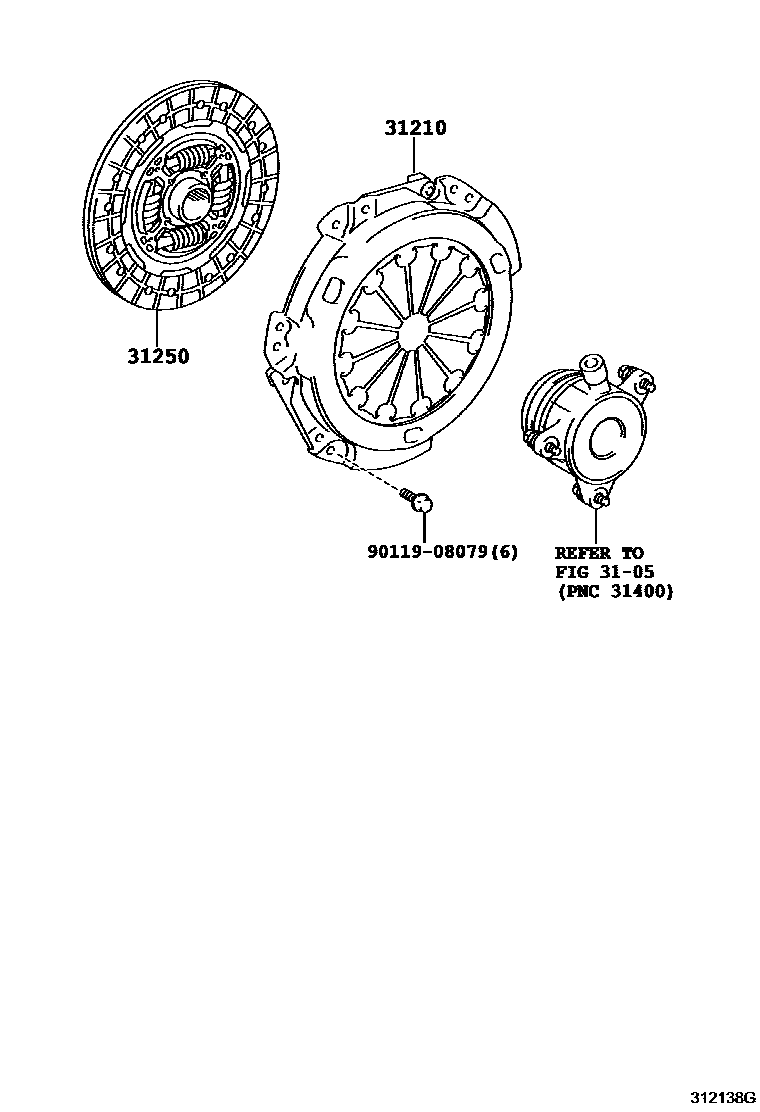

CLUTCH & RELEASE FORK

Parts diagram
3105
31210COVER ASSY, CLUTCH
main31210-12310i201205-201405
main31210-52130i200905-201205
main31210-74010i200811-201107
sub31210-74011
main31210-74011i201108-201405
main31210-74020i200811-201205
31250DISC ASSY, CLUTCH
main31250-52120i200905-201009
sub31250-52210
main31250-52210i201010-201205
sub31250-52211
main31250-74010i200811-201405
main31250-74020i200811-201106
sub31250-74021
main31250-74021i201107-201205
sub31250-52270
main31250-74030i201205-201405
sub31250-12600
9011908079
main90119-08079

4 parts on this diagram · 2 diagrams in section
