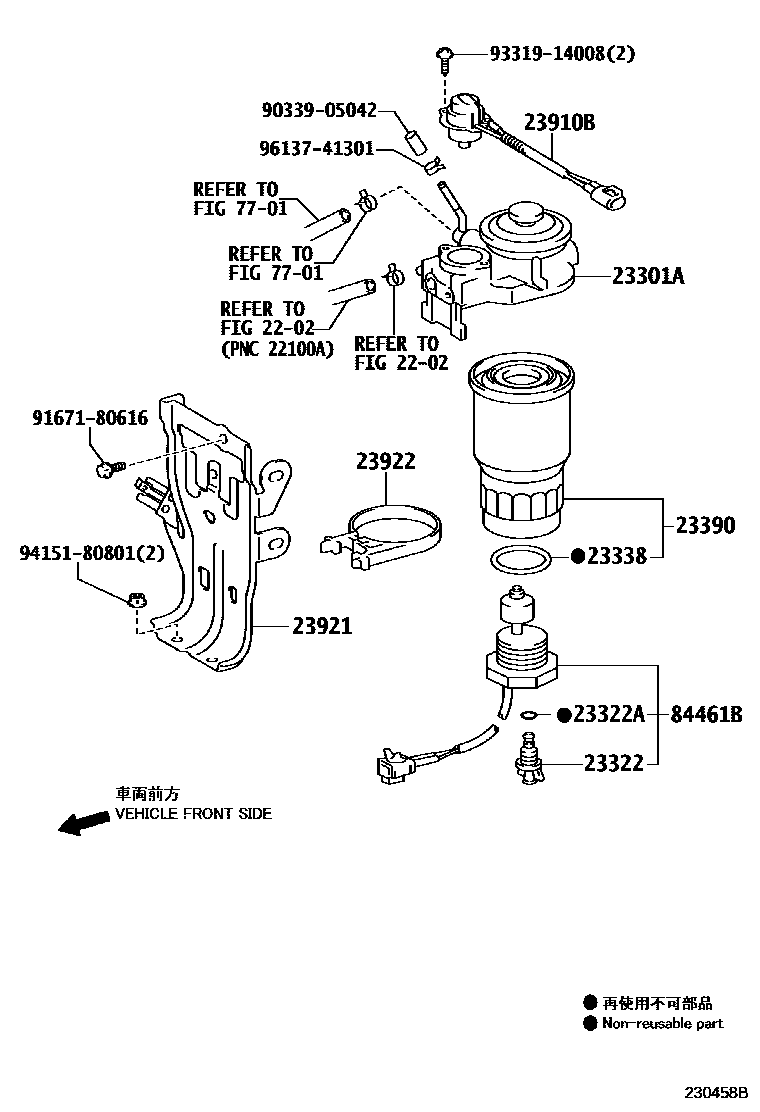

FUEL FILTER

2202

23301ACAP ASSY, FUEL FILTER

main23380-33050i1NDTV..NUJ10200811-201205

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NUJ10200811-201205

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NUJ10200811-201205

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NUJ10200811-201205

23390ELEMENT ASSY, FUEL FILTER

main23390-33060i1NDTV..NUJ10200811-201205

23910BHEATER ASSY, FUEL

main23910-27010i1NDTV..NUJ10200811-201205

23921SUPPORT, FUEL FILTER

main23921-33050i1NDTV..NUJ10200811-201205

23922SUPPORT, FUEL SEDIMENTER

main23922-33010i1NDTV..NUJ10200811-201205

7701

84461BSWITCH, LEVEL WARNING

main84461-26090iNUJ10200811-201205

sub84461-26091

9033905042

main90339-05042

9167180616

main91671-80616

9331914008

main93319-14008

9415180801

main94151-80801

9613741301

main96137-41301

16 parts on this diagram · 1 diagram in section
