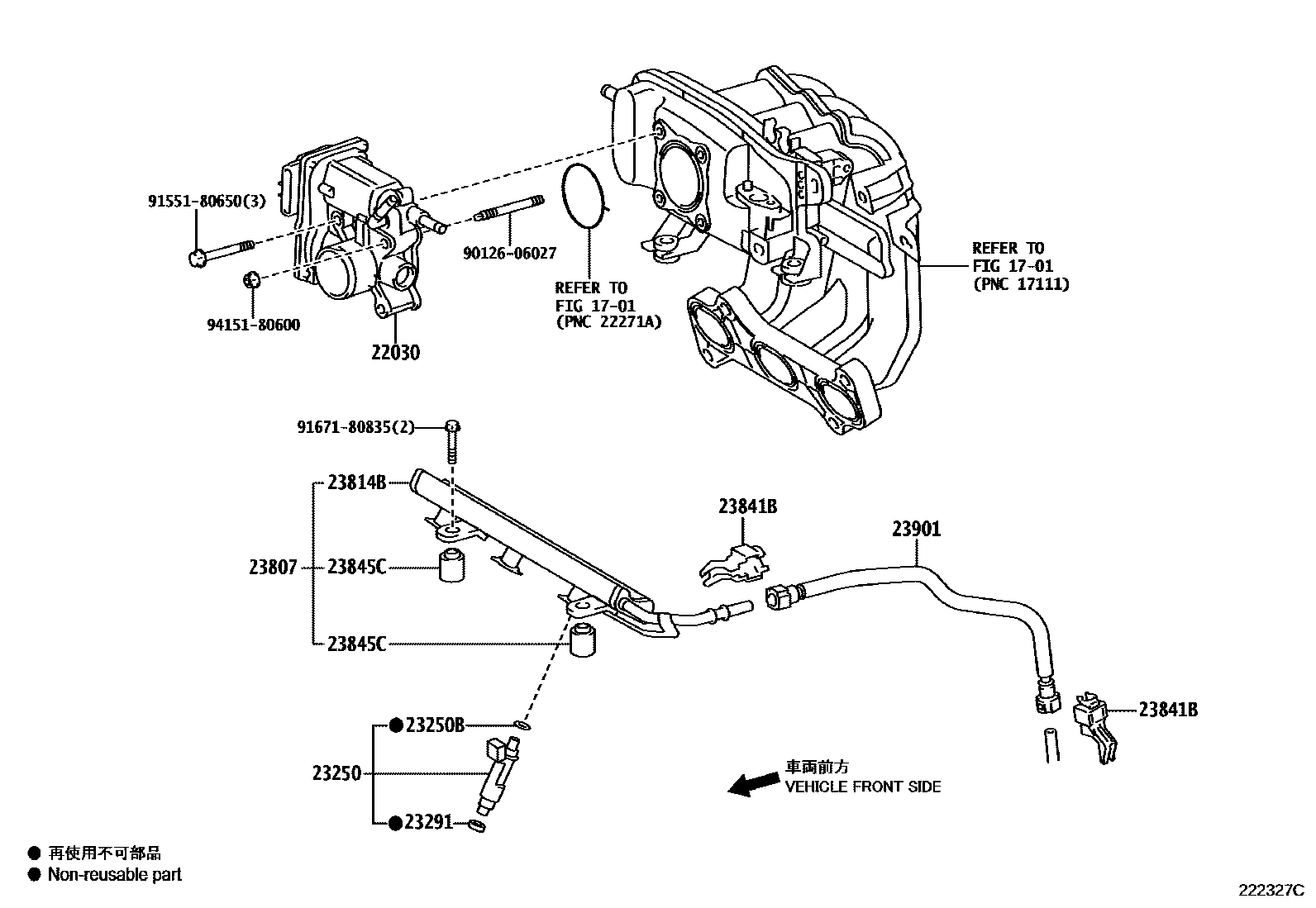

FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-40010i1KRFE..KGJ10¥83,600200811-201405

main22030-47020i1NRFE..NGJ10¥83,600200905-201405

23250INJECTOR ASSY, FUEL

main23209-49085i1KRFE..KGJ10¥20,100200811-201405

main23209-49205i1NRFE..NGJ10¥16,800200905-201405

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1KRFE..KGJ10¥140200811-201405

main90301-07042i1NRFE..NGJ10¥140200905-201405

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i1NRFE..NGJ10¥240200905-201405

main23291-87701i1KRFE..KGJ10¥280200811-201405

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-40020i1KRFE..KGJ10¥10,200200811-200910

sub23807-40030¥10,200

main23807-40030i1KRFE..KGJ10¥10,200201309-201405

main23807-40030i1KRFE..KGJ10..R;1KRFE..KGJ10..CVFC¥10,200200910-201304

main23807-40030i1KRFE..KGJ10..5F..N¥10,200200910-201405

23814BPIPE, FUEL DELIVERY

main23814-40020i1KRFE..KGJ10¥9,800200811-200910

sub23814-40030¥9,800

main23814-40030i1KRFE..KGJ10¥9,800200910-201405

main23814-47020i1NRFE..NGJ10¥10,800200905-201405

sub23814-47050¥9,400

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NRFE..NGJ10¥220200905-201009

main23841-21050i1KRFE..KGJ10¥220200811-201009

main23841-36010i1KRFE..KGJ10¥190201010-201405

23845CINSULATOR, FUEL PIPE

main23845-40010i1KRFE..KGJ10¥440200811-201405

23901TUBE SUB-ASSY, FUEL

main23901-40030i1KRFE..KGJ10¥5,100200811-201405

9012606027

main90126-06027¥80

9155180650

main91551-80650¥80

9167180835

main91671-80835¥100

9415180600

main94151-80600¥60

14 parts on this diagram · 3 diagrams in section
