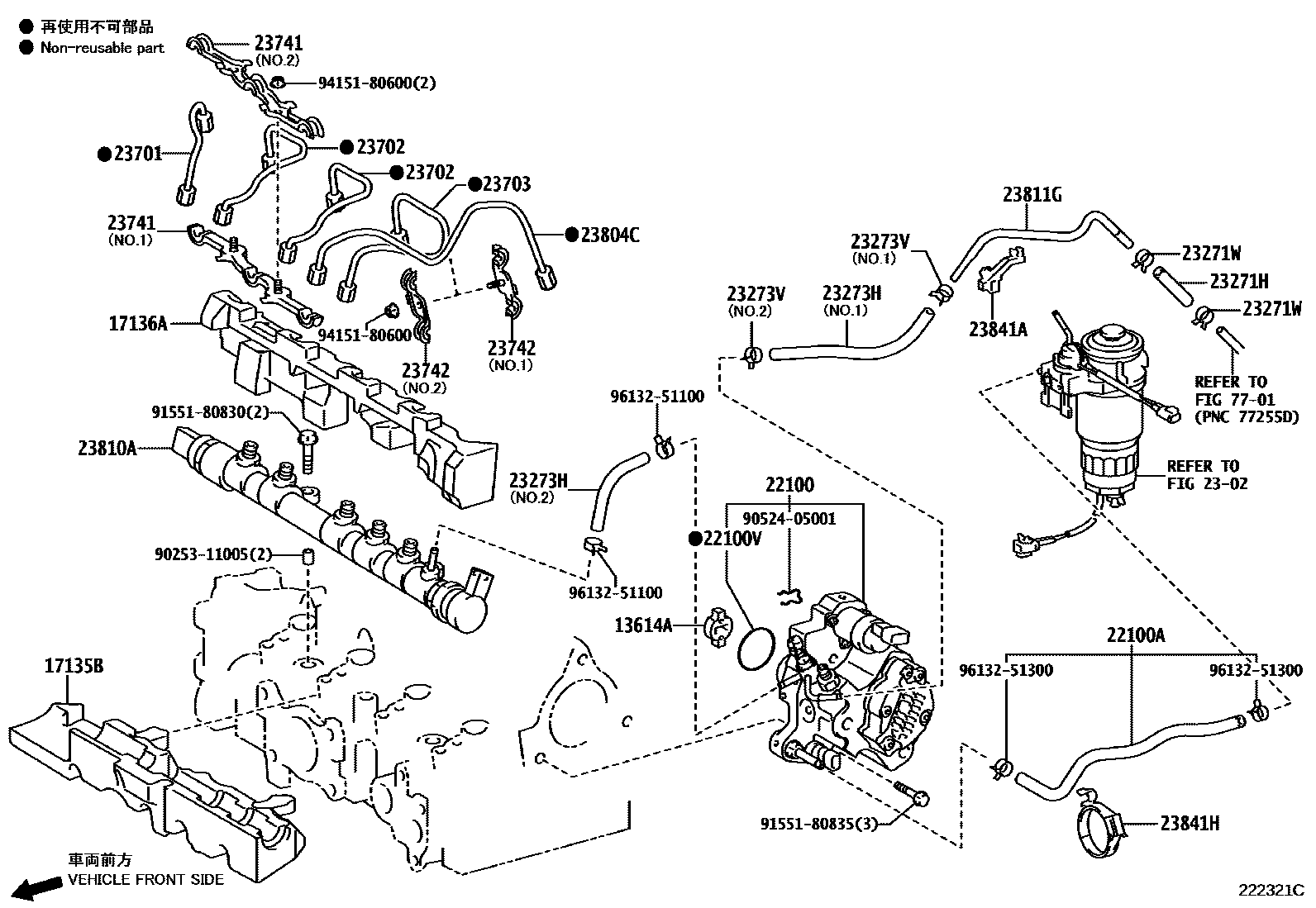

INJECTION PUMP ASSEMBLY
13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1
17136AINSULATOR, INTAKE MANIFOLD, NO.2
22100PUMP ASSY, INJECTION OR SUPPLY
(L)
(J)
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100VRING, O(FOR INJECTION PUMP)
2302
23271HHOSE, FUEL, NO.1
23271WCLIP(FOR FUEL HOSE NO.1)
23273HHOSE, FUEL, NO.2
NO.2
NO.1
23273VCLIP(FOR FUEL HOSE NO.2)
NO.1
NO.2
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23741CLAMP, INJECTION PIPE, NO.1
NO.1
NO.2
23742CLAMP, INJECTION PIPE, NO.2
NO.1
NO.2
23804CPIPE SUB-ASSY, FUEL INLET
23810ARAIL ASSY, COMMON
23811GPIPE, FUEL, NO.1
23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
23841HCLAMP, FUEL HOSE
7701
9025311005
main90253-11005
9052405001
main90524-05001
9155180830
main91551-80830
9155180835
main91551-80835
9415180600
main94151-80600
9613251100
main96132-51100
9613251300
main96132-51300
29 parts on this diagram · 1 diagram in section
