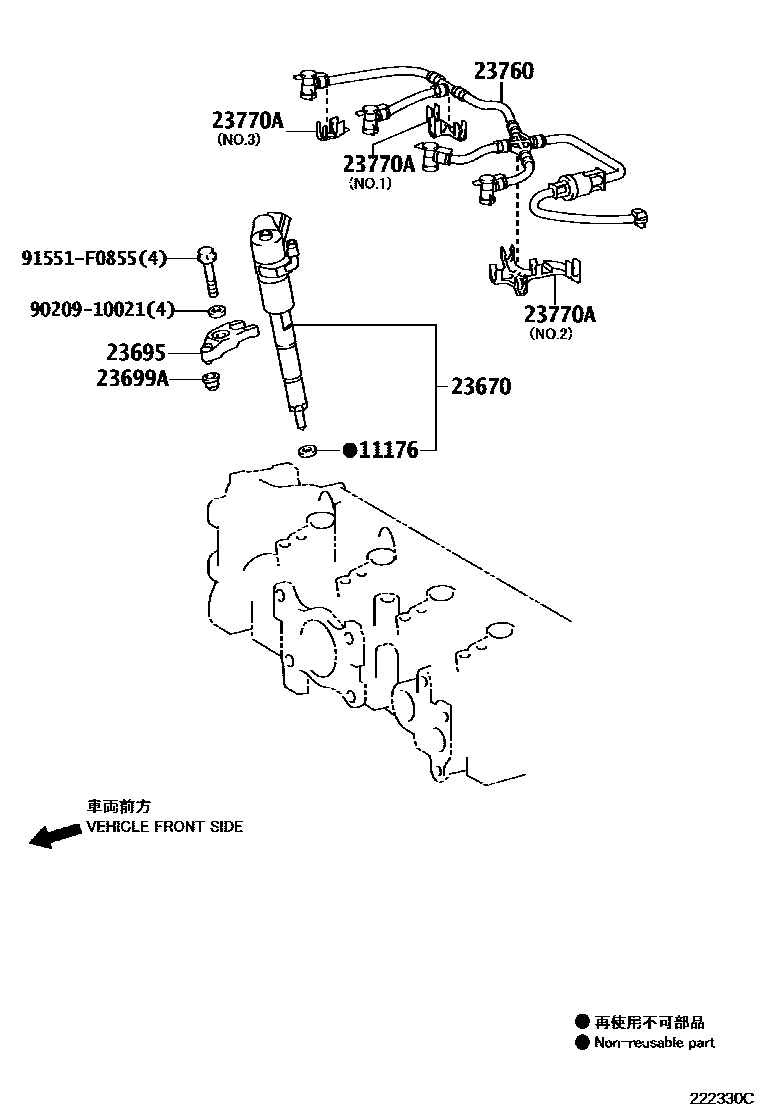

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-33010i1NDTV..NUJ10200811-201205

23670INJECTOR ASSY

main23670-09390i1NDTV..NUJ10201103-201205

(L)

main23670-39325i1NDTV..NUJ10200811-200911

sub23670-39415

main23670-39405i1NDTV..NUJ10201009-201112

(J)

main23670-39415i1NDTV..NUJ10200911-201009

(J)

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-33020i1NDTV..NUJ10200811-201205

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-33020i1NDTV..NUJ10200811-201205

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0W010i1NDTV..NUJ10201103-201205

(L)

main23760-33030i1NDTV..NUJ10200811-201103

main23760-33030i1NDTV..NUJ10201103-201112

(J)

23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)

main23841-33030i1NDTV..NUJ10200811-201205

NO.1

main23841-33040i1NDTV..NUJ10200811-201205

NO.2

main23841-33050i1NDTV..NUJ10200811-201205

NO.3

9020910021

main90209-10021

91551F0855

main91551-F0855

8 parts on this diagram · 1 diagram in section
