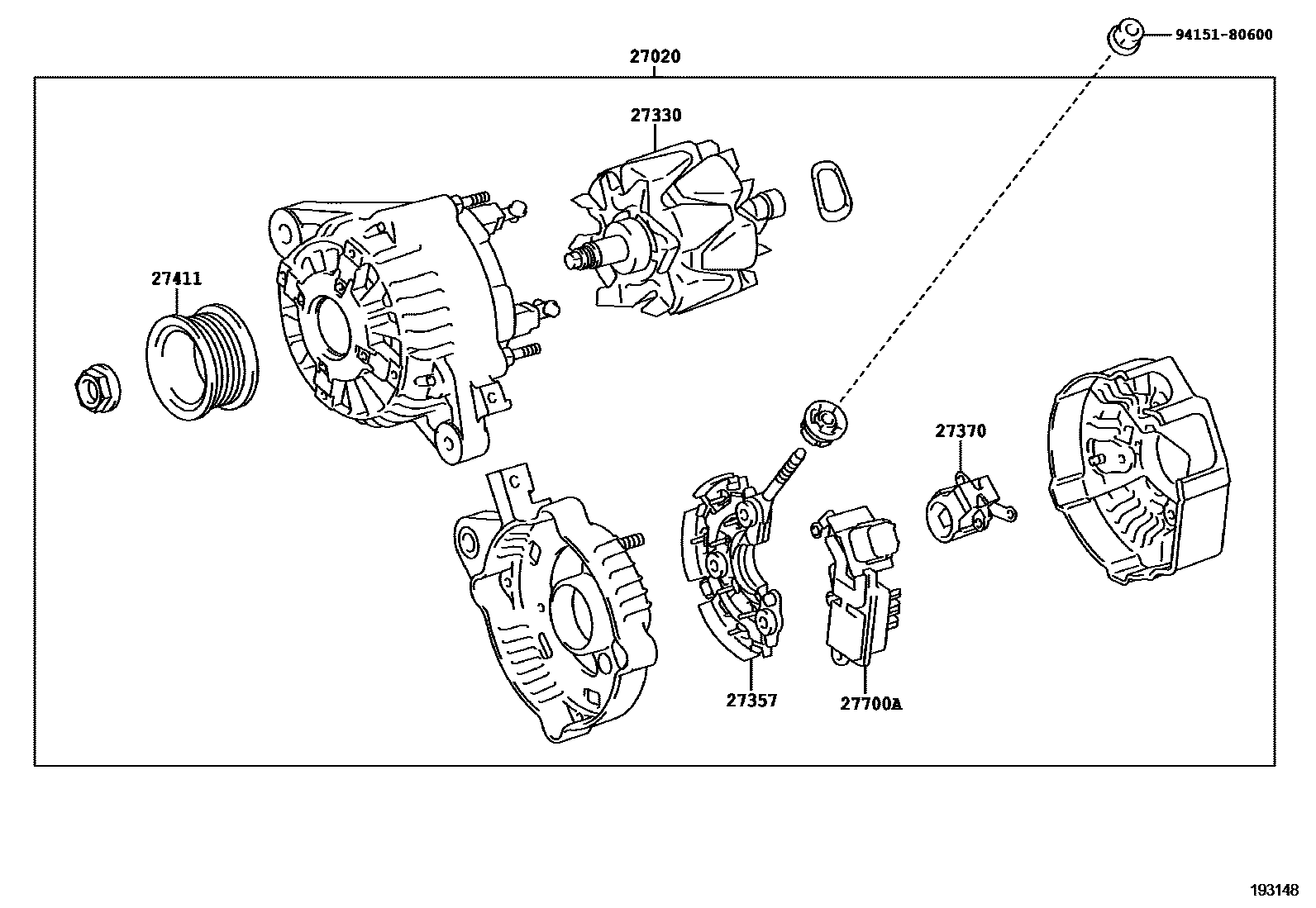

ALTERNATOR

0001 112V 80A 0002 112V 100A 0003 112V 80A 0005 112V 100A

27020ALTERNATOR ASSY

main27060-33090i1NDTV..NUJ10200811-201205

12V 100A

main27060-40060i1KRFE..KGJ10200811-201405

12V 80A

sub27060-40061

main27060-47040i1NRFE..NGJ10..R;1NRFE..NGJ10..CVFC200905-201405

12V 80A

sub27060-47041

main27060-47070i1NRFE..NGJ10..6F200905-201102

12V 100A

sub27060-47071

main27060-47071i1NRFE..NGJ10..6F201103-201205

12V 100A

sub27060-47072

27330ROTOR ASSY, ALTERNATOR

main27330-23130i1NRFE..NGJ10..6F200905-201205

main27330-30070i1NDTV..NUJ10200811-201205

main27330-30130i1NRFE..NGJ10..R;1KRFE,1NRFE..KGJ10,NGJ10..5F,CVFC200904-201405

main27330-62220i1KRFE..KGJ10200811-200904

sub27330-30130

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1NRFE..NGJ10..R;1KRFE,1NRFE..KGJ10,NGJ10..5F,CVFC200811-201405

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i1NRFE..NGJ10..R;1KRFE,1NRFE..KGJ10,NGJ10..5F,CVFC200811-201405

main27370-31220i1N#..NGJ10,NUJ10..6F200811-201205

27411PULLEY, ALTERNATOR

main27411-16191i1KRFE..KGJ10200811-201405

main27411-47160i1NRFE..NGJ10..R;1NRFE..NGJ10..CVFC200905-201405

27700AREGULATOR ASSY, GENERATOR

main27700-40040i1NRFE..NGJ10..R;1KRFE,1NRFE..KGJ10,NGJ10..5F,CVFC200811-201405

9415180600

main94151-80600

7 parts on this diagram · 4 diagrams in section
