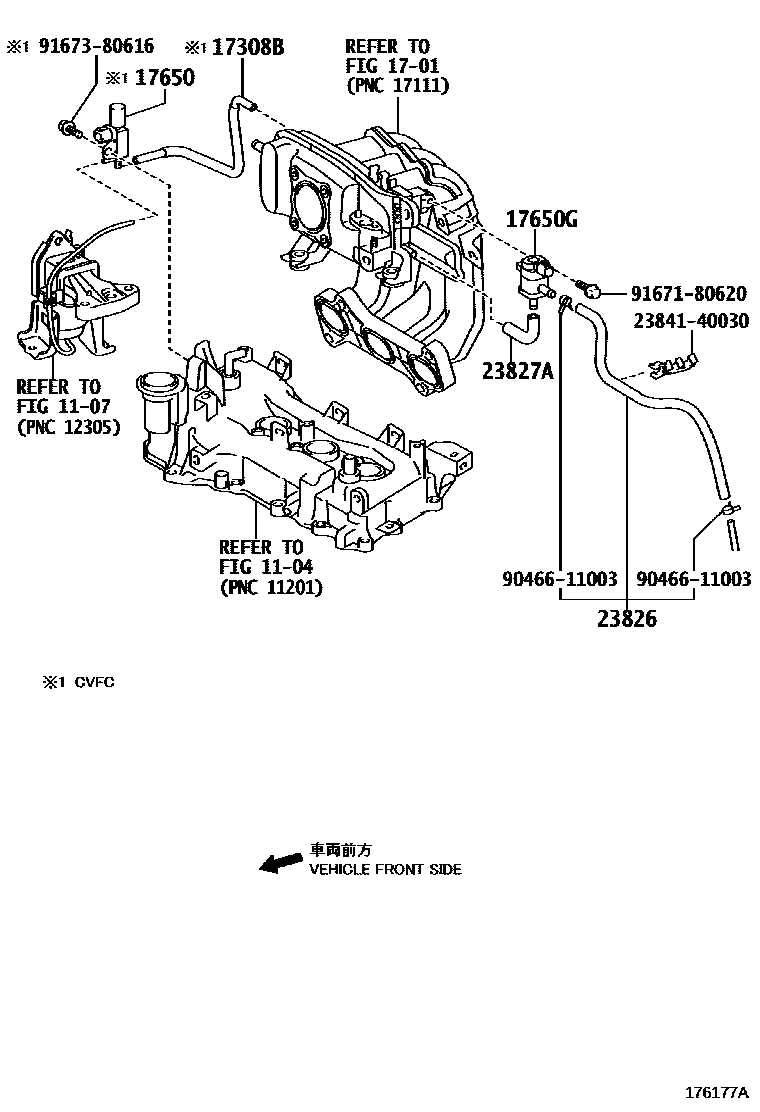

VACUUM PIPING

0001 1 0002 1 0003 1

1104

1107

1701

17308BHOSE SUB-ASSY, VACUUM

main17308-40010i1KRFE..KGJ10..CVFC200811-201405

17650VALVE ASSY, VACUUM SWITCHING

main25860-40010i1KRFE..KGJ10..CVFC200811-201405

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12280i1KRFE..KGJ10200811-201405

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-40020i1KRFE..KGJ10200811-201405

main23826-47040i1NRFE..NGJ10200905-201405

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-40040i1KRFE..KGJ10200811-201405

main23827-47040i1NRFE..NGJ10200905-201405

2384140030CLAMP, FUEL PIPE(HOSE), NO.1

main23841-40030

9046611003

main90466-11003

9167180620

main91671-80620

9167380616

main91673-80616

12 parts on this diagram · 3 diagrams in section
