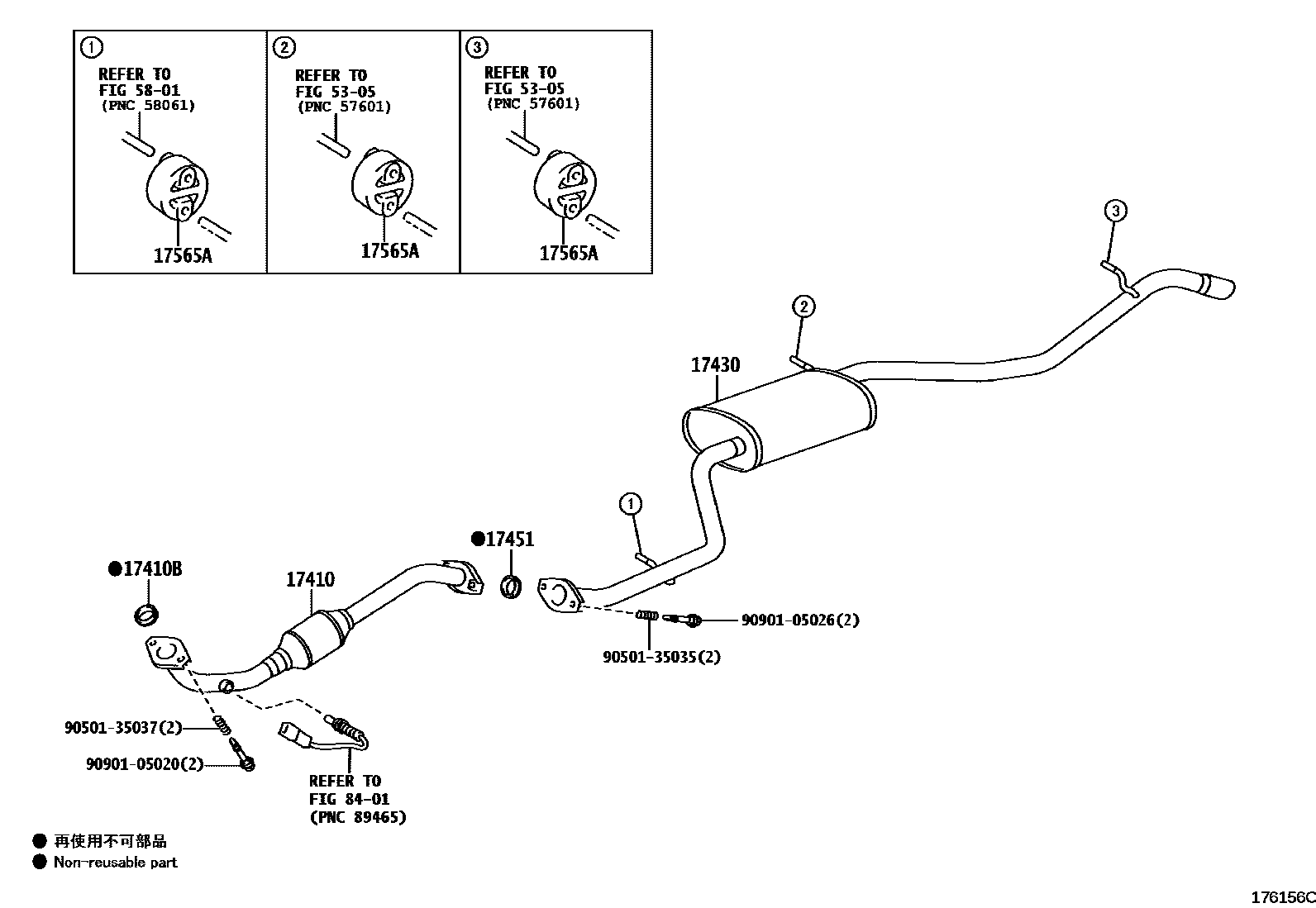

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-40130i1KRFE..KGJ10200811-201005

*114=TOYOTA/CE5/Y

sub17410-40200

main17410-40200i1KRFE..KGJ10201005-201405

*114=TOYOTA/CG6/Y

main17410-47080i1NRFE..NGJ10200905-201005

*114=TOYOTA/CE5/Y

main17410-47190i1NRFE..NGJ10201005-201405

*114=TOYOTA/CG6/Y

17410BGASKET, EXHAUST PIPE

main17451-21070i1NDTV..NUJ10200811-201205

main17451-21080i1NRFE..NGJ10200905-201405

main17451-40010i1KRFE..KGJ10200811-201405

17430PIPE ASSY, EXHAUST, TAIL

main17430-33110i1NDTV..NUJ10..LHD200811-201009

main17430-33120i1NDTV..NUJ10..RHD200811-201003

*114=TOYOTA/GD7/Y

sub17430-33160

main17430-33160i1NDTV..NUJ10201009-201205

*114=TOYOTA/ZB2/Y

main17430-40070i1KRFE..KGJ10200811-201004

sub17430-40071

main17430-40071i1KRFE..KGJ10201005-201405

main17430-47070i1NRFE..NGJ10200905-201005

main17430-47130i1NRFE..NGJ10201005-201405

17451GASKET, EXHAUST PIPE

main17451-23041i1NRFE..NGJ10200905-201009

sub17451-23042

main17451-23042i1NRFE..NGJ10201010-201405

sub17451-23043

main17451-40031i1KRFE..KGJ10200811-201010

sub17451-40032

main17451-40032i1KRFE..KGJ10201011-201405

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-40010i1KRFE,1N#..KGJ10,NGJ10,NUJ10200811-201011

sub17565-47010

main17565-47010i1KRFE,1N#..KGJ10,NGJ10,NUJ10201012-201405

5305

5801

8401

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 4 diagrams in section
