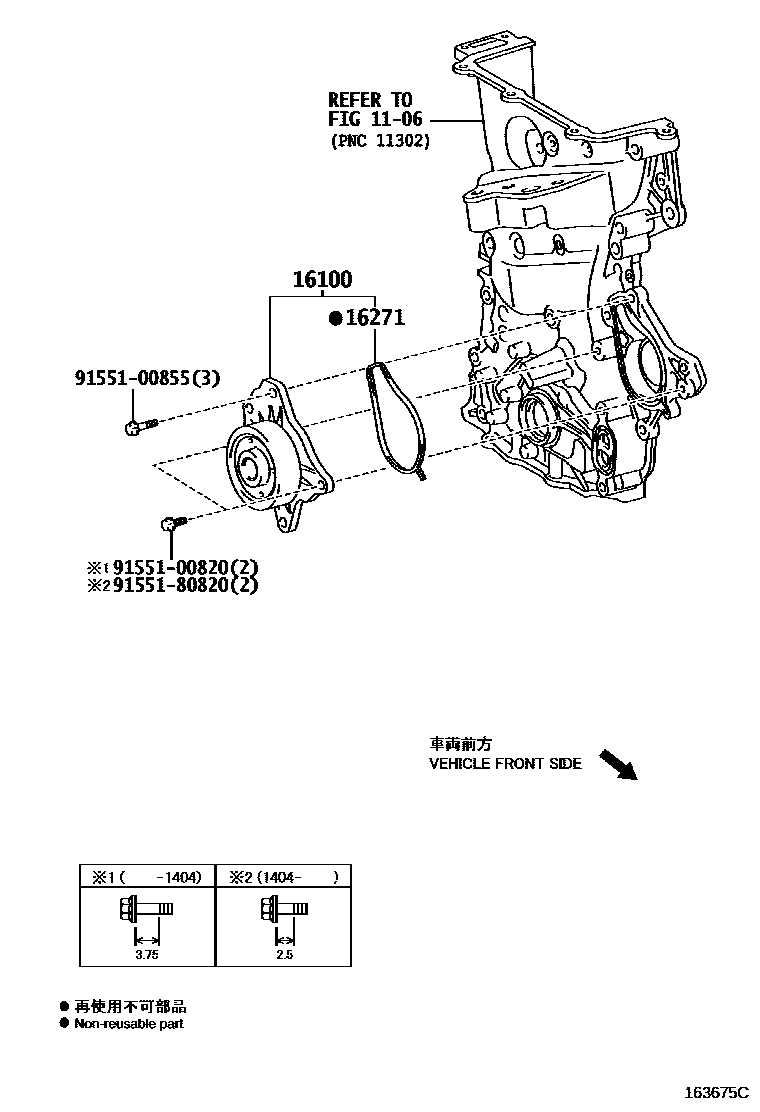

WATER PUMP

0001 1 0002 1 0003 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39535i1NDTV..NUJ10200811-201012

sub16100-39536

main16100-39536i1NDTV..NUJ10201012-201205

main16100-80005i1KRFE..KGJ10200811-201405

main16100-80008i1NRFE..NGJ10200905-201308

sub16100-80011

sub91552-81050

main16100-80011i1NRFE..NGJ10201308-201405

16271GASKET, WATER PUMP

main16271-33040i1NDTV..NUJ10200811-201205

main16271-40020i1KRFE..KGJ10200811-201405

main16271-47040i1NRFE..NGJ10200905-201405

9155100820

main91551-00820

9155100855

main91551-00855

9155180820

main91551-80820

6 parts on this diagram · 3 diagrams in section
