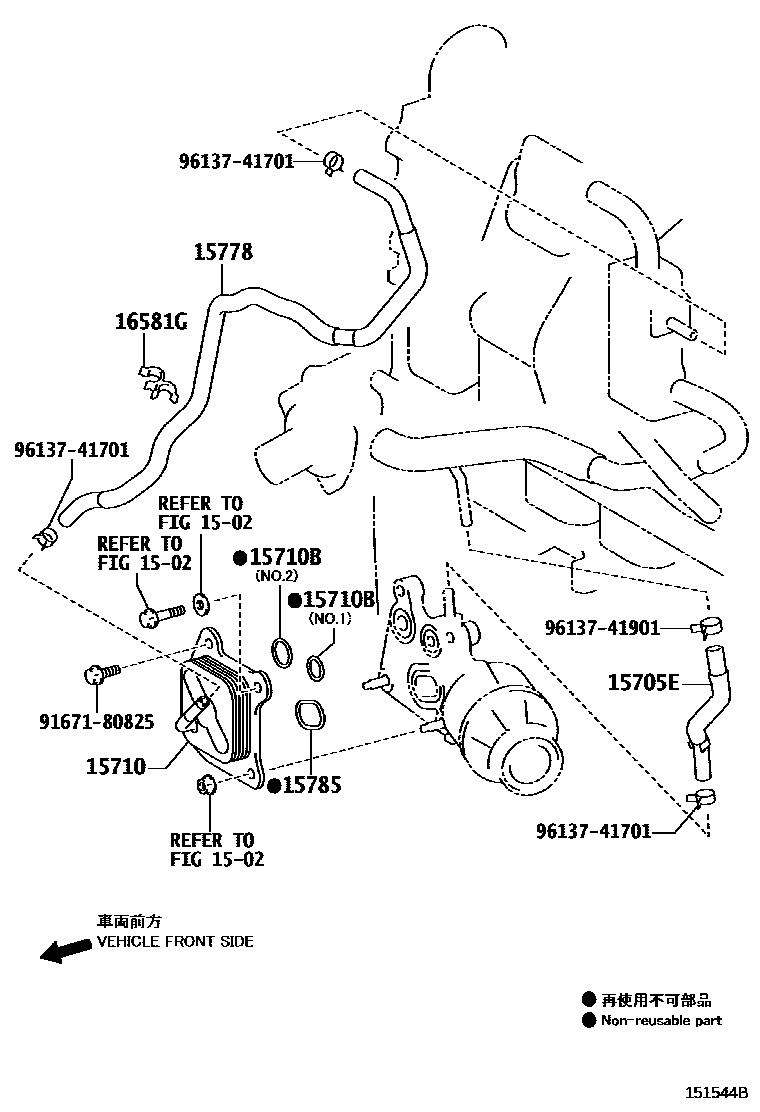

ENGINE OIL COOLER

1502

15705EHOSE SUB-ASSY, OIL COOLER

main15705-33060i1NDTV..NUJ10200811-201205

15710COOLER ASSY, OIL

main15710-33060i1NDTV..NUJ10200811-201205

15710BRING, O(FOR OIL COOLER)

main90301-15009i1NDTV..NUJ10200811-201205

NO.1

main96723-35024i1NDTV..NUJ10200811-201205

NO.2

15778HOSE, OIL COOLER, NO.2

main15778-33020i1NDTV..NUJ10200811-201205

15785GASKET, OIL COOLER

main15785-33020i1NDTV..NUJ10200811-201205

16581GCLAMP, HOSE(FOR OIL COOLER HOSE)

main16581-33080i1NDTV..NUJ10200811-201205

9167180825

main91671-80825

9613741701

main96137-41701

9613741901

main96137-41901

10 parts on this diagram · 1 diagram in section
