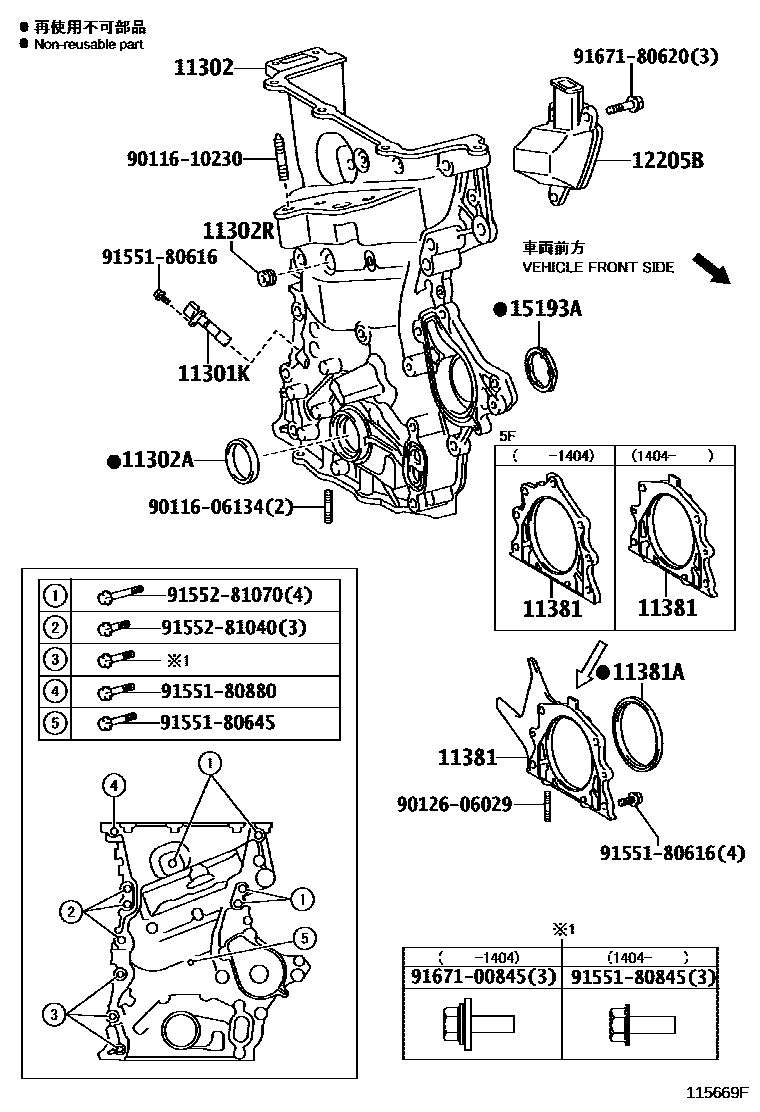

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301KSENSOR, CRANK POSITION

main90919-05062i1KRFE..KGJ10¥3,870200811-201405

main90919-05073i1NRFE..NGJ10¥4,130200905-201405

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-33020i1NDTV..NUJ10200811-201009

main11310-33021i1NDTV..NUJ10201009-201012

sub11310-33022

main11310-33022i1NDTV..NUJ10201012-201205

main11310-40050i1KRFE..KGJ10¥23,400200811-201405

main11310-47020i1NRFE..NGJ10¥50,300200905-200907

sub11310-47021¥50,300

main11310-47021i1NRFE..NGJ10¥50,300200907-201011

sub11310-47022¥50,300

main11310-47022i1NRFE..NGJ10¥50,300201011-201308

sub11310-47023¥50,300

sub91552-81050¥120

sub91671-10825¥80

main11310-47023i1NRFE..NGJ10¥50,300201308-201405

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25021i1NRFE..NGJ10¥310201104-201303

sub90311-25032¥310

main90311-25031i1NRFE..NGJ10¥310200905-201104

main90311-25032i1NRFE..NGJ10¥310201303-201405

main90311-38091i1KRFE..KGJ10¥470200811-200908

sub90311-38092¥400

main90311-38092i1KRFE..KGJ10¥400200908-201405

main90311-40033i1NDTV..NUJ10¥400200811-201205

sub90311-40040¥400

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KRFE..KGJ10¥130200811-201405

11381RETAINER, ENGINE REAR OIL SEAL

main11381-40010i1KRFE..KGJ10..5F¥3,420200811-201402

sub11381-40030¥2,150

main11381-40020i1KRFE..KGJ10..CVFC¥3,940200811-201405

main11381-40030i1KRFE..KGJ10..R¥2,150201402-201405

11381ASEAL, ENGINE REAR OIL

main90311-73002i1KRFE..KGJ10¥960200811-200908

sub90311-73004¥960

main90311-73004i1KRFE..KGJ10¥960200908-201212

sub90311-73005¥960

main90311-73005i1KRFE..KGJ10¥960201212-201405

12205BCASE SUB-ASSY, VENTILATION

main12205-40010i1KRFE..KGJ10¥5,800200811-201405

15193AGASKET, OIL PUMP

main15193-40010i1KRFE..KGJ10¥200200811-201405

9011606134

main90116-06134¥130

9011610230

main90116-10230¥190

9012606029

main90126-06029¥60

9155180616

main91551-80616¥60

9155180645

main91551-80645¥130

9155180845

main91551-80845¥110

9155180880

main91551-80880¥120

9155281040

main91552-81040¥120

9155281070

main91552-81070¥160

9167100845

main91671-00845¥140

9167180620

main91671-80620¥60

19 parts on this diagram · 4 diagrams in section
