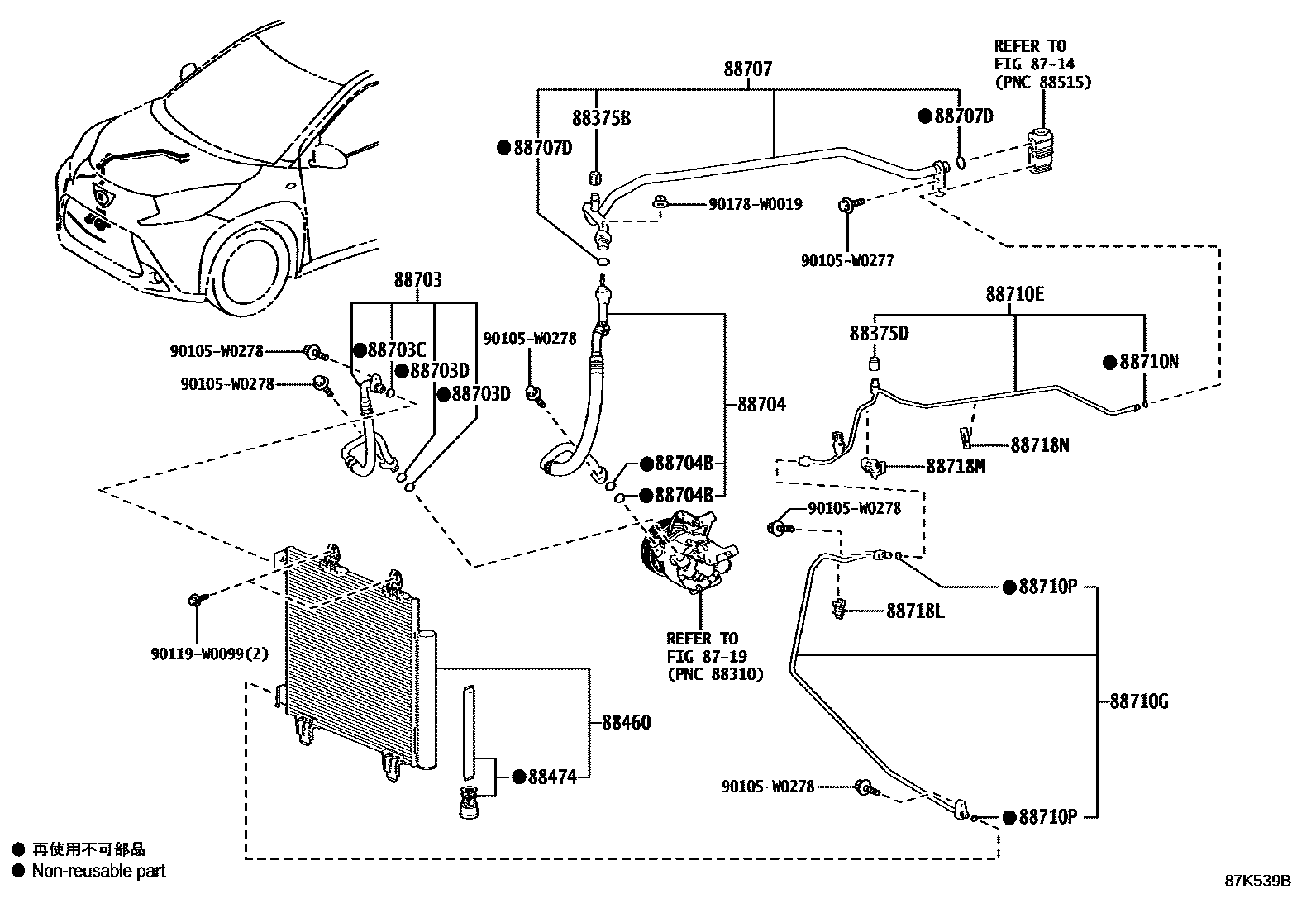

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.9,OD=15.76
88703DRING, O, NO.2(FOR DISCHARGE HOSE)
ID=10.82,OD=14.38
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=16.5,OD=20.06
88707PIPE SUB-ASSY, SUCTION
88707DRING, O(FOR SUCTION TUBE)
ID=13.6,OD=18.46
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.8,OD=10.54
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.8,OD=10.54
88718LCLAMP, PIPING
88718MCLAMP, PIPING
88718NCLAMP, PIPING
90105W0277
main90105-W0277
90105W0278
main90105-W0278
90119W0099
main90119-W0099
90178W0019
main90178-W0019
24 parts on this diagram · 1 diagram in section
