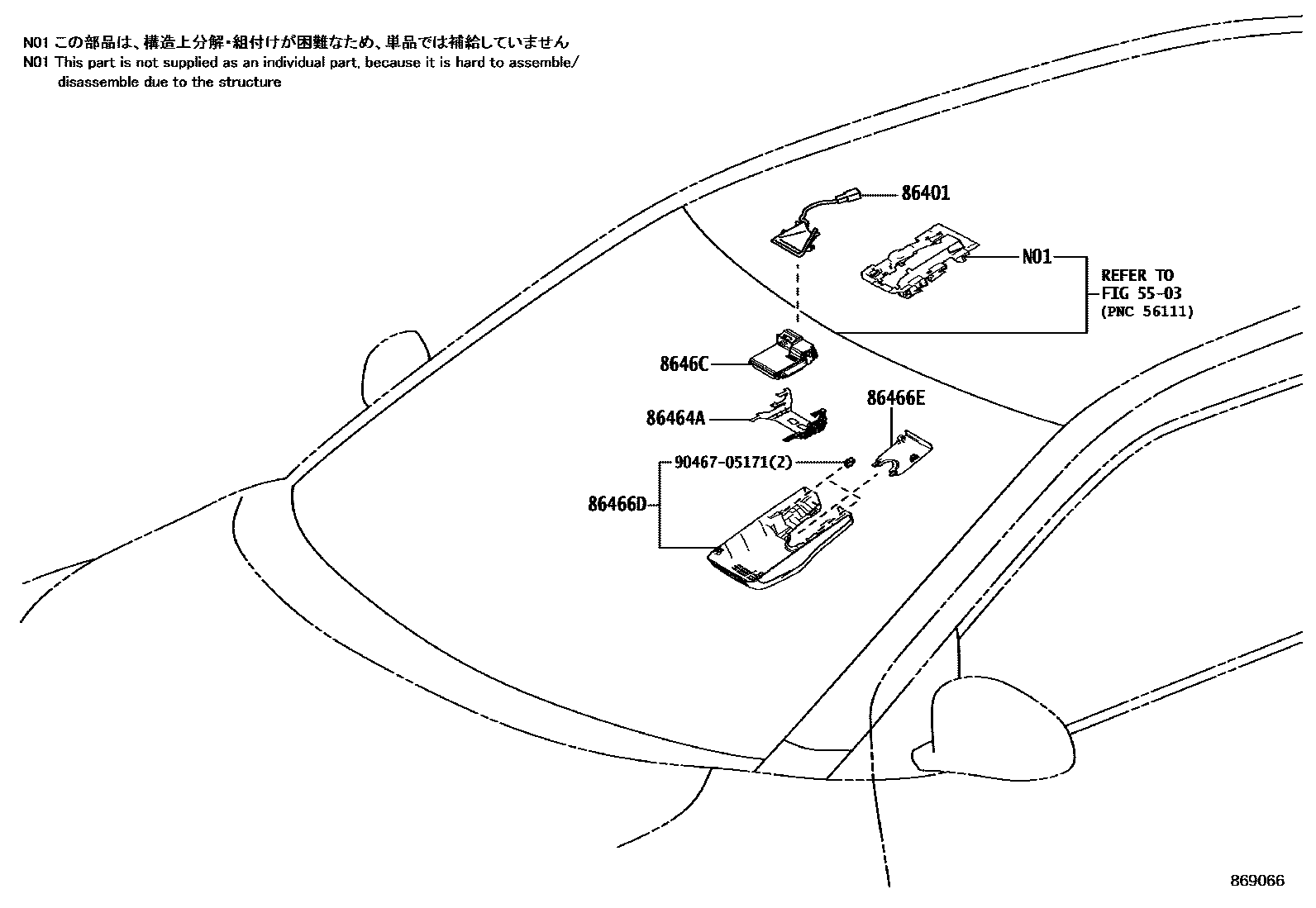

PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-K0010iKGB70..LHD..R202203-202312

86464ALATCH, FORWARD RECOGNITION

main86464-K0010iKGB70..LHD..R202203-202312

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0H010iKGB70..LHD..R202203-202312

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-0H010iKGB70..LHD..R202203-202312

8646CCAMERA, FORWARD RECOGNITION

main8646C-0H010iKGB70202203-202312

*614

main8646C-0H040iKGB70..G,K,N202312

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
