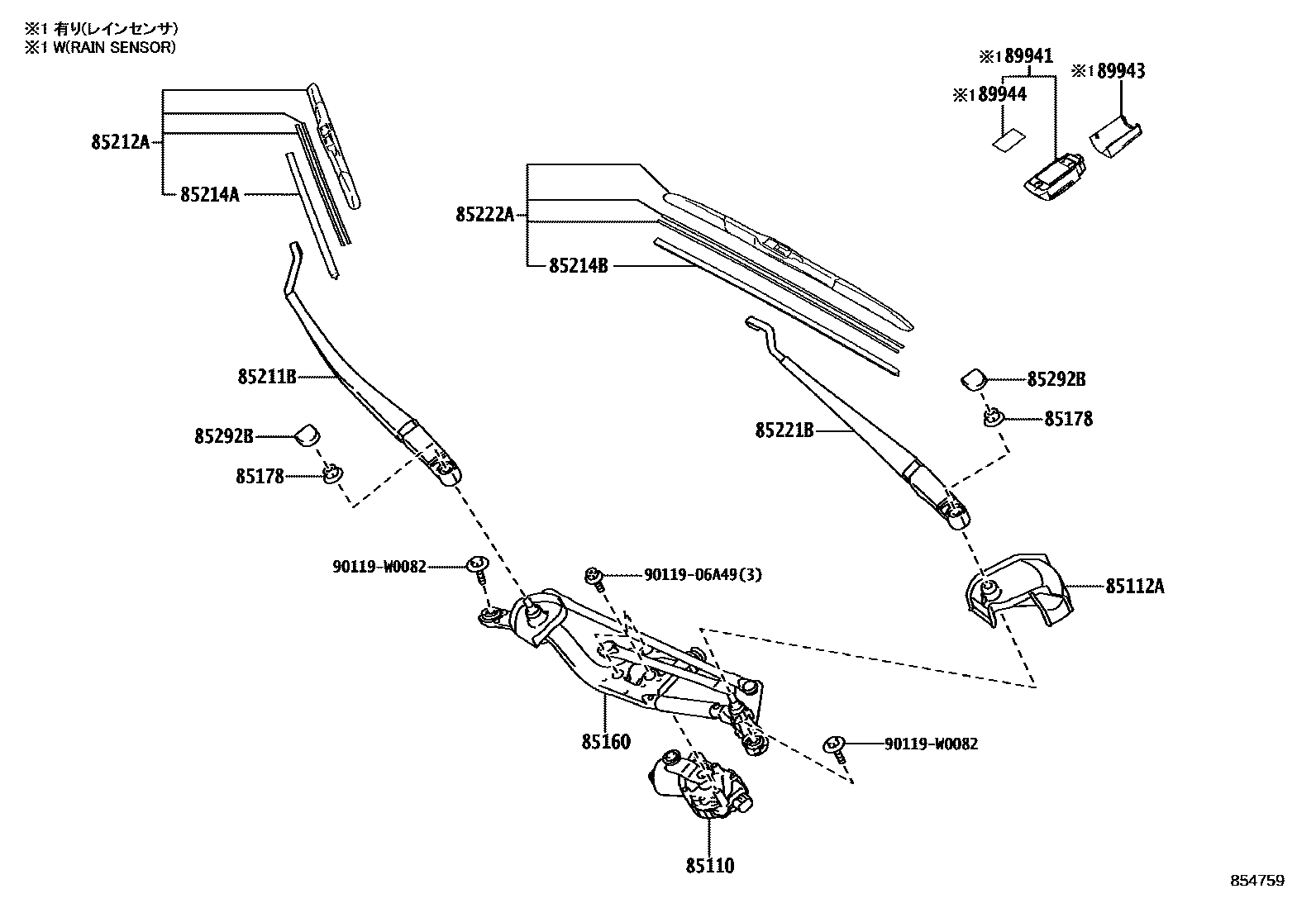

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-K0110iKGB70..RHD202203

main85110-K0120iKGB70..LHD..R202203-202401

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-0D010iKGB70..LHD..R202203-202401

main85112-0D020iKGB70..RHD202203

85160LINK ASSY, WINDSHIELD WIPER

main85150-K0030iKGB70..LHD..R202203-202401

main85150-K0040iKGB70..RHD202203

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iKGB70..RHD;KGB70..LHD..(G,K,N)202203

85211BARM, FRONT WIPER, RH

main85211-K0020iKGB70..LHD..R202203-202401

main85211-K0030iKGB70..RHD202203

85212ABLADE, FR WIPER, RH

main85212-K0020iKGB70..LHD..R202203-202401

main85212-K0030iKGB70..RHD202203

85214ARUBBER, WIPER, RH

main85214-28090iKGB70..LHD..R202203-202401

main85214-30380iKGB70..RHD202203

85214BRUBBER, WIPER, LH

main85214-28090iKGB70..RHD202203

main85214-30380iKGB70..LHD..R202203-202401

85221BARM, FRONT WIPER, LH

main85221-K0020iKGB70..LHD..R202203-202401

main85221-K0030iKGB70..RHD202203

85222ABLADE, FR WIPER, LH

main85222-K0020iKGB70..LHD..R202203-202401

main85222-K0030iKGB70..RHD202203

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010×2iKGB70..LHD..R202203-202401

89941SENSOR, RAIN

main89941-0D040iKGB70..G202212

89943COVER, RAIN SENSOR

main89943-30010iKGB70..G202212

89944TAPE, RAIN SENSOR

main89944-42020iKGB70..G202212

9011906A49

main90119-06A49

90119W0082

main90119-W0082

16 parts on this diagram · 2 diagrams in section
