ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

89661COMPUTER, ENGINE CONTROL

main89661-0H620iKGB70..R202312-202403

BOSCH,*614

main89661-0H640iKGB70..CVT202312-202403

BOSCH,*614

main89661-0H660iKGB70..5F..(G,K,N)202403

BOSCH,*614

main89661-0H670iKGB70..CVT202403

BOSCH,*614

main89661-0H850iKGB70..5F202203-202312

BOSCH,*614

main89661-0H860iKGB70..CVT202203-202312

BOSCH,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-K0010iKGB70..LHD..R202203-202401

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0H030iKGB70..LHD..R202203-202401

9015350015

main90153-50015

90178W0019

main90178-W0019

9043012221

main90430-12221

9415180600

main94151-80600

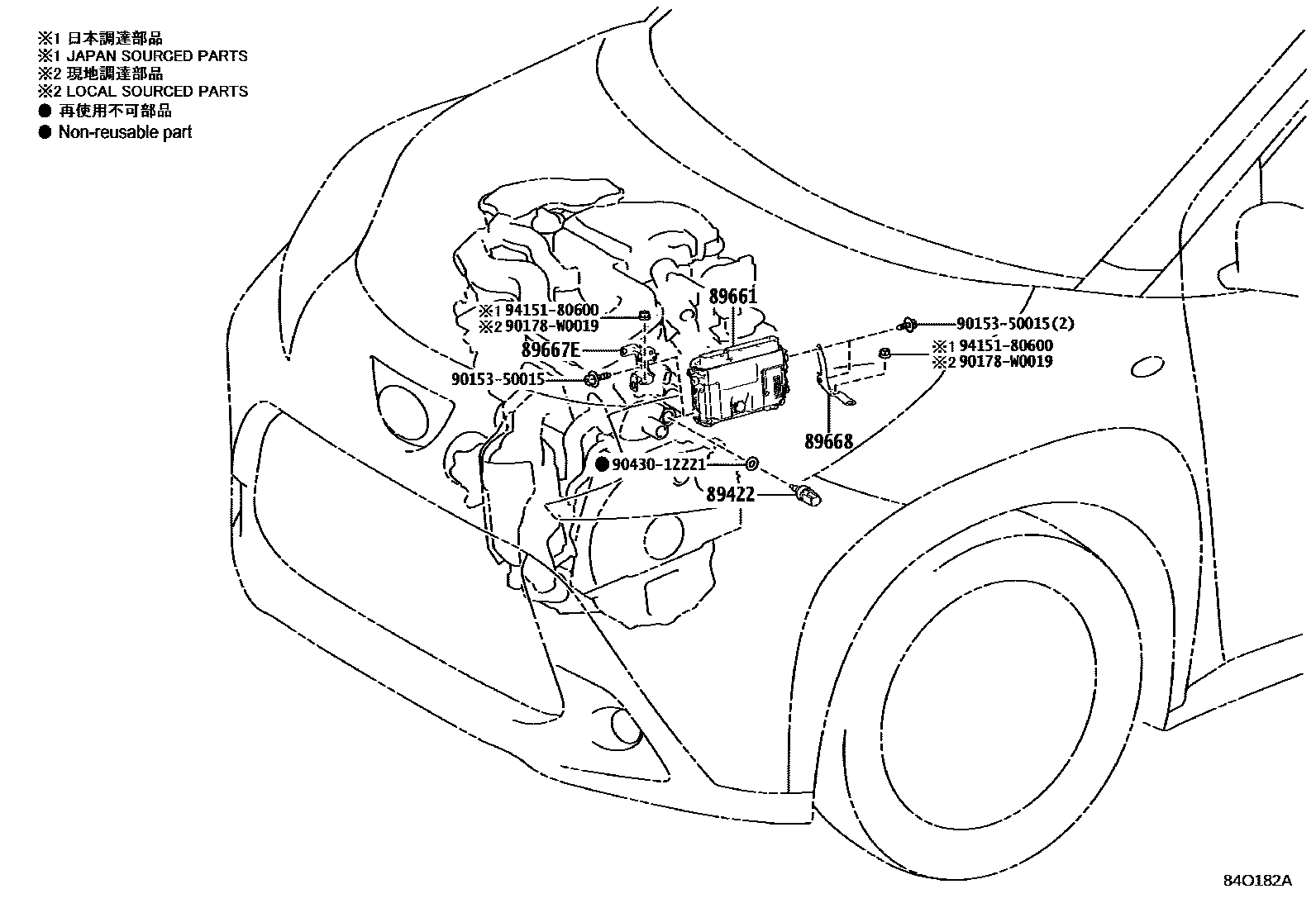

8 parts on this diagram · 1 diagram in section
