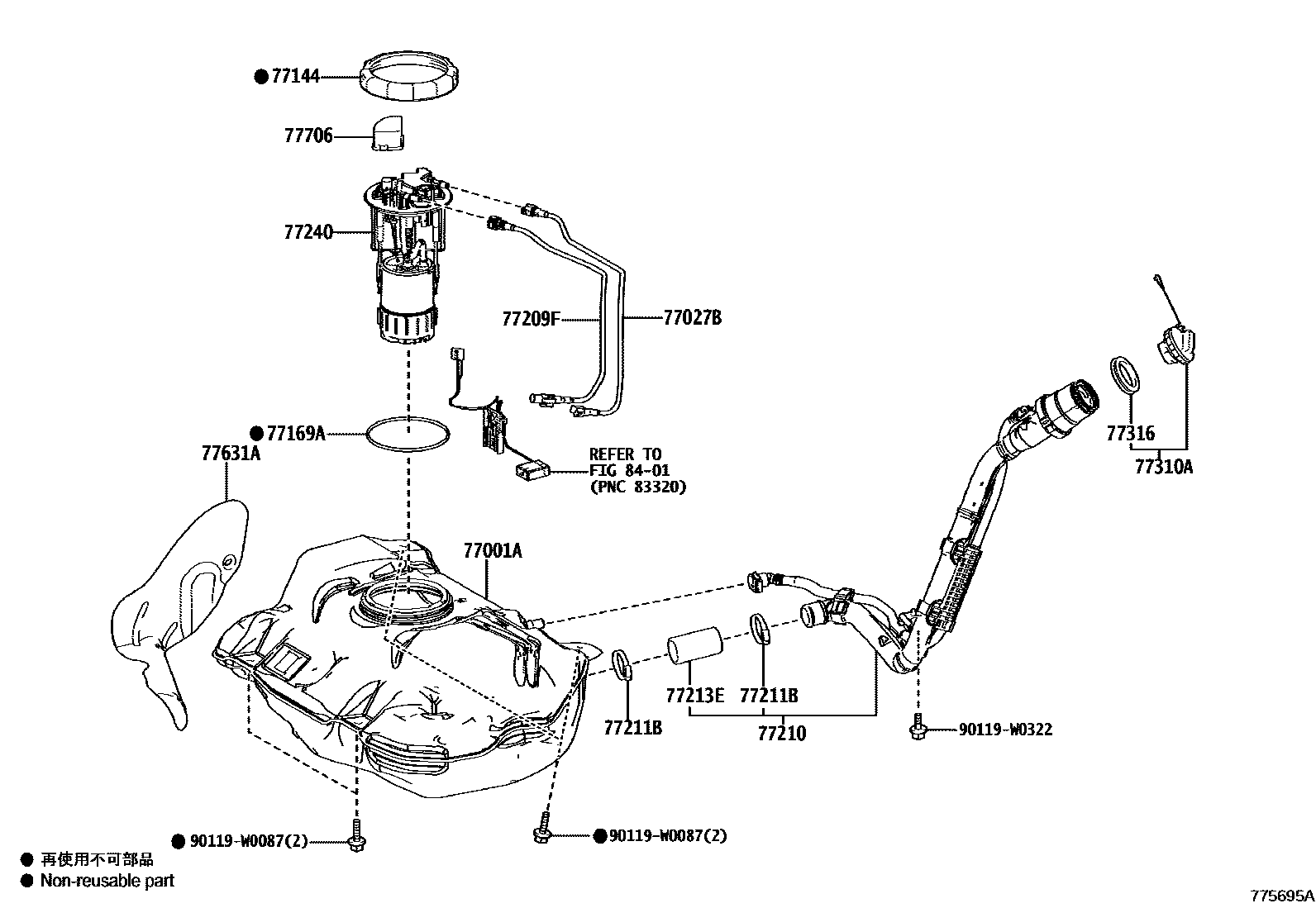

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER 0004 1FUEL LID OPENER

77001ATANK SUB-ASSY, FUEL

main77001-0H070iKGB70202203-202207

sub77001-0H071

sub77144-02110¥2,640

main77001-0H071iKGB70..R202207-202211

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-0H020iKGB70..R202203-202211

77144RETAINER, FUEL PUMP GAUGE

main77144-02110iKGB70..R¥2,640202207-202211

main77144-0H010iKGB70¥2,490202203-202207

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0H010iKGB70..R¥240202203-202211

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0H030iKGB70..R202203-202211

77210PIPE ASSY, FUEL TANK FILLER

main77210-0H060iKGB70..G,K,N202203-202211

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-50008iKGB70..R¥240202203-202211

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-0H040iKGB70..R202203-202211

77240TUBE ASSY, FUEL SUCTION

main77240-0H030iKGB70..R202203-202211

77310ACAP ASSY, FUEL TANK

main77300-12020iKGB70..R¥1,660202203-202211

77316GASKET, FUEL TANK CAP

main77316-52040iKGB70..R¥230202203-202211

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-0H010iKGB70..R202203-202211

77706FILTER SUB-ASSY, CHARCOAL CANISTER

main77706-0H020iKGB70..R202203-202211

8401

90119W0087

main90119-W0087

90119W0322

main90119-W0322

16 parts on this diagram · 4 diagrams in section
