SEAT BELT & CHILD RESTRAINT SEAT

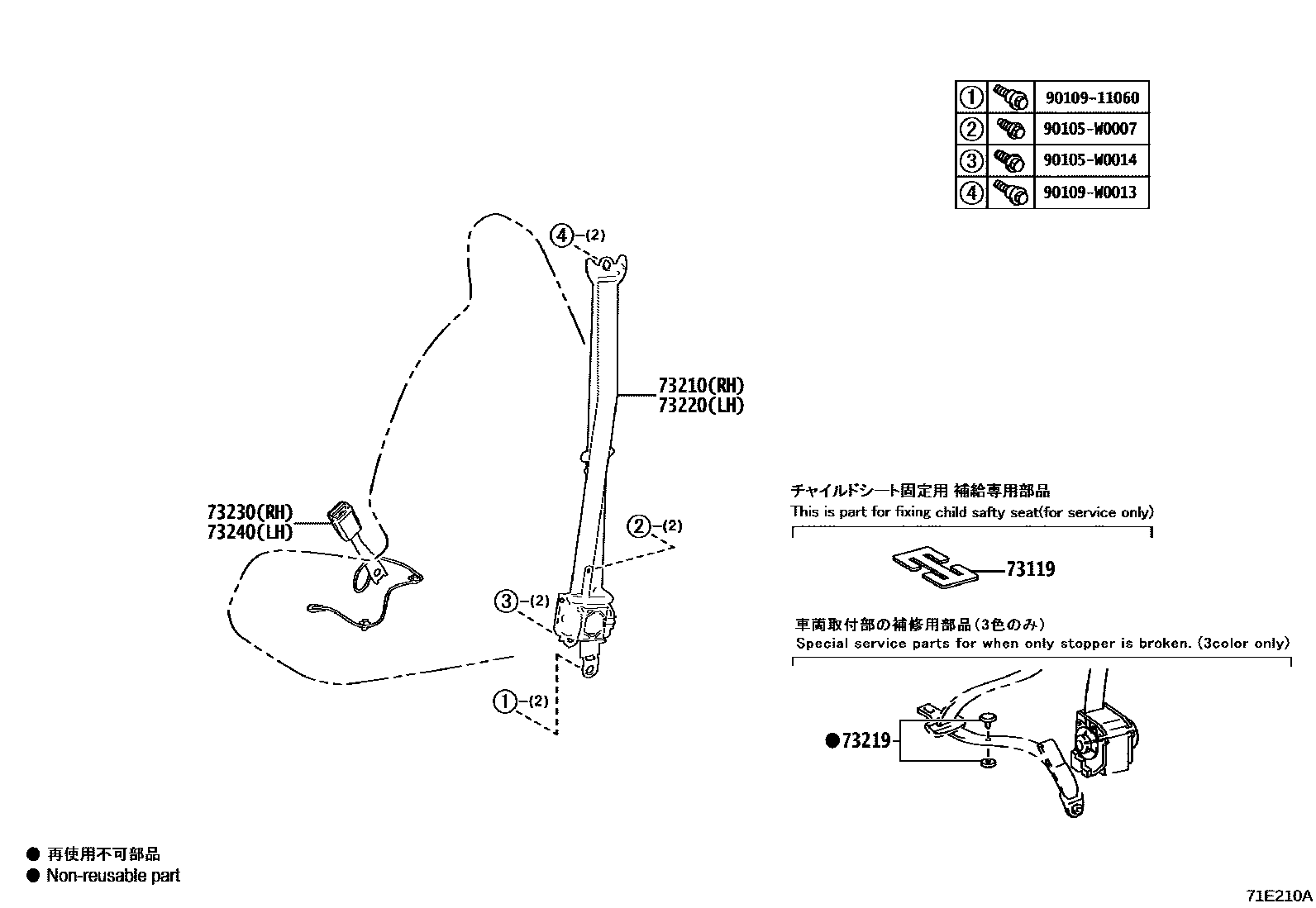

Parts diagram

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010i202203-202401

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0H050-C0i202203-202208

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main73210-0H050-C0i202203-202208

BLACK,TRIM2#

main73210-0H050-C0i202203-202208

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main73210-0H051-C0i202209

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main73210-0H051-C0i202209-202401

BLACK,TRIM2#

main73210-0H051-C0i202209

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

73219STOPPER, TONGUE PLATE

main73219-33010i202203-202401

BLACK

main73219-33020i202203-202401

GRAY

main73219-33030i202203-202401

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0H050-C0i202203-202208

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main73220-0H050-C0i202203-202208

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main73220-0H050-C0i202203-202208

BLACK,TRIM2#

main73220-0H051-C0i202209-202401

BLACK,TRIM2#

main73220-0H051-C0i202209

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main73220-0H051-C0i202209

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0H070-C0i202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main73230-0H070-C0i202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main73230-0H070-C0i202203

BLACK,TRIM2#

main73230-0H080-C0i202203-202401

BLACK,TRIM2#

main73230-0H080-C0i202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main73230-0H080-C0i202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0H070-C0i202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main73230-0H070-C0i202203-202401

BLACK,TRIM2#

main73230-0H070-C0i202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main73230-0H080-C0i202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main73230-0H080-C0i202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main73230-0H080-C0i202203

BLACK,TRIM2#

90105W0007

main90105-W0007

90105W0014

main90105-W0014

9010911060

main90109-11060

90109W0013

main90109-W0013

10 parts on this diagram · 2 diagrams in section
