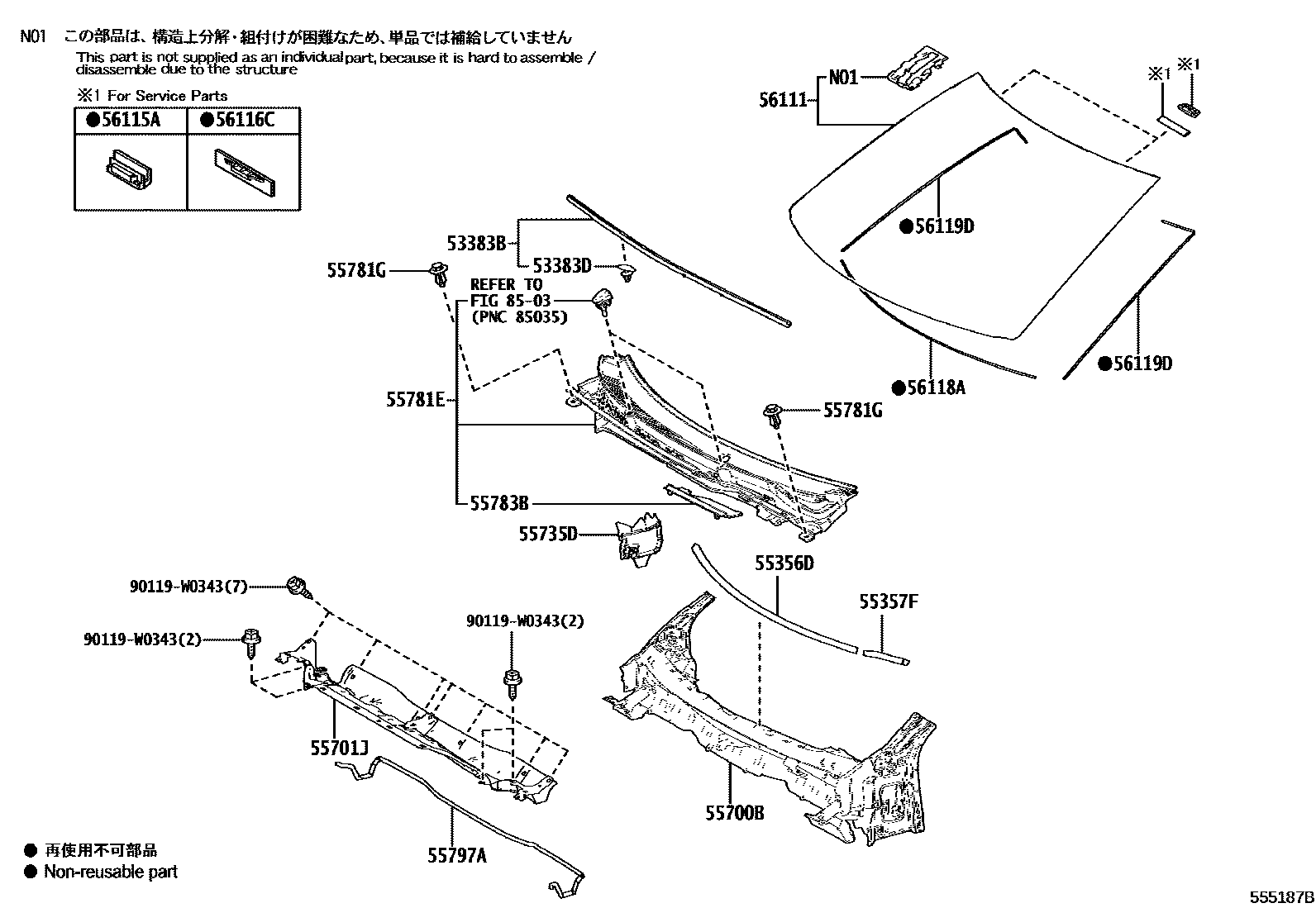

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-0H040iKGB70..LHD..R202203-202401

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iKGB70..LHD..R202203-202401

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-K2010iKGB70..LHD..R202203-202401

55357FCUSHION, INSTRUMENT PANEL, NO.3

main55357-0H020iKGB70..LHD..R202203-202401

55700BCOWL ASSY

main55700-0H080iKGB70..LHD..R202203-202401

main55700-0H090iKGB70..RHD202203

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0D250iKGB70..LHD..(G,K,N)202203-202401

sub55701-0D210

main55701-0H090iKGB70..RHD202203

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-0H030iKGB70..RHD202203

main55735-0H040iKGB70..LHD..R202203-202401

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0H150iKGB70..LHD..(G,K,N)202203-202408

main55708-0H151iKGB70..LHD..(G,K,N)202409

main55708-0H160iKGB70..RHD202203-202408

main55708-0H161iKGB70..RHD202409

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7iKGB70..LHD..R202203-202401

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-0H070iKGB70..LHD..(G,K,N)202203-202408

main55783-0H071iKGB70..LHD..(G,K,N)202409

main55783-0H080iKGB70..RHD202203-202408

main55783-0H081iKGB70..RHD202409

55797ASEAL, COWL WATER EXTRACT

main55797-K0010iKGB70..LHD..R202203-202401

56111GLASS, WINDSHIELD

main56101-0H090iKGB70..LHD..R202203-202401

main56101-0H110iKGB70..LHD..G202212

main56101-0H120iKGB70..RHD..G202212

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iKGB70..LHD..R202203-202401

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iKGB70..LHD..R202203-202401

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-50140iKGB70..LHD..R202203-202401

L=2000(*D,L=1234)

main56117-50140iKGB70..RHD;KGB70..LHD..(G,K,N)202203

L=2000(*D,L=1234),INTERMITTENT WIPER-WITH(RAIN SENSOR & MIST)

56119DDAM, WINDOW GLASS ADHESIVE, NO.3

main56117-50140iKGB70..LHD..R202203-202401

L=2000(*D,L=869)

main56117-50140iKGB70..RHD;KGB70..LHD..(G,K,N)202203

L=2000(*D,L=869),INTERMITTENT WIPER-WITH(RAIN SENSOR & MIST)

8503

90119W0343

main90119-W0343

18 parts on this diagram · 2 diagrams in section
