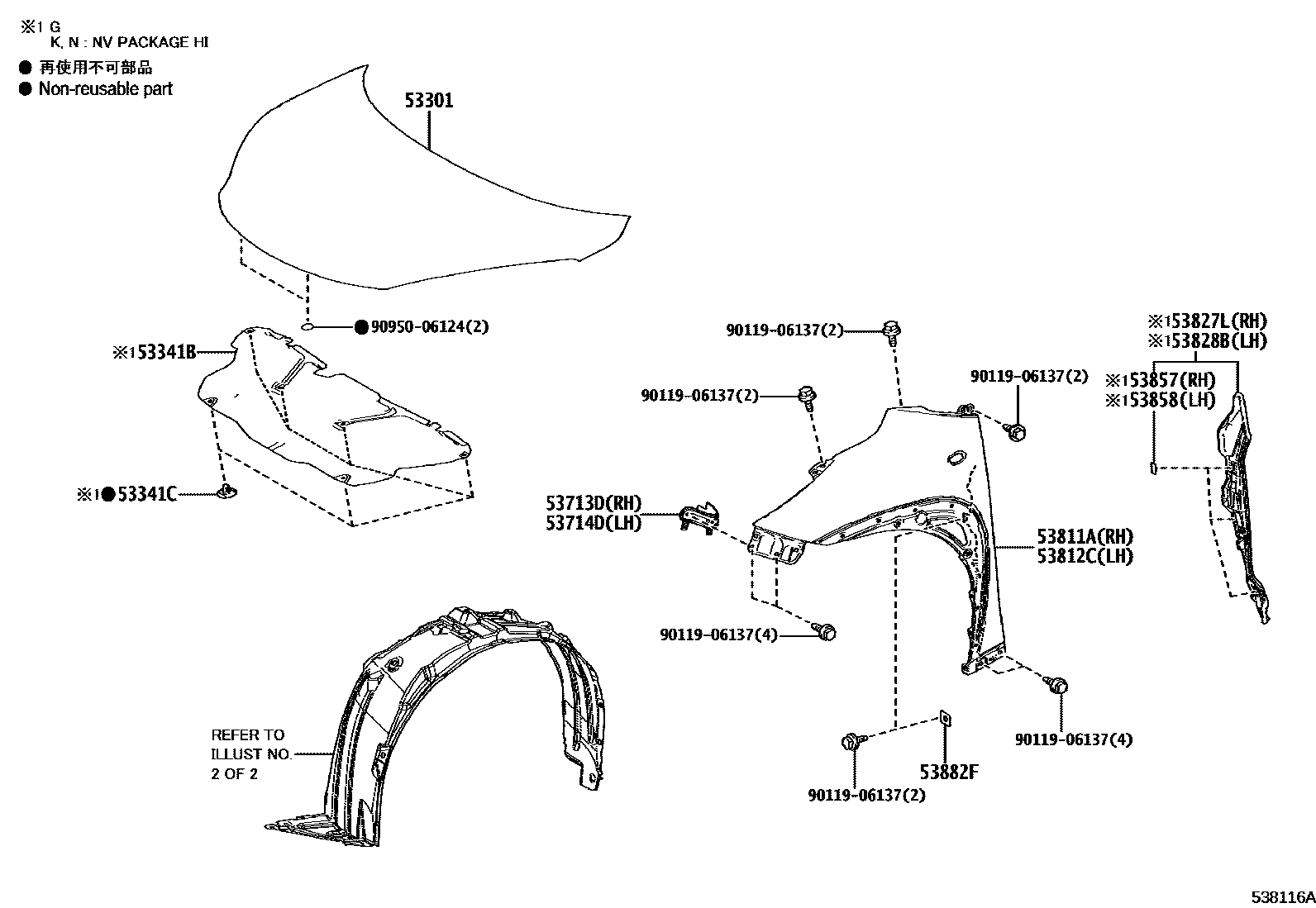

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0H100iKGB70..LHD..R202203-202401

53341BINSULATOR, HOOD

main53341-0H070iKGB70..G202203

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iKGB70..G202203

53713DEXTENSION, FRONT FENDER APRON, RH

main53713-0H020iKGB70..LHD..R202203-202401

53714DEXTENSION, FRONT FENDER APRON, LH

main53714-0H020iKGB70..LHD..R202203-202401

53811APANEL, FRONT FENDER, RH

main53811-0H060iKGB70..LHD..R202203-202401

53812CPANEL, FRONT FENDER, LH

main53812-0H060iKGB70..LHD..R202203-202401

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0H050iKGB70..G202203

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0H050iKGB70..G202203

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iKGB70..G202203

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iKGB70..G202203

53882FSEAL, FRONT FENDER

main53882-16030iKGB70..LHD..R202203-202401

9011906137

main90119-06137

9095006124

main90950-06124

14 parts on this diagram · 2 diagrams in section
