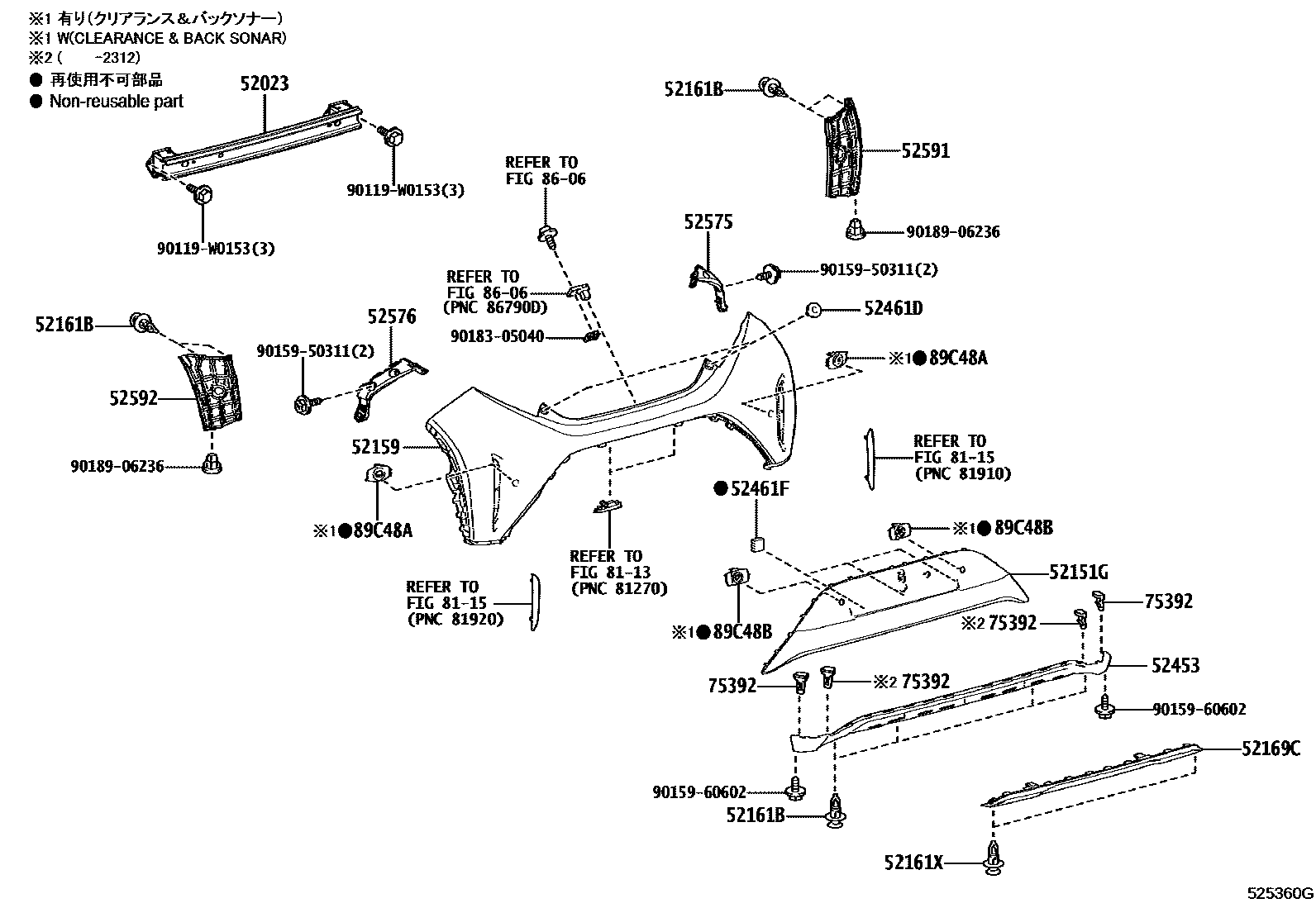

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52151GEXTENSION, REAR BUMPER
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)
PAINT REQ.,TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
PAINT REQ.
PAINT REQ.,TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)
PAINT REQ.,TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
PAINT REQ.
PAINT REQ.,TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)
52161BPIECE, REAR BUMPER
(L)
52161XPIECE, REAR BUMPER
(L)
TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD),(L)
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)
52453GUARD, REAR BUMPER, CENTER
TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)
TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)
TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
TIRE & DISK WHEEL-175/60R18 5J ALUMINUM(RD)
52461DCUSHION, REAR BUMPER
52461FPAD, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
8113
8115
8606
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
BLACK MC.,2TY ,2UP ,2VH ,2VJ ,2VK ,2VL ,2VN ,M14
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CELESTITE GRAY ME.,2UP ,2ZY
SCARLET ME.,2VH
BEIGE ME.,2VJ
URBAN KHAKI,2VN
JUNIPER BLUE M.M.,2VL
LT.PURPLE M.M.,M14
90119W0153
main90119-W0153
9015950311
main90159-50311
9015960602
main90159-60602
9018305040
main90183-05040
9018906236
main90189-06236
24 parts on this diagram · 4 diagrams in section
